Fixed Mount Barcode Scanner Module Mobiele betaling

Fixed Mount Barcode Scanner Module Mobiele betaling

$651-199 Others

$55200-999 Others

$45≥1000Others

betaling Type:	L/C,Western Union,D/P,T/T,Paypal,MoneyGram
Incoterm:	FOB,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express
Haven:	guangzhou

Option:

WGI-3220

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WGI-3220

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD, CMOS

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Private Mold: Yes

Products Status: Stock

Type: Mini Scan Engine

Scan Element Type: Cmos

Colour Depth: 32 Bit

Interface Type: usb, SCSI, IEEE 1394, COM, PS/2, Other

Max Paper Size: N/A

Optical Resolution: 1280X800 pixels

Scan Speed: 60fps

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Color: Black

Naam van product: Mini Scan Engine

Interface: RS-232/USB HID KEYBOARD/USB VCP

Voltage Requirement: DC 5V±10%

Current Consumption: Max :250mA

Photo Sensor: CMOS array sensor

Operating Temperature: -20°to 65°C /5 to 90%

Storage Temperature: -30°to 70°C /5 to 90%

Seismic Capacity: 1.5 meters crop down to the concrete floor

certificaat: Ce

Verpakking & Levering

Verkoopeenheden	:	piece
Pakkettype	:	Aangepast/OEM

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

product beschrijving

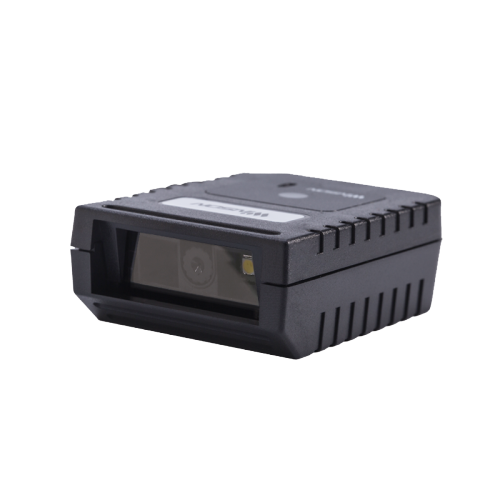

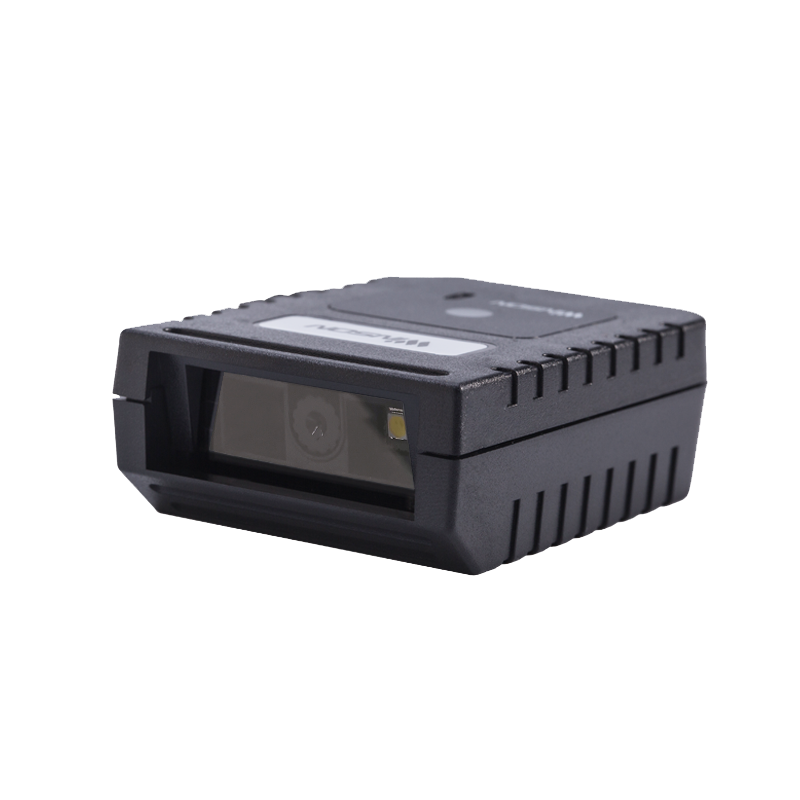

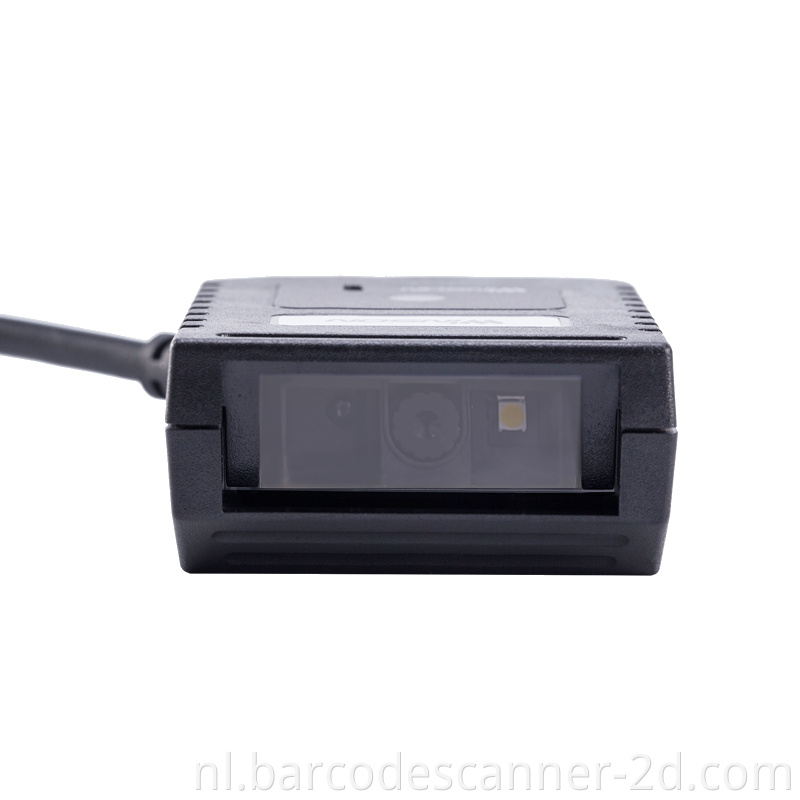

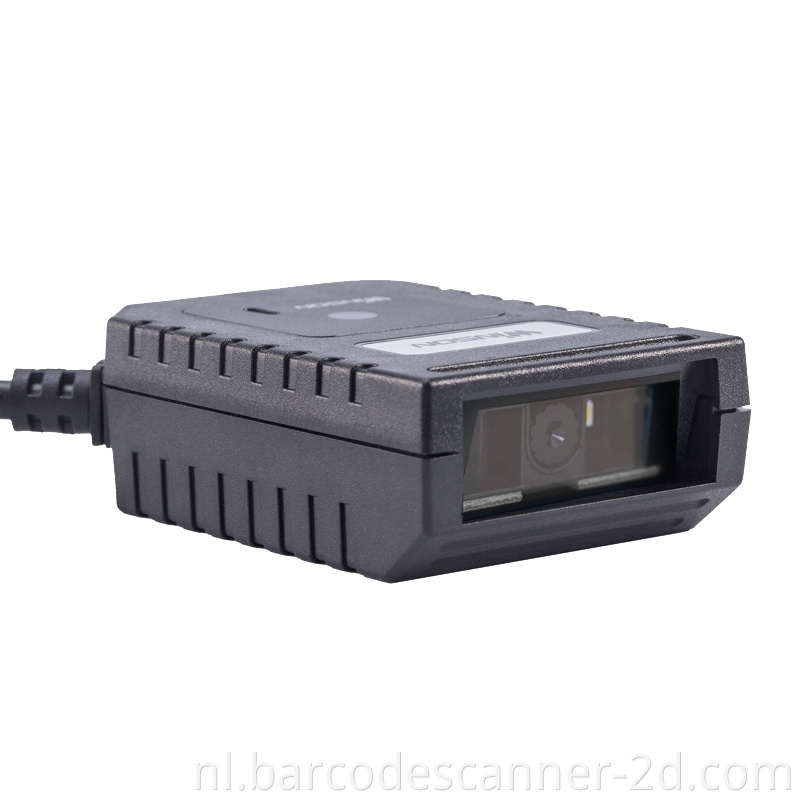

Fixed Mount Barcode Scanner Module Mobile Payment

Specificatie

Interface Supported	USB HID KEYBOARD/USB VCP or RS-232
Input Voltage	DC 5V±10%
Current	<320mA
Image Sensor	CMOS Array Sensor
Sensor Resolution	640 X 480 Pixels
Light Source	White LED
Aim Light Source	Green Bar LED
Scanning Angle	Pitch angle:±50°;Skew angle:±50°;Tilt angle:±180°
Field of View	38°(H),28.9°(V)
Min Resolution	1D ≥ 0.050mm/2mil(PCS 0.9) 2D ≥ 0.076mm/3mil(PCS 0.9)
Min .PCS value	〉20% UPC/EAN 13（13mil）
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	1D:JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET 2D: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code
Dimensions	42mm40mm32mm(LWH)
Temperature	0°∽50°C / 32°∽122°F(operation) /-10°∽60°C /14°∽140°F(storage)
