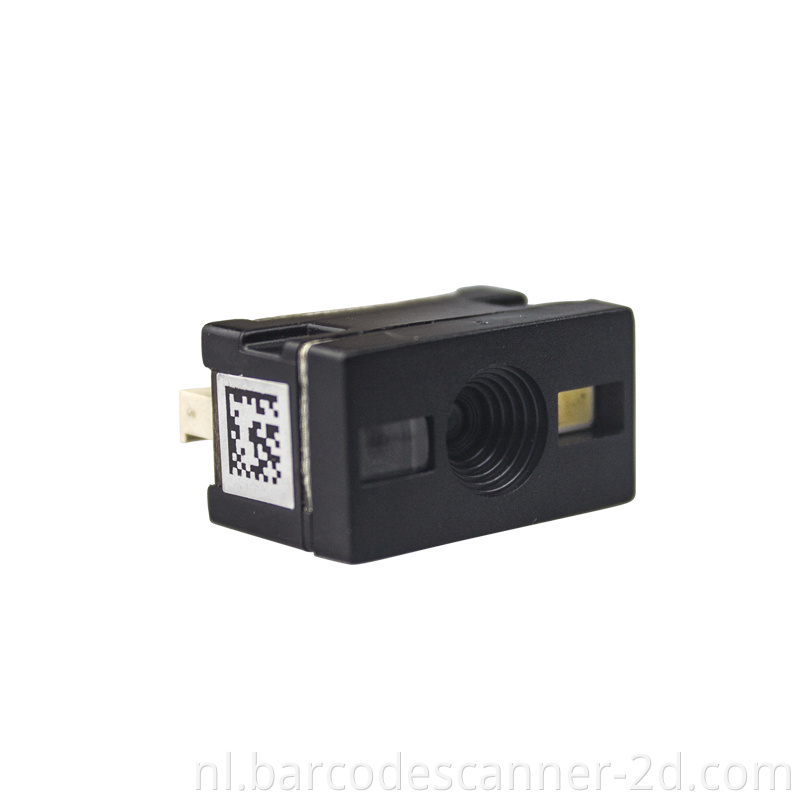

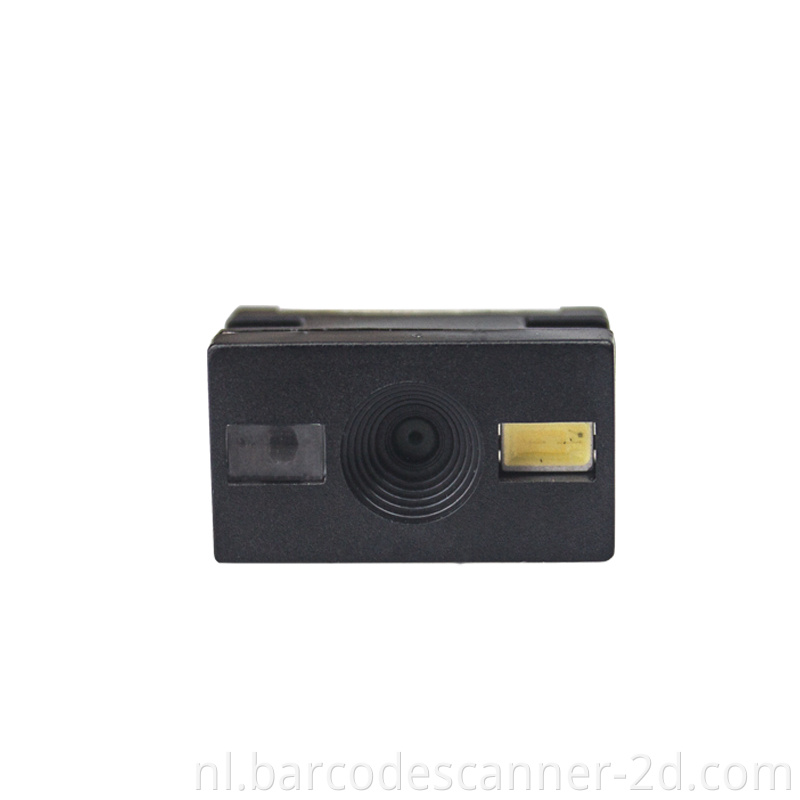

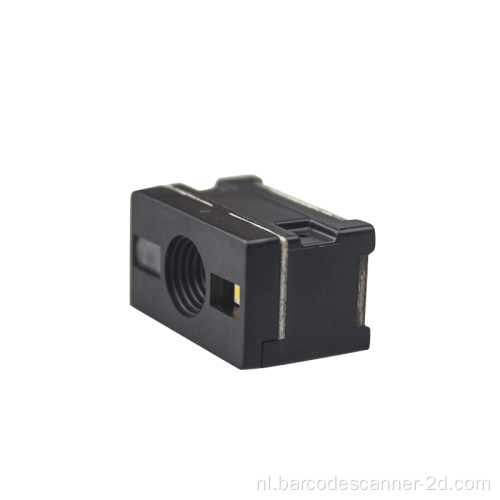

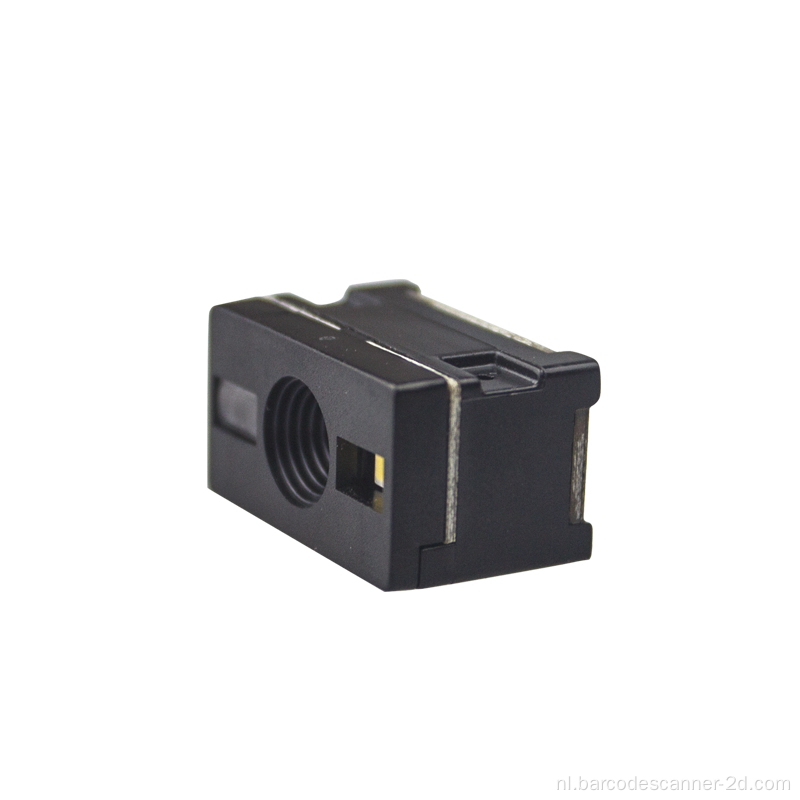

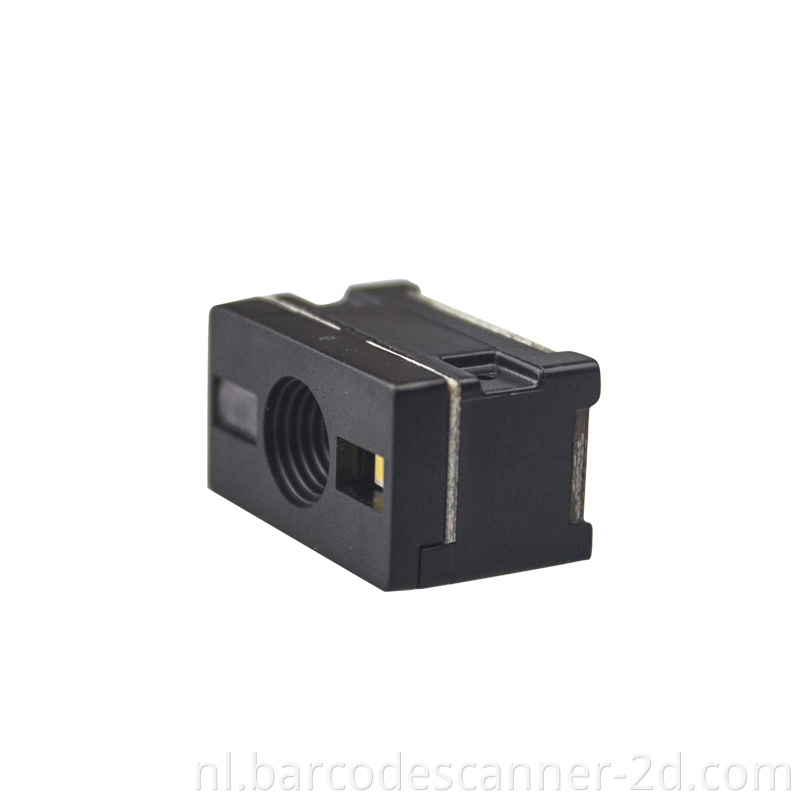

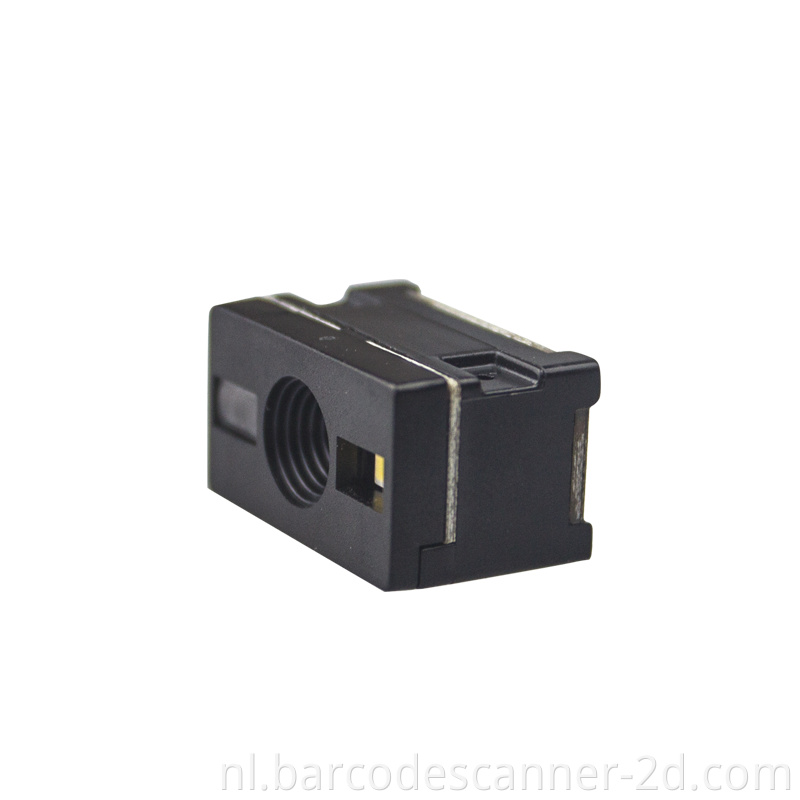

Vast gemonteerde ingebedde barcodescanner

Vast gemonteerde ingebedde barcodescanner

$401-199 Others

$35200-999 Others

$30≥1000Others

betaling Type:	L/C,Western Union,D/P,T/T
Incoterm:	FOB,EXW,DDP
vervoer:	Ocean,Land,Air,Express
Haven:	GUANGZHOU

Option:

WDI2000

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WDI2000

merk: Winson

Certificatie: ce, andere

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CMOS

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Private Mold: Yes

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 32 Bit

Interface Type: usb, Other

Max Paper Size: N/A

Optical Resolution: 648*488 pix

Scan Speed: 350±50 (scans/second)

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Color: Black

Connector: 0.5-12P FPC

Interface: TTL-232/USB

Photo Sensor: CMOS array sensor

Voltage / Current: DC 3.5V±5%; Max 135ma

Sensor Resolution: 648*488 pixels

Print Contrast: >25%UPC/EAN 13(13mil)

Compatibility: Win OS/Mac OS/Linux/Android/IOS/Embedded OS

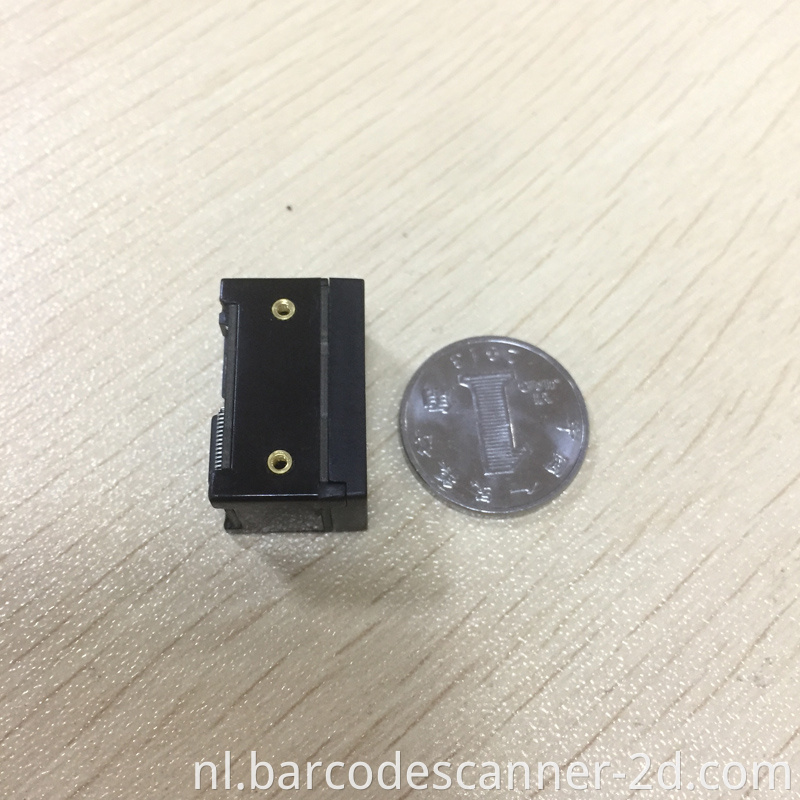

Dimensions (W X D X H): 22mm x 12mm x 17mm(0.83in x 0.47in x 0.67in)

certificaat: Ce,Rohs

Verpakking & Levering

Verkoopeenheden	:	piece
Pakkettype	:	Aangepast/OEM

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

Ondersteuning van de secundaire ontwikkeling - De instructie van de seriële poortontwikkeling is voltooid om te voldoen aan elke soort interactieve vraag van hostcomputerbeheersing.

Bekijk meer >> aanbevolen door verkoper

product beschrijving

Specificatie

Interface	TTL-232/USB
Interface connector	0.5-12P FPC
Voltage requirement	DC 3.3V±5%
Photo sensor	CMOS array sensor
Current consumption	Max:135mA
SENSOR RESOLUTION	648X488 pixels
light source	white LED*1
Aim light source	Red Bar LED
Scan Rate	30fps
Decode angle	Pitch angle:±65° Skew angle:±60° Tilt angle:±180°
Min resolution	1D:5mil(0.127mm)
Min.PCS value	〉30%UPC/EAN 13（13mil）
Field of View	34°(H),26°(V)
Language	multiple languages
Identification	1D：UPC/EAN,Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI，GS1 Databar 2D：QR，PDF417，Data Matrix

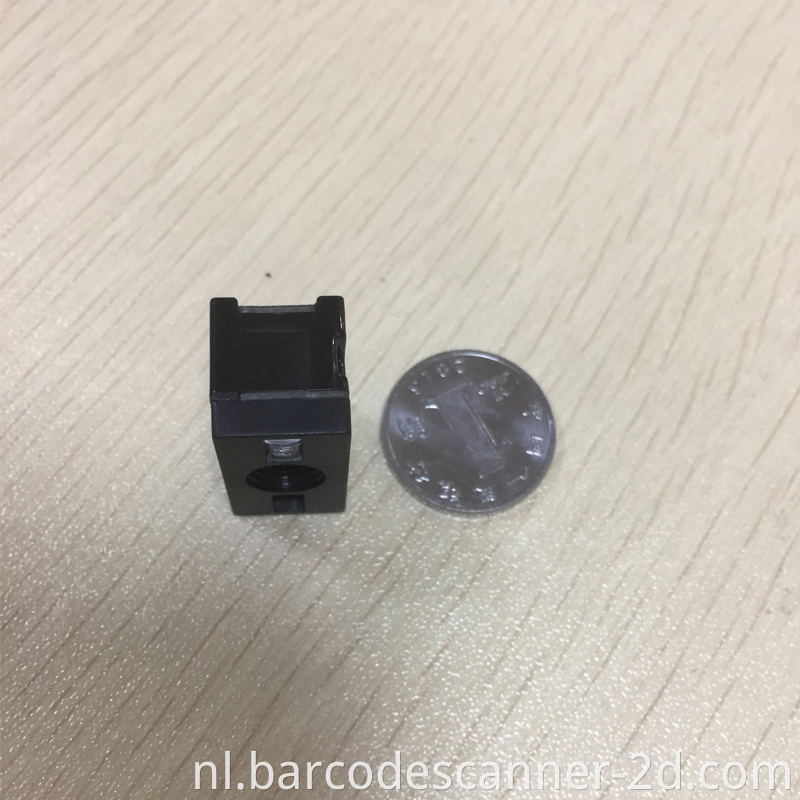

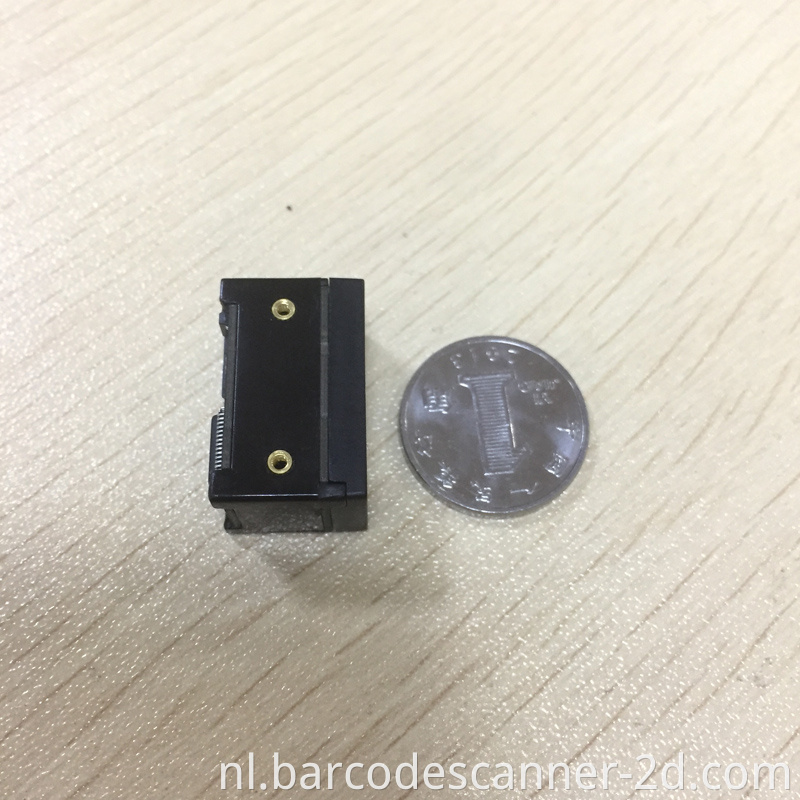

Dimensions	22mm x 12mm x 17mm(LWH)
Electrical Safety	UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed.
