Winson WNC-6094/V NIEUW PRODUCT CCD Arduino Barcode Scanner 15m draadloze verbindingsscanner
Functies
|
1.Winson WNC-6093/V Logistics CCD Barcode Scanner Wireless Code Reader Micro USB Scanner Qr Code Scanner Module
|
|
2.Support read 1d barcode,silver paper with reflective material,and barcode surface with water and ice Bar Code Scanner.
|
|
3.Support multiple keyboard language:USA, Germany, French, Italy, Spanish, Turkey and so on Ccd Barcode Scanner
|
|
d data...
|
|

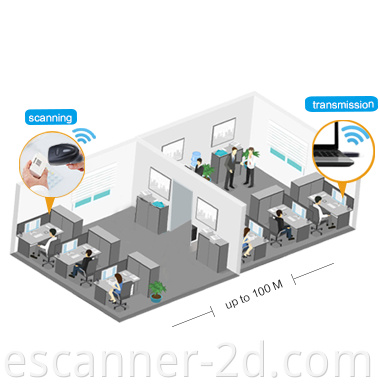

Wireless transmission
The transmission range up to 15 meters (In empty area).
Superior reading performance
32-bit CPU, scanning code speed up to 360 scans per second.
|
|
|
|
|
2000 mAh lithium battery
Supports 12 hours continuous normal manual trigger
working,compatible with wire and wireless working mode.
|
Mechanical Shock
After 1.8m drop onto concrete surface, still work as usual,shockproof and Anti-broken.
|
Product detail
|
Technical Specifications
|
|
Wireless specifications
|
|
Communication mode
|
Wireless Read-time mode/Cache mode
|
|
Communication frequency
|
BT 4.2
|
|
Transmission range
|
≤10M(In empty area 15M )
|
|
Battery capacity
|
2000mAh (Lithium battery)
|
|
Charge Time from Empty to Full Charge
|
4.5H
|
|
Scans per Battery Charge
|
30,000 (1 scan per second)
|
|
Memory
|
100,000@13Byte barcode
|
|
Electrical Characteristics
|
|
Interface Supported
|
USB HID KEYBOARD/USB VCP
|
|
Input Voltage
|
DC 5V±10%
|
|
Current
|
Max:135mA
|
|
Optical Characteristics
|
|
Image Sensor
|
CCD Linear Sensor
|
|
Sensor Resolution
|
2500pixels
|
|
Light Source
|
632nm Red LED
|
|
Performance Characteristics
|
|
Decoding rate:
|
350 scans/second±20 scans/second
|
|
Scanning Angle
|
Pitch angle:±70°;Skew angle:±70°;Tilt angle:±45°
|
|
Min Resolution
|
0.076mm/3mil(PCS 0.9)
|
|
Min .PCS value
|
>20%UPC/EAN 13(13mil)
|
|
Language
|
Multiple Languages
|
|
Data Edition
|
Support for custom data output
|
|
Decode Capability
|
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey
|
|
Physical Characteristics
|
|
Dimensions
|
Scanner:90mm*67mm*168mm(L*W*H)
|
|
Weight
|
Scanner:172g
|
|
Indicator
|
Beeper, LED
|
|
Environmental Characteristics
|
|
Temperature
|
0° to 50°C / 32° to 122°F(operation) /-10° to 60°C /14° to 140°F(storage)
|
|
Humidity
|
20 - 85% (operation) ) 20 - 90% (storage)
|
|
Shock Drop Test
|
1.5m drop onto concrete surface
|
