Inventarismodus 2D Codes Reader Wireless Barcode Scanner

Inventarismodus 2D Codes Reader Wireless Barcode Scanner

$451-49 Others

$3550-199 Others

$28≥200Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

WNI-S214

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WNI-S214

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD, CMOS

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Retourneren en vervangen

Private Mold: Yes

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 32 Bit

Interface Type: Usb, Rs232

Max Paper Size: N/A

Optical Resolution: 640X480 pixels

Scan Speed: 350 ±50 scans/second

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Color: Blue, Black

Product Type: QR Code Scanner

Interface: USB HID KEYBOARD/USB VCP

Photo Sensor: CMOS array sensor

Voltage Requirement: DC5V±10%

Dimensions: 90mm*67mm*168mm

Weight: 130g

Indicator: Beeper, LED

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Aangepaste verpakking (onderhandeld) 1 stcs/doos, 20/50 stcs/doos
Afbeeldingsvoorbeeld	:

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

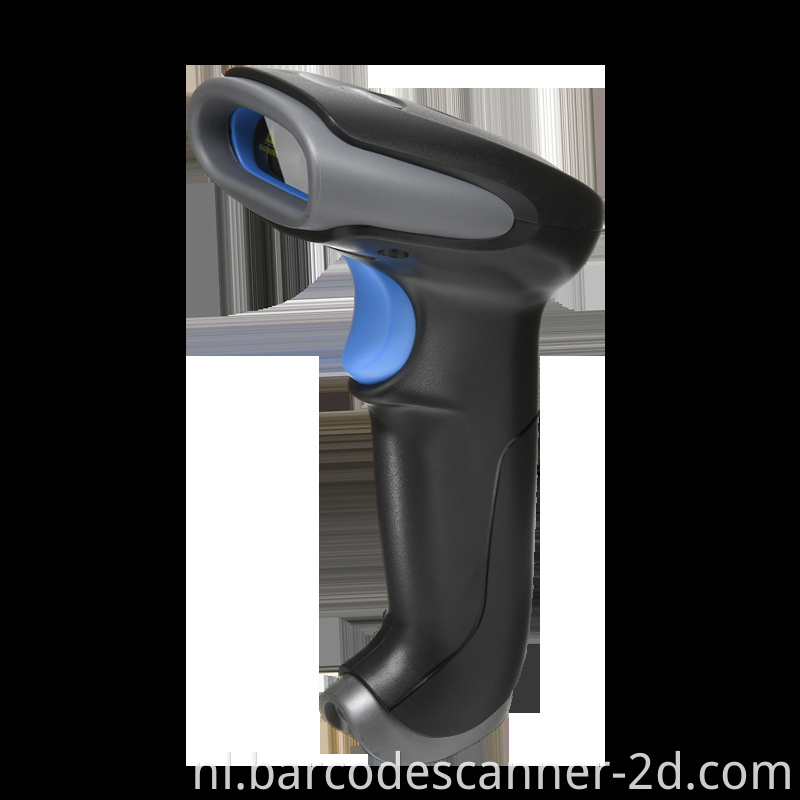

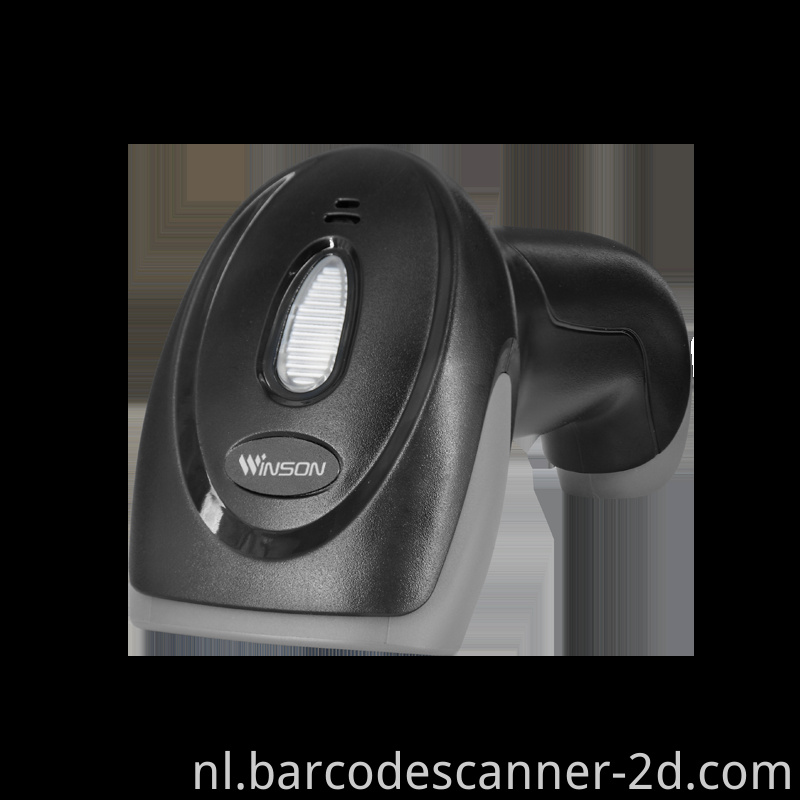

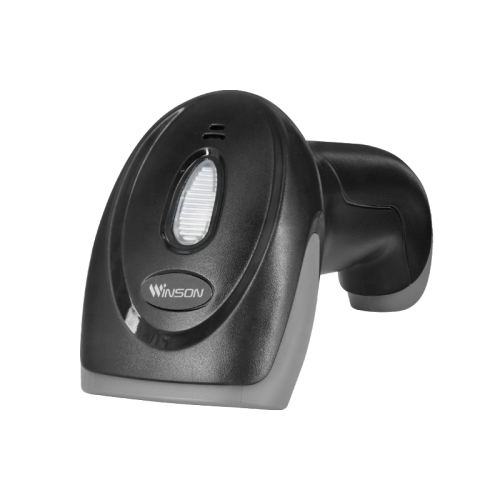

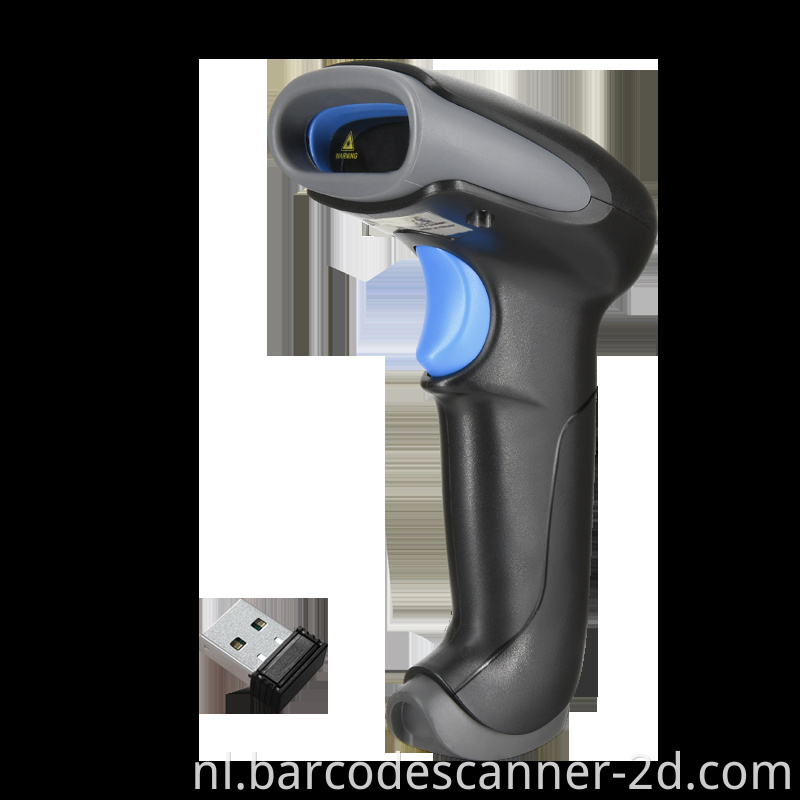

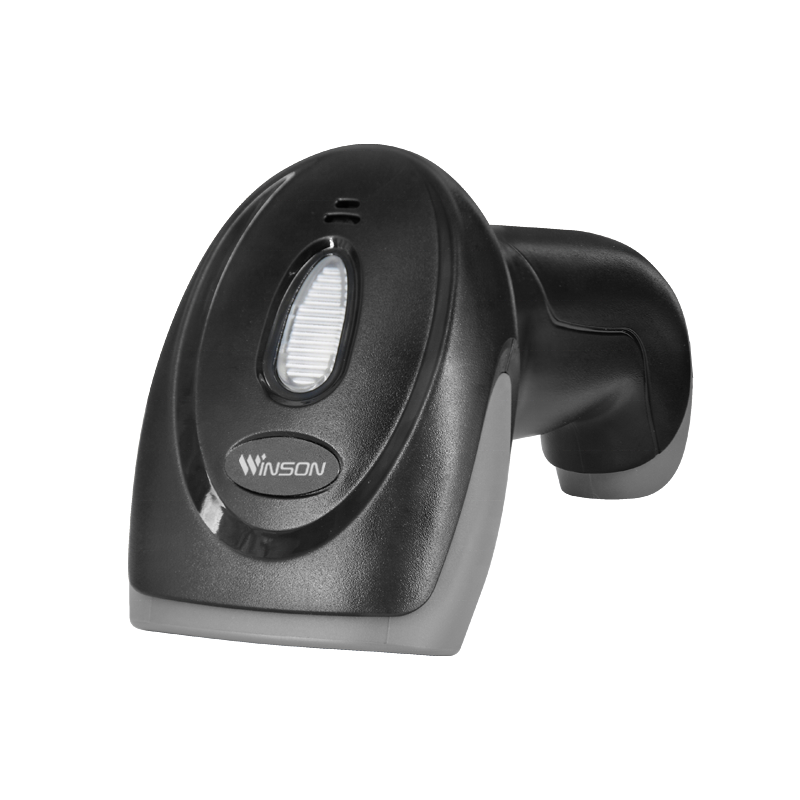

Winson WNI-S214 Portable Wireless 2D Barcode Scanner 2.4G/BT robuuste scanner

Gratis POS -software lees barcode zo klein als 3,3 molen.

Scanners voor algemene doeleinden ondersteunen om het voorvoegsel of het achtervoegsel voor of na gescande gegevens te plaatsen, de zoemer, het identiteitsstaafcode -type in-/ uitschakelen, toetsenbordsleutels toevoegen (tab, CR & LF, enz.)

Cable Barcode Scanner Application Fields: Supermarkt, Retail, Warehouse, Logistic, Library, Medical etc.

Productomschrijving

barcode scanner

winson company

Product detail

Wireless Characteristics
Communication mode	Cache mode/Inventory mode
Communication mode	2.402 to 2.480GHz
Transmission range	30m(In empty area)
Battery capacity	2000mAh (Lithium battery)
Charge Time from Empty to Full Charge	5H
Duration of use	11H (wireless mode,real-time mode communication mode,60 scans/minute)

Electrical Characteristics
Interface Supported	USB HID KEYBOARD/USB VCP or RS-232
Input Voltage	DC 5V
Current	150mA
Performance Characteristics
Sensor	640×480 CMOS
Illumination	White LED
Focus	Red LED
Scanning Angle	Pitch angle:+55°
	Skew angle:+360°
	Tilt angle:+55°
Field of view	36°(H),27°(V)
Reading accuracy	≥5mil
Decode Capability	1D:Code 128,Ean-13 ,Ean-8,UPC-E,UPC-A,ITF-25(Interleaved 2 0f 5),Code39,Code93,Codabar 2D:QR Code,Data Matrix,PDF417
Environmental Characteristics
Temperature	operation:-20°C to 60°C
	storage:-40°C to 80°C
Humidity	operation:5%~95% (no condensation)
Ambient light	0~100,000LUX
Decoding Depth of Field
Symbology	Resolution	Barcode number	Barcode width
Code128	13mil	10	4.3x3.1cm
Code39	5mil	7	3.5x1.19cm
EAN13	13mil	13	4.5x2.69cm
QR Code	15mil	30	1.9x1.85cm
Data Marix	10mil	30	4.5x1.16cm
PDF 417	6.67mil	30	4.0x10.5cm
