Veelzijdig: interfaces zoals PS2, RS232, USB, USB-COM, enz. Zijn beschikbaar.
bekijk meer >> nieuwe stijl
1D 2D Barcode Reader Handheld Wired Area-Imaging QR Code Barcode Scanner Fix Mount Barcode Scanner.

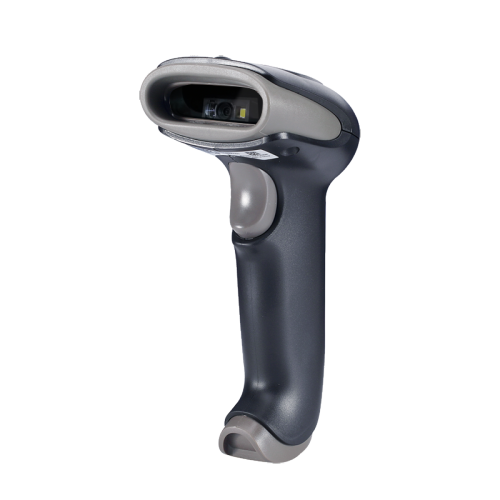

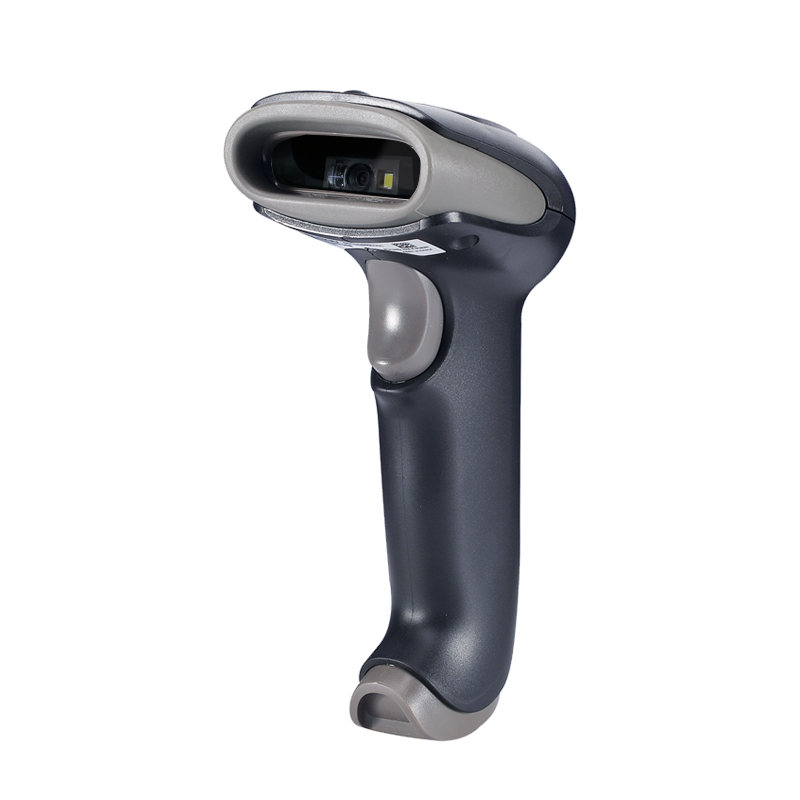

Winson Barcode Scanner CCD Bar Code Reader met 2D Barcode Engine
OEM Barcode Scanner -moduleondersteuning om het voorvoegsel of het achtervoegsel voor of na gescande gegevens te plaatsen, zet de zoemer, identiteitsstreepjes in/ uit, voeg toetsenbordtoetsen toe (tab, CR & LF, enz.)
|
Communication mode
|
Wireless Read-time mode／Cache mode
|
|
Communication frequency
|
Blue tooth 4.2
|
|
Transmission range
|
≤10M（In empty area 15M ）
|
|
Battery capacity
|
2000mAh (Lithium battery)
|
|
Charge Time from Empty to Full Charge
|
4.5H
|
|
Scans per Battery Charge
|
20,000 （1 scan per second）
|
|
Memory
|
100，000@13Byte barcode
|
|
Interface Supported
|
USB HID KEYBOARD/USB VCP
|
|
Input Voltage
|
DC 5V±10%
|
|
Current
|
Max:250mA
|
|
Image Sensor
|
CMOS Array Sensor
|
|
Scanning Angle
|
Pitch angle:±70°;Skew angle:±70°;Tilt angle:±180°
|
|
Min Resolution
|
1D ≥0.101/4mil（PCS 0.9）
2D ≥0.178/7mil（PCS 0.9）
|
|
Min .PCS value
|
〉20%UPC/EAN 13（13mil）
|
|
Data Edition
|
Support for custom data output
|
|
Language
|
Multiple Languages
|
|
Decode Capability
|
1D：UPC-A/UPC-E；EAN-8/EAN-13；Code128；Code39；Code93；Code32；Code11；Codabar；Plessey；MSI；Interleaved 2 of 5；IATA 2 of 5；Matrix 2 of
5；Straight 2 of 5；Pharmacode；RSS-14；RSS-14 Expanded；RSS-14 Limited；Composite Code-A；Composite Code-B；Composite Code-C；
2D：PDF417；Micro PDF417；Data Matrix；QRcode；Micro QR；Aztec；MaxiCode
|
|
Dimensions
|
Scanner：90mm*67mm*168mm(L*W*H)
|
|
Temperature
|
0°∽50°C / 32°∽122°F(operation) /-10°∽60°C /14°∽140°F(storage)
|
