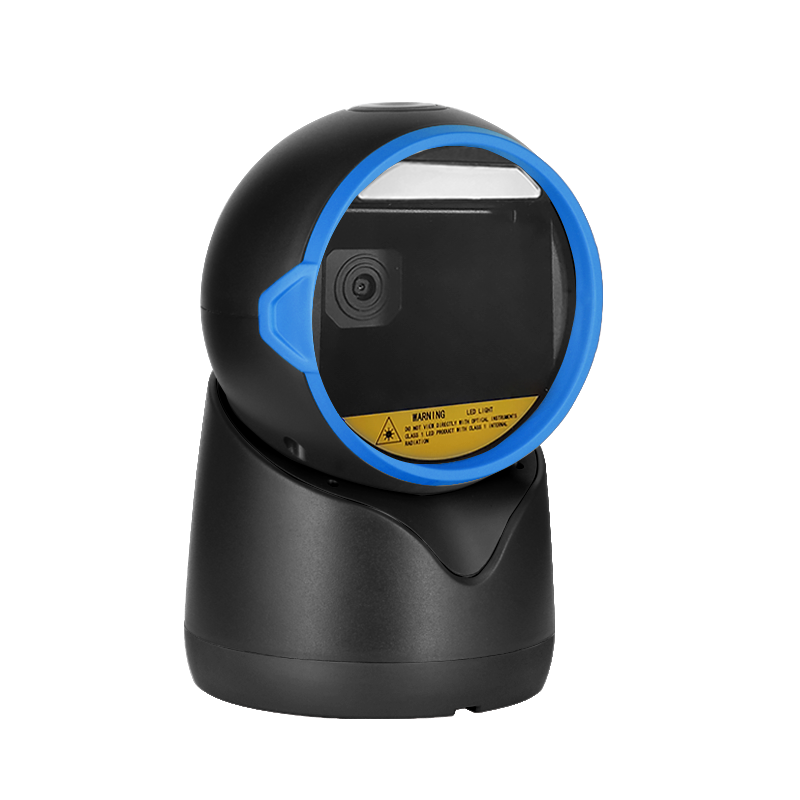

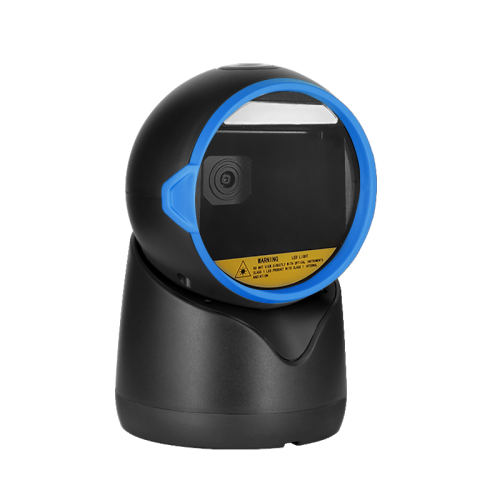

Name: Winson Auto Sensing 2D Datamatrix Barcode Scanner E-betaling Barcode Reader1
Uploaded: 2022-11-09T05:14:38+08:00
Description: Desktop handvrij ontwerp gratis uw hand en verbetert de werkefficiëntie kleine barcodescannermodule . Super

$501-99 Others

$45100-499 Others

$40≥500Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express
Haven:	guangzhou

Option:

WAI-5784P

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WAI-5784P

merk: Winson

Certificatie: ce, andere

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CMOS

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning, Anderen

Private Mold: Yes

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 8 Bit

Interface Type: usb, Other

Max Paper Size: N/A

Optical Resolution: 960 x 640 Pixels

Scan Speed: 60fps

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Color: Black

Interface: RS-232/USB HID KEYBOARD/USB VCP

Voltage Requirement: DC 5V±5%

Current Consumption: Max:335mA

Photo Sensor: CMOS array sensor

Light Source: Red LED

Min Resolution: 1D ≥ 5mils,2D ≥ 10mils

Min.PCS Value: >15%UPC/EAN 13(13mil)

certificaat: Ce

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Aangepaste verpakking (onderhandeld)
Afbeeldingsvoorbeeld	:

The file is encrypted. Please fill in the following information to continue accessing it

Winson Auto Sensing 2D Datamatrix Barcode Scanner E-betaling Barcode Reader1



Beschrijving

Desktop handvrij ontwerp gratis uw hand en verbetert de werkefficiëntie kleine barcodescannermodule .

Super decoderingsmogelijkheden, snel om zowel gedrukte als mobiele telefoonscherm CBA Smart Terminal te scannen.

1D 2D QR Desktop Barcode Scanner Omnidirectionele handsfree USB Wired Barcode Reader

1D 2D QR Desktop Barcode Scanner Omnidirectionele handsfree USB- scanner met laser

product beschrijving

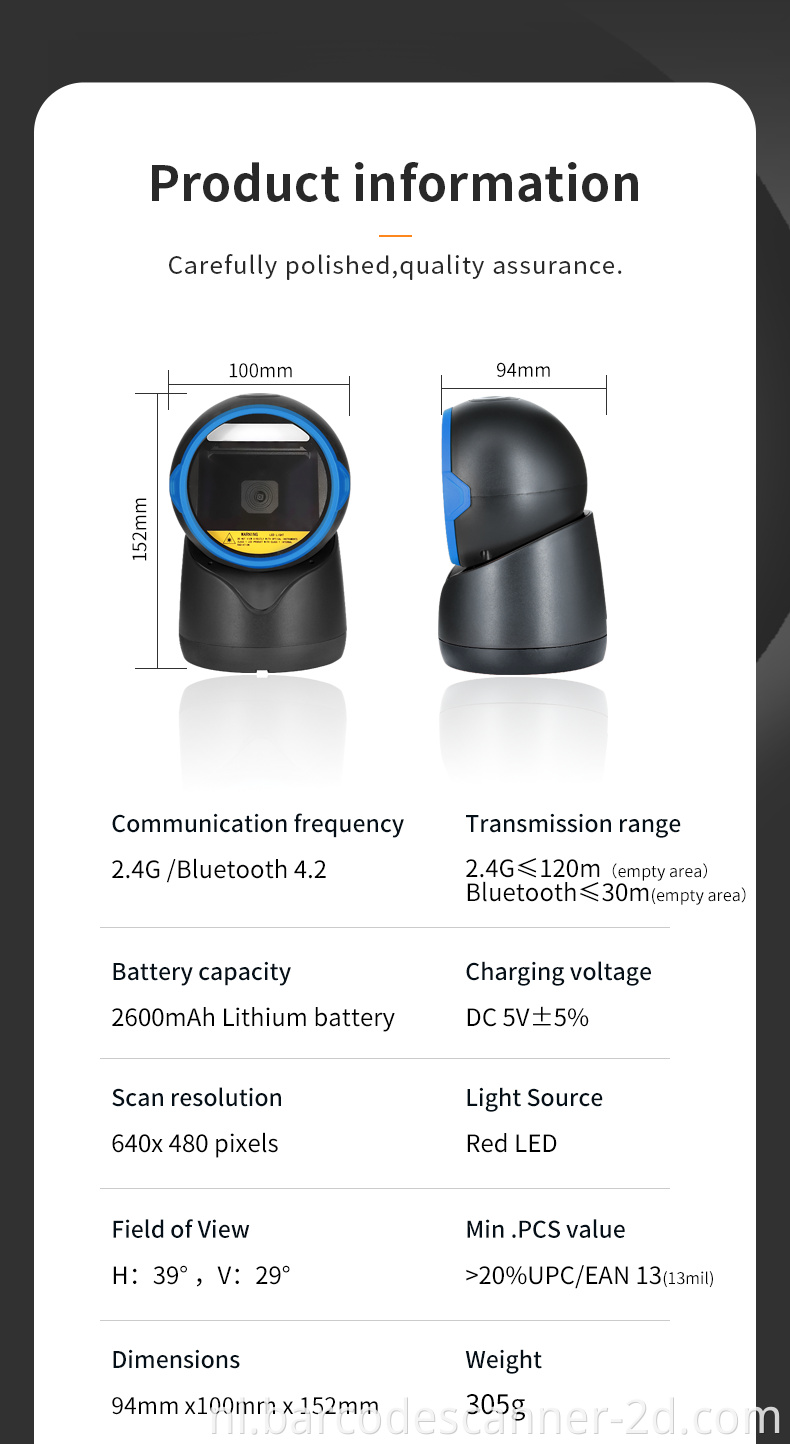

Specificatie

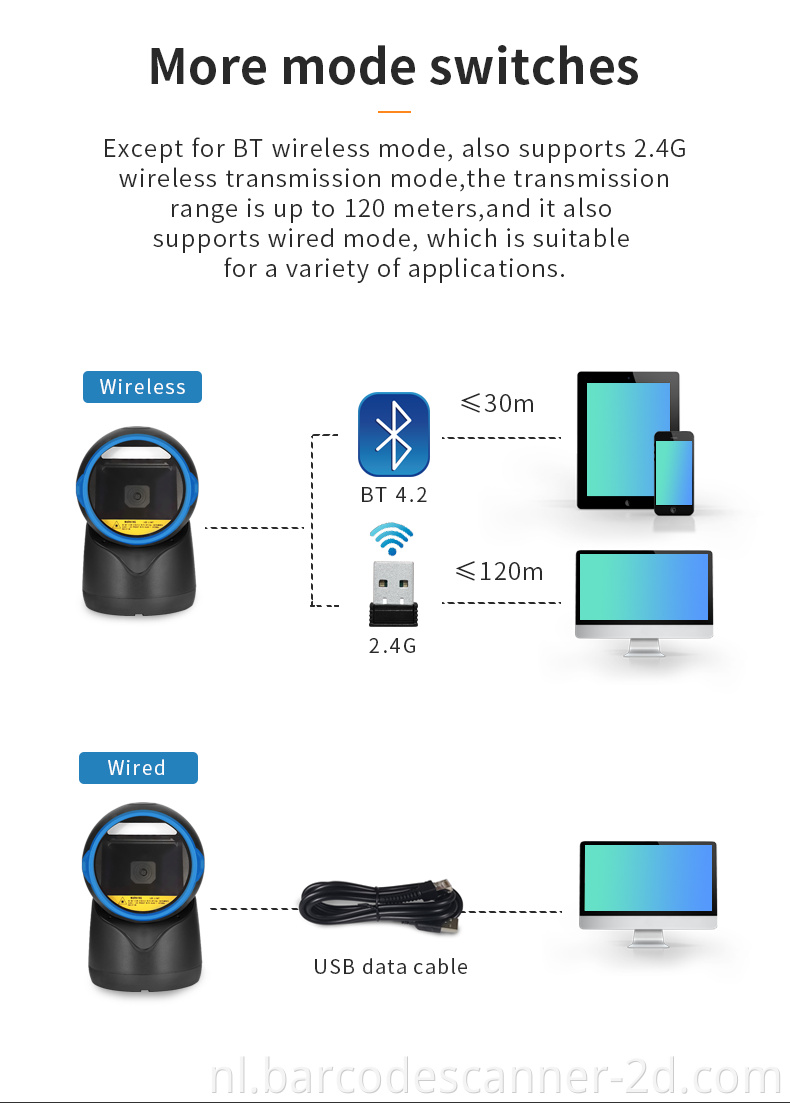

Communication mode	Wired transmission mode/ Wireless Read-time mode/Inventory mode／Cache mode

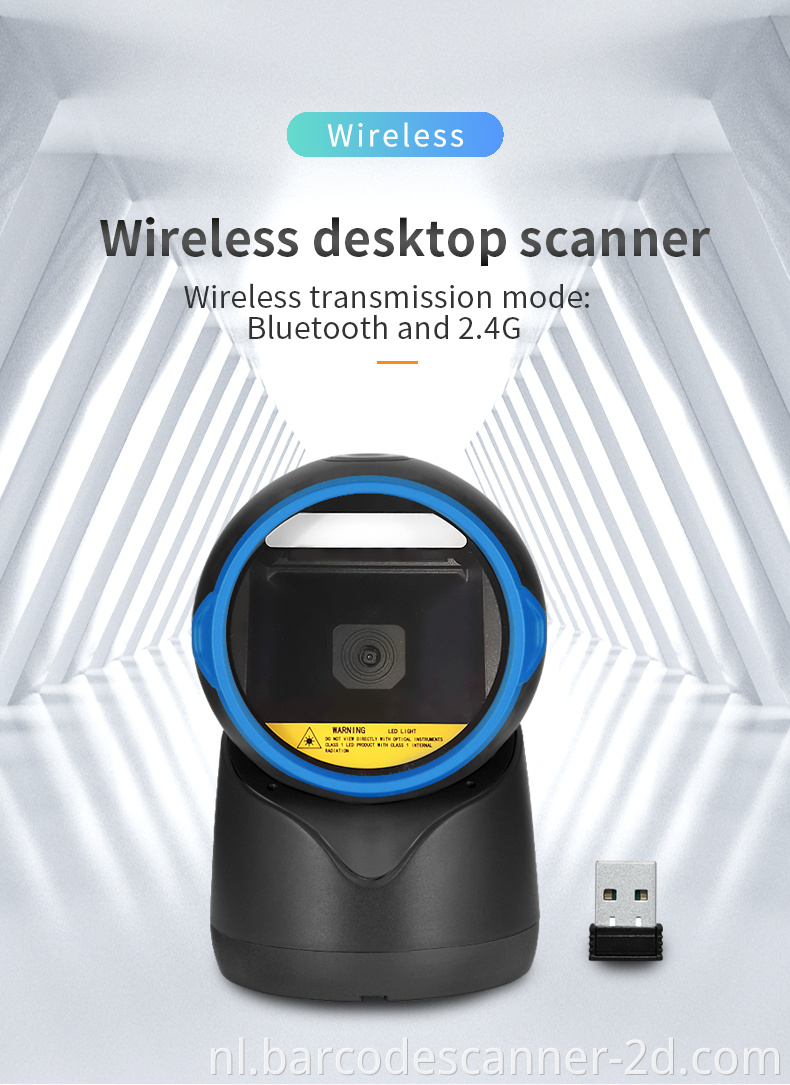

Communication mode	Wireless 2.4G&Blue tooth 4.2
Transmission range	Wireless 2.4G ≤ 120M Blue tooth ≤ 30m
Battery capacity	2600mAh lithium battery
Charge Time from Empty to Full Charge	15H
Charging voltage	DC 5V±5%
Scans per Battery Charge	60000 times (1 scan per second)
sensor	CMOS sensor
Scan resolution	640x 480pixels
Light Source	Red LED
Scanning Angle	Pitch angle：±65° Skew angle：±65° Tilt angle：±180°
Min Resolution	1D ≥ 5mils 2D ≥ 10mils
Min .PCS value	>20%UPC/EAN 13(13mil)

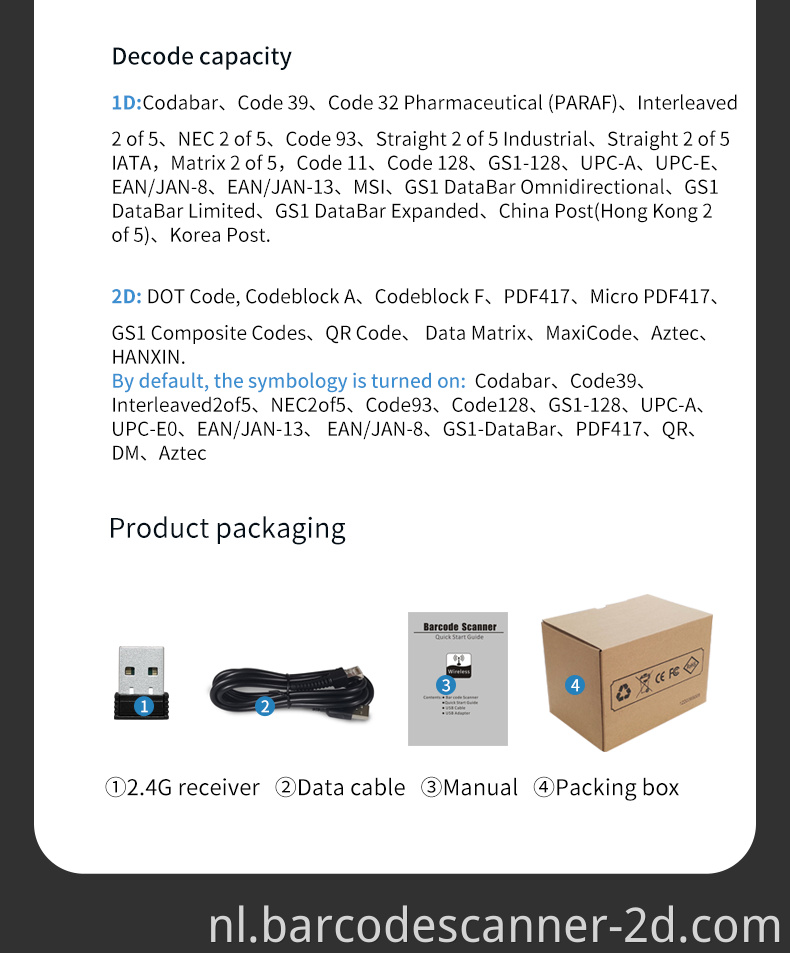

Decode capacity	1D：Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industrial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code 128、GS1-128、UPC-A、UPC-E、 EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post. 2D：DOT Code, Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、 Data Matrix、MaxiCode、Aztec、HANXIN. By default, the symbology is turned on: Codabar、Code39、Interleaved2of5、NEC2of5、Code93、Code128、GS1-128、UPC-A、UPC-E0、EAN/JAN-13、 EAN/JAN-8、GS1-DataBar、PDF417、QR、DM、Aztec
Data Edition	Support for custom data output
Dimensions	94mm x100mm x 152mm(LWH)
