Product 2D Barcode Scanner POS QR Code Scanner

Product 2D Barcode Scanner POS QR Code Scanner

$58.52-99 Others

$50.5100-999 Others

$39.9≥1000Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

WNI-9610

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WNI-9610

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 16 Bit

Interface Type: Usb, Rs232

Max Paper Size: N/A

Optical Resolution: 640X480 pixels

Scan Speed: 60

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Interface Supported: USB HID KEYBOARD/USB VCP or RS-232

Input Voltage: DC 5V±10%

Current: 32a / 63a / 80a / 100a

Image Sensor: CMOS Array Sensor

Sensor Resolution: 640X480 Pixels

Light Source: White Led

Min Resolution: SR:0.127/5mil(PCS 0.9)

certificaat: Ce

Verpakking & Levering

Verkoopeenheden	:	piece
Pakkettype	:	Aangepaste verpakking (onderhandeld)
Afbeeldingsvoorbeeld	:

The file is encrypted. Please fill in the following information to continue accessing it

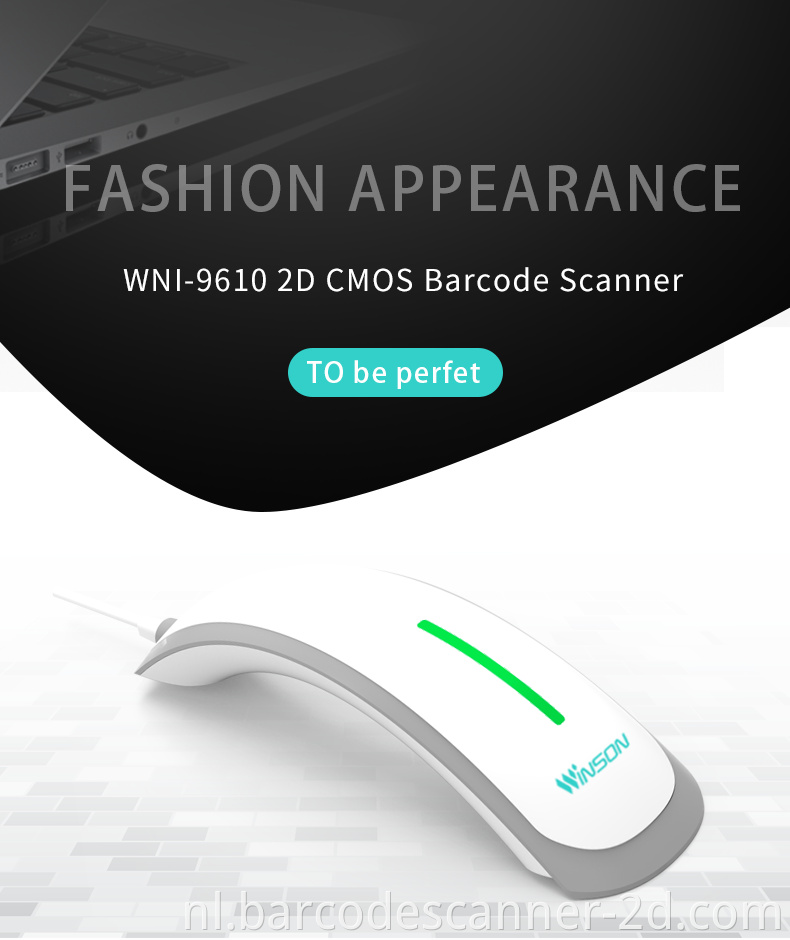

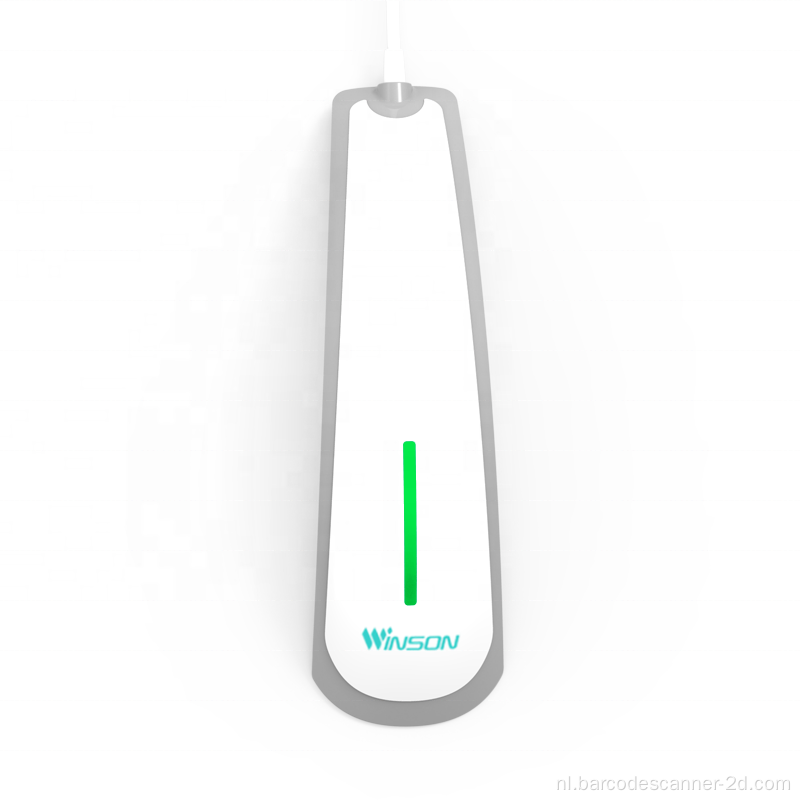

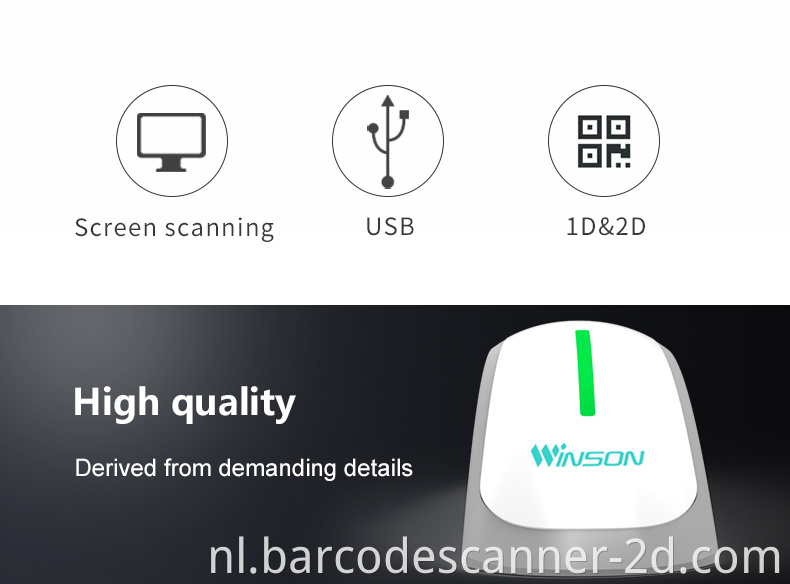

Winson WNI-9610 Nieuwe stijlproduct 2D CMOS Barcode Scanner POS QR Code Scanner1



Beschrijving

Barcode Scanner Winson WNI-9610 Nieuwe stijlproduct 2D CMOS Barcode Scanner POS QR Code Scanner

Winson WNI-9610 Nieuwe stijlproduct 2D CMOS Barcode Scanner POS QR Code Scanner

winson company

Product detail

Technical Parameters
Electrical Characteristics

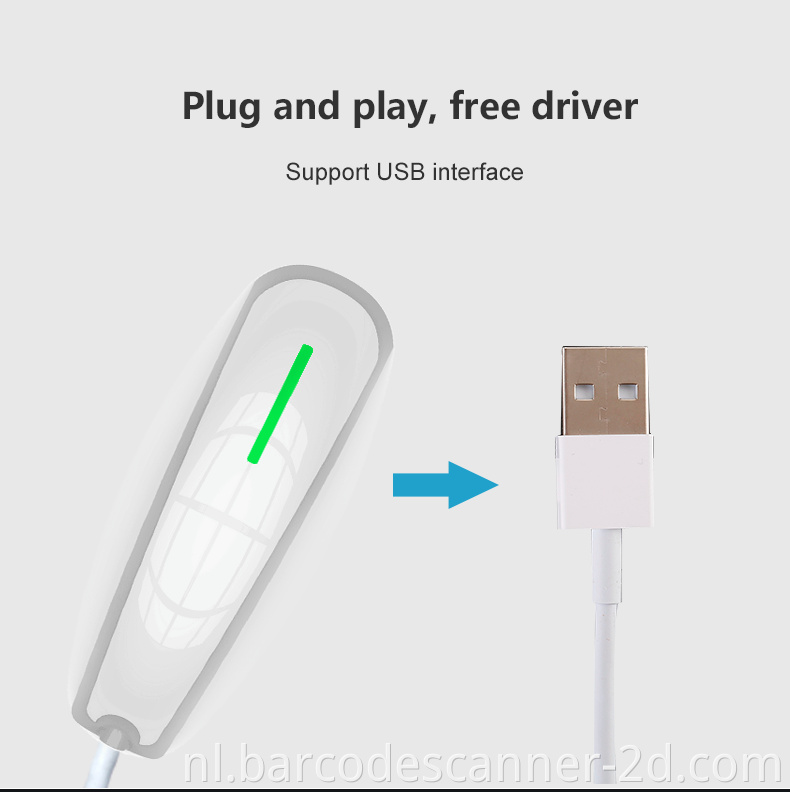

Interface	RS-232/USB HID KEYBOARD/USB VCP
Voltage requirement	DC5V±10%
Current consumption	Max :500mA
Optical Characteristics
Photo sensor	CMOS linear sensor
Sensor Resolution	640X480 Pixels
Light source	625nm Red Bar LED
Performance Characteristics
Scan Rate	60FPS
Decode angle	Pitch angle:±50° Skew angle::±50° Tilt angle:±180°
Min resolution	0.076mm/3mil(PCS 0.9)
Min.PCS value	>30%UPC/EAN 13(13mil)
Curvature	R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9)
Language	Multiple languages
Error rate	1/500W

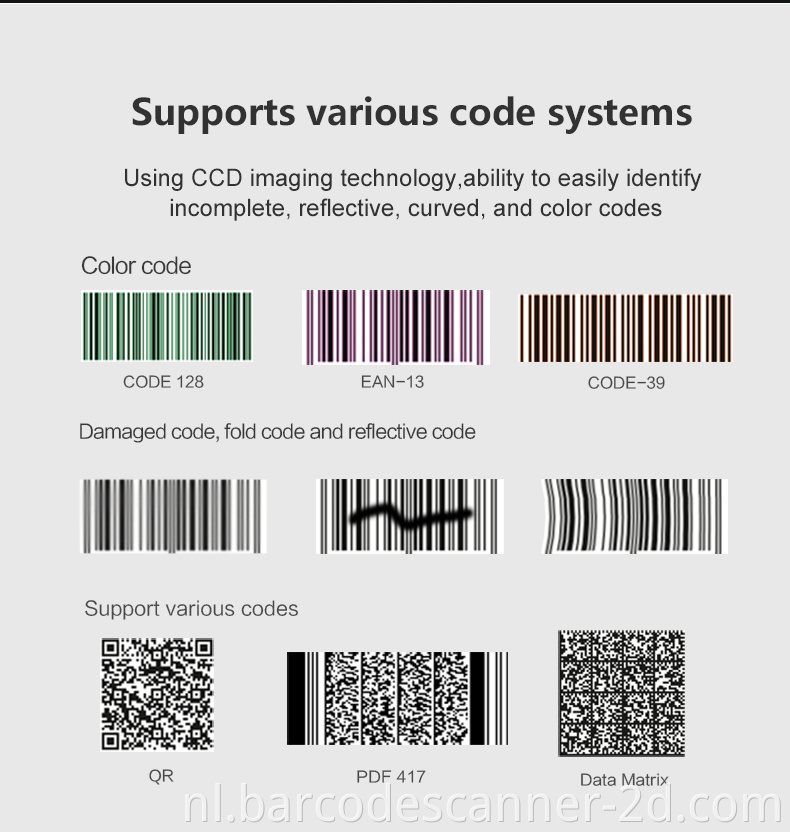

Identification	1D: Code128,UCC/EAN-128,AIM128,EAN-8,EAN-13,ISBN/ISSN,UPC-E,UPC-A,Interleaved 2 of 5,ITF-6,ITF-4,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5,Code39,Codabar,Code93,Code11,Plessey,MSI-Plessey,RSS-14,RSS-Limited,RSS-Expand 2D:QR ,PDF417 ,Data Matrix
Physical Characteristics

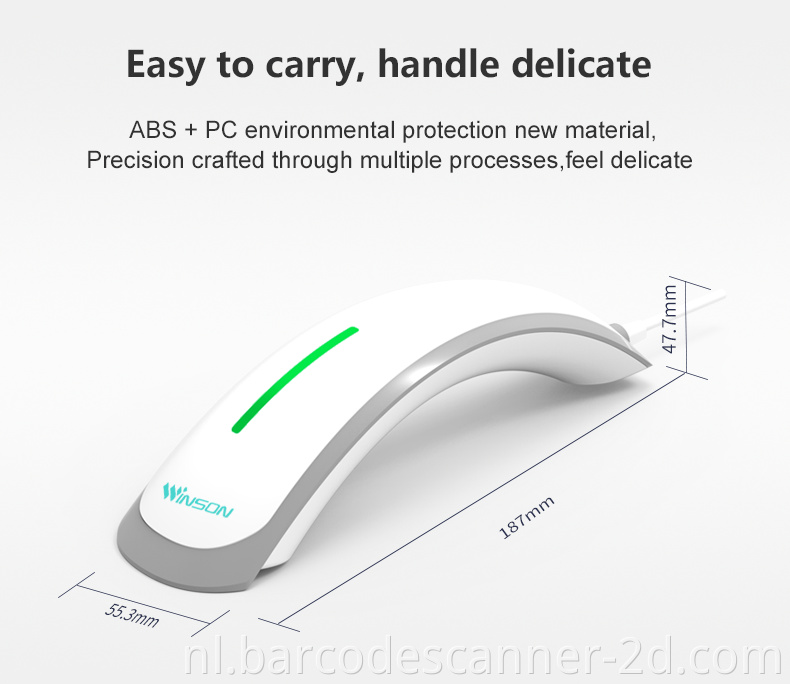

Dimensions	55.3mm×47.7mm×187mm(L x W x H)
Weight	120g
Environmental Characteristics
Temp	-20°-65°C / -4°to 149°F((operation) ) -30°- 70°C /-22°to 158°F(storage)
Humidity	5 - 90% (operation) ) 5 - 90% (storage)
Ambient Light	Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Shock drop test	1.5m drop onto concrete surface
