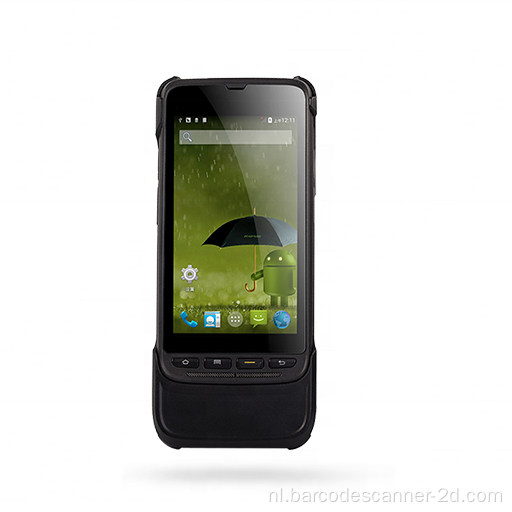

Winson WPC-5000UHF Long Range RFID Tag Reader UHF RFID Handheld PDA
Functies
|
1. Pda Barcode Scanner Faster, more stable data radio transmission
|
|
2. Android Pda With Keyboard More powerful, high efficient data collection
|
|
3. Mobile Computers 4.7 inch all sight high resolution touch screen, high efficient work
|
|

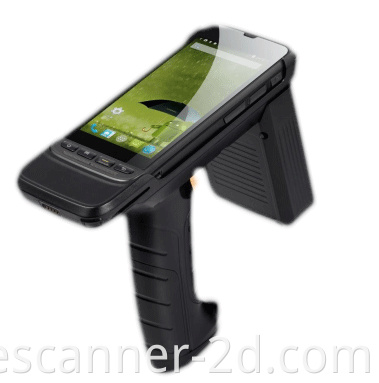

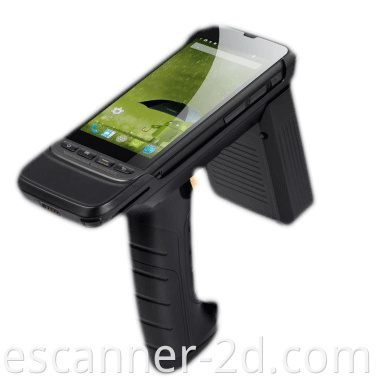

4. Flexible dismount/assembly drawing structure. Device, pistol grip, components can be purchased separately.
|
Productomschrijving
Krachtigere en efficiëntere functie voor gegevensverzameling
Uitstekende UHF RFID lezen/schrijven
- Uitgerust met hoogwaardige UHF-modules lees- en schrijfmodules, met hoge gevoeligheidsantenne, lezen en schrijven afstanden tot 10 meter, tag-leessnelheid ≥200Tags/s.
Ondersteun meerdere manieren van gegevensverzameling
Uitgerust met de krachtigste barcodescanmotor in de branche en ondersteunt professionele gegevens automatische identificatie- en verzamelmethoden van GPS, camera enz., Helpt gebruikers nauwkeurig en snel bedrijfsgegevens te verzamelen.
Product detail
Systeem configuratie
|
CPU
|
Quad-core 1.3 GHz
|
|
Operating System
|
Android 6.0
|
|
Memory(ROM+RAM)
|
16 GB +2 GB
|
|
Expansion Slot
|
Micro SD card, up to 32 GB
|
|
Display
|
4.7-inch, 1280 x 720 high resolution
|
|
Touch Panel
|
Industrial-grade capacitive touch panel (supporting operation with gloves)
|
|
Camera (optional)
|
8 MP autofocus camera in the back side, autofocus lens, LED flash
|
|
Exit Window
|
Corningâ Gorillaâ glass
|
|
Keypad
|
4 front keys, 4 side keys, Power key (can be set as customized key)
|
|
Battery
|
3.8V 3600mAh / 3.7V 3300mAh lithium polymer battery(PDA) + 3.7V 5200 mAh(pistol grip)
|
|
Audio
|
Built-in microphone /Micro USB/Headphone connector
|
|
Notification
|
Vibrator alerts/LED/Audio notification
|
|
Vibration Motor
|
Built-in programmable vibration motor
|
|
Sensor
|
G-Sensor/Proximity sensor/Light sensor
|
Structurele parameter
|
Dimensions (LxWxD)
|
PDA: 150 mm x 73.5 mm x 16 mm(head 24mm thick)
PDA + handle:175mm x 89mm x 165mm
|
|
Weight
|
PDA(include battery)+ pistol grip(with RFID)710g
PDA(include battery)+ pistol grip(without RFID)530g
|
RFID ( optioneel )
|
Frequency
|
902MHz-928MHz,865MHz-868MHz(Customize according to required band)
|
|
Protocol
|
ISO18000-6B/6C/6D(According to required band)
|
|
Antenna
|
4dBi circularly polarized antenna
|
|
Output power
|
5-30dbm adjustable
|
|
Data Capture Range
|
10m(depends on labels)
|
