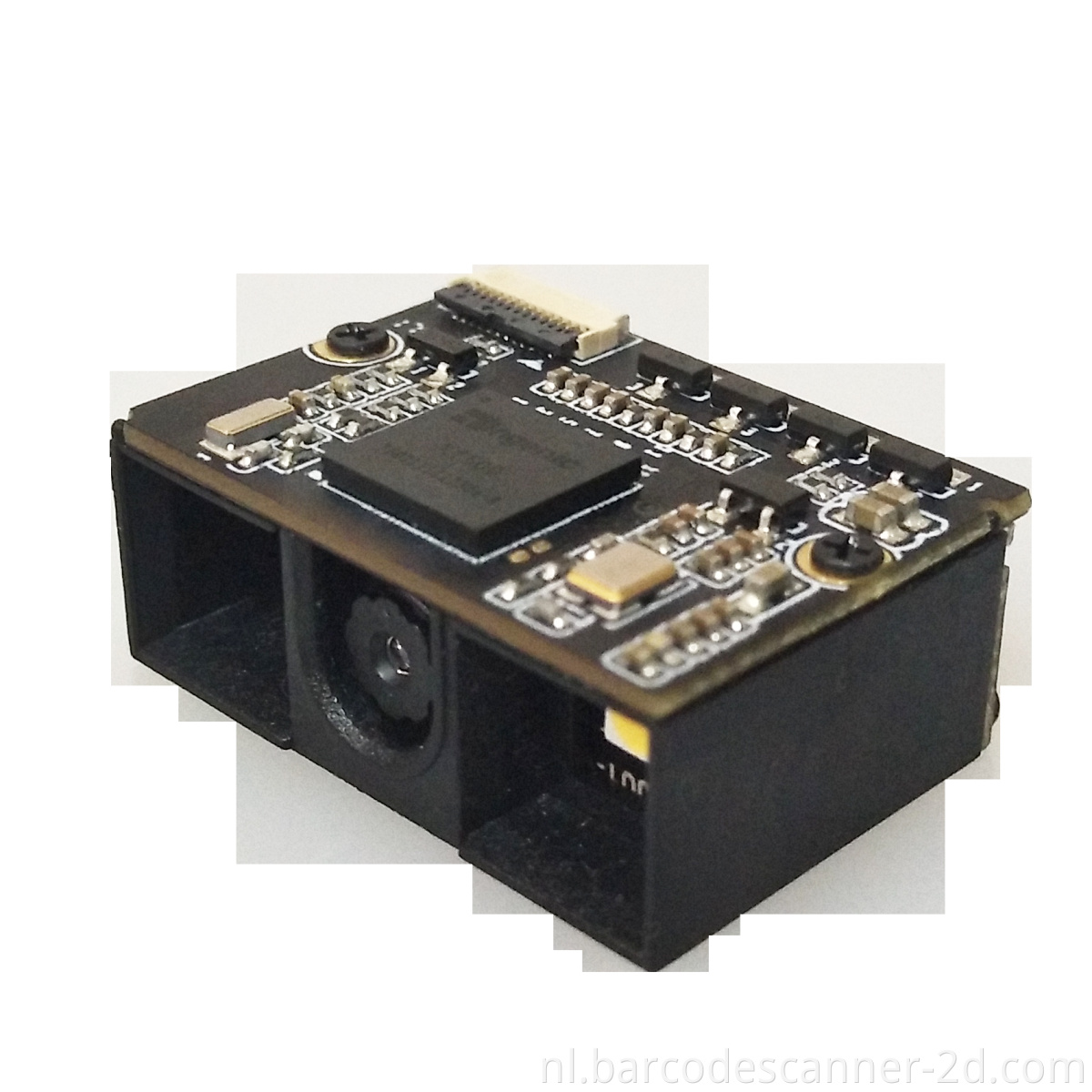

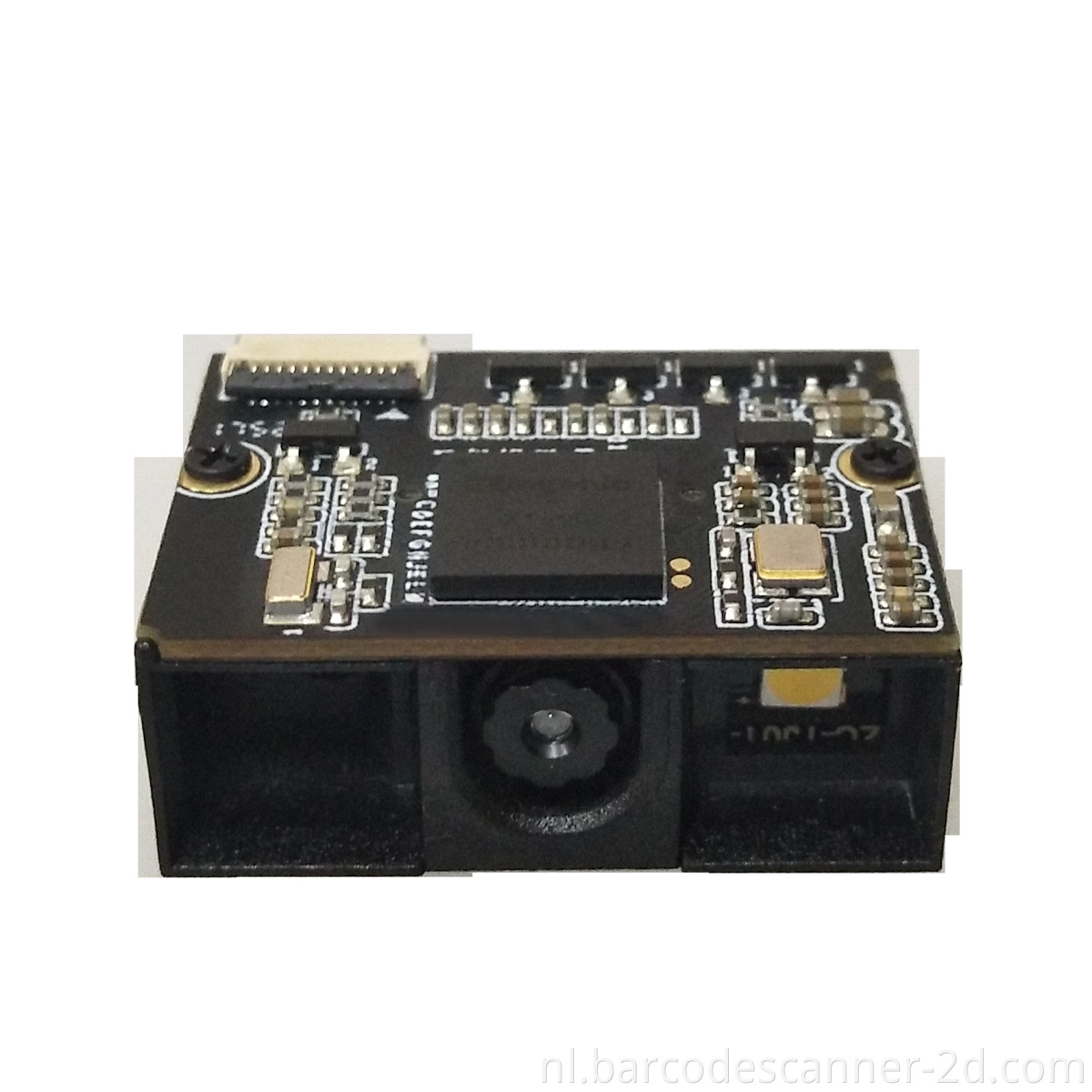

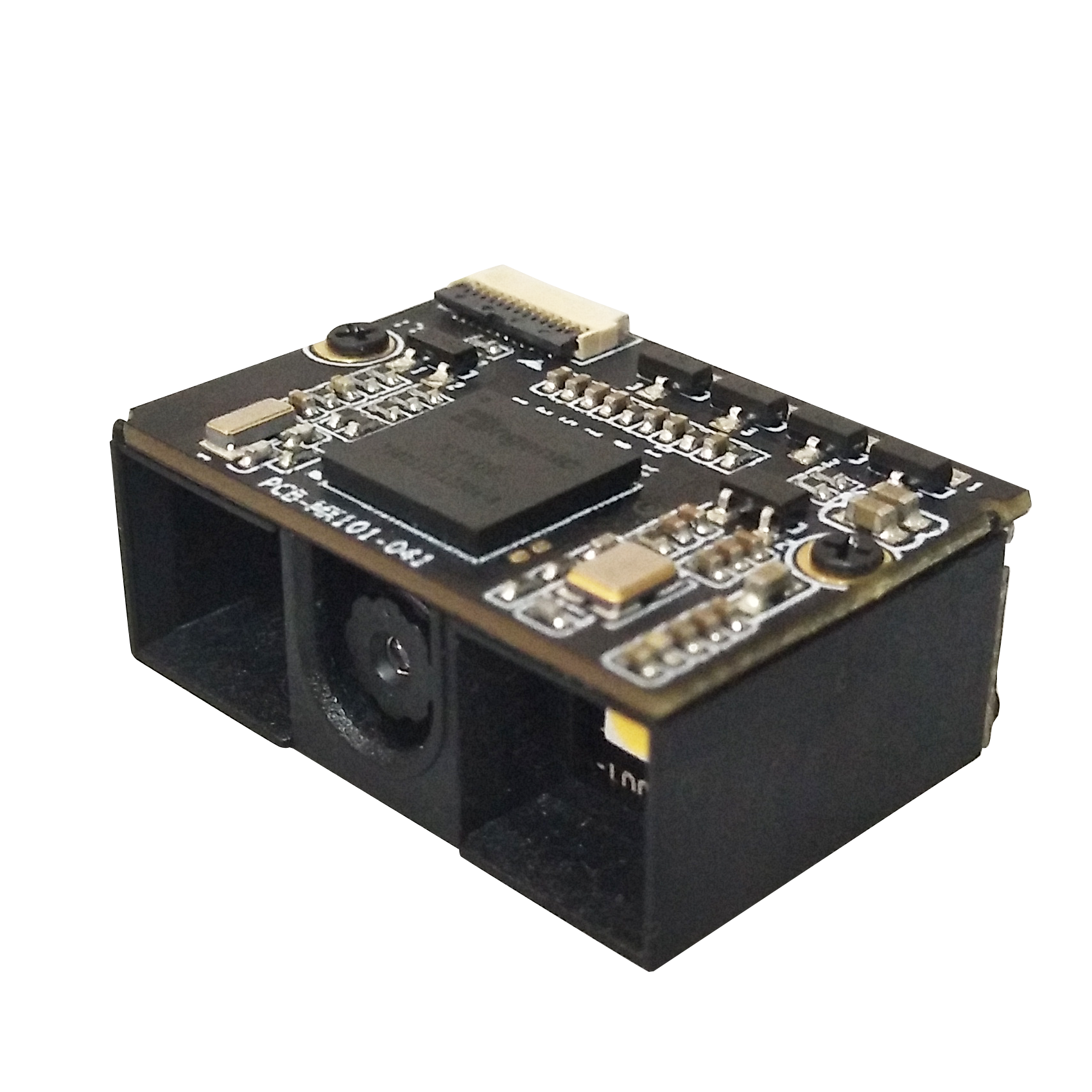

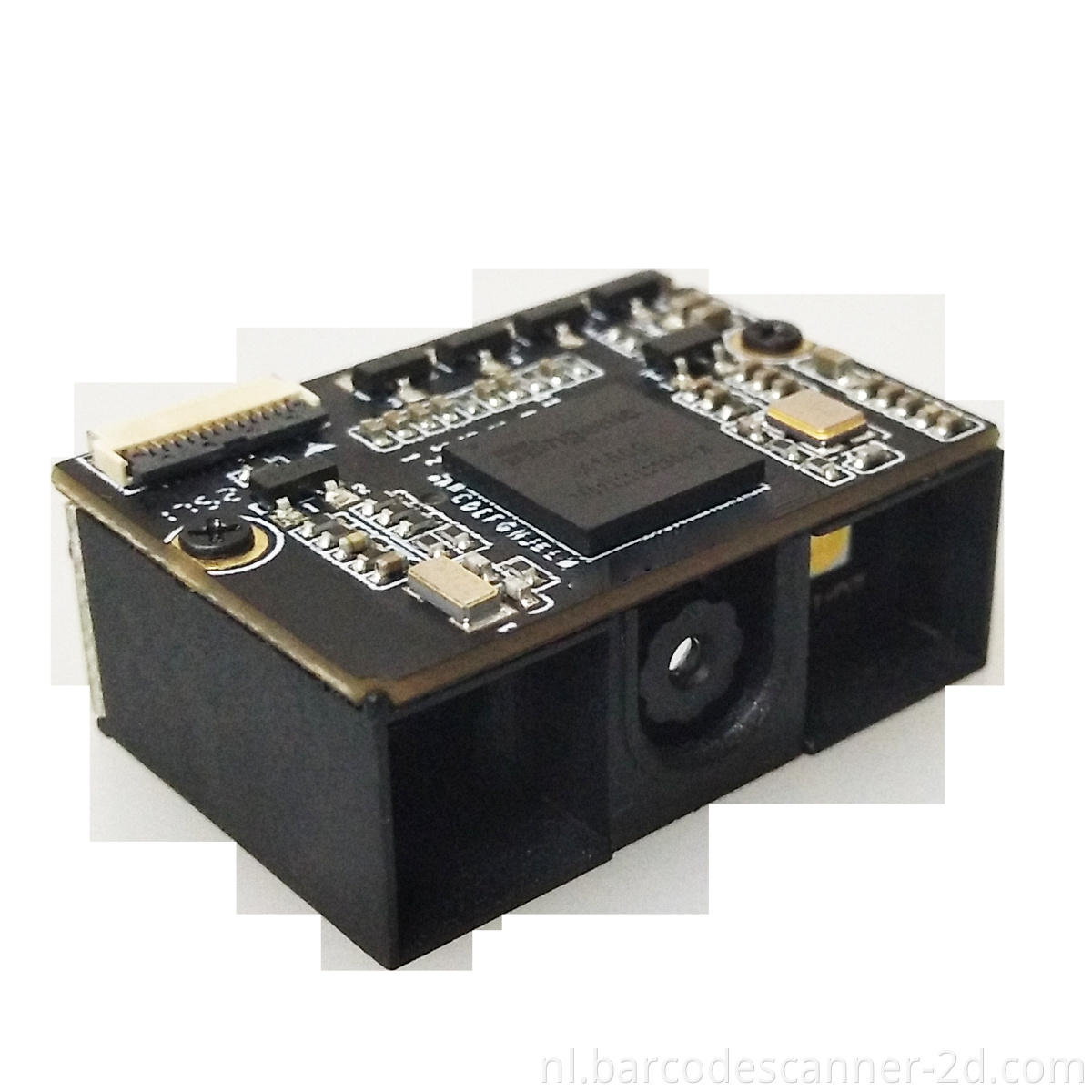

Winson WDI-2010 Mini Size Scanner Module 2D Code Scanner Modul OEM Scan Engine
Product detail
|
Technical Parameters
|
|
Electrical Characteristics
|
|
Interface
|
TTL-232/USB
|
|
Interface connector
|
0.5-12P FPC
|
|
Voltage requirement
|
DC 3.3V±5%
|
|
Current consumption
|
Max:100mA
|
|
Optical Characteristics
|
|
Photo sensor
|
CMOS array sensor
|
|
Sensor resolution
|
648X488 pixels
|
|
Light source
|
white LED*1
|
|
Aim light source
|
Red Bar LED
|
|
Performance Characteristics
|
|
Decode angle
|
Pitch angle:±65°
Skew angle:±60° Tilt angle:±180°
|
|
Min resolution
|
1D:5mil(0.127mm)
|
|
Min.PCS value
|
>20%UPC/EAN 13(13mil)
|
|
Field of View
|
40°(H),29°(V)
|
|
Language
|
multiple languages
|
|
Identification
|
1D:UPC/EAN,Code 128, Code 39,
Code 93, Interleaved 2 of 5,
Codabar,
2D:QR,Mirco QR,PDF417 ,Mirco
PDF417,Data Matrix,Aztec
|
|
Physical Characteristics
|
|
Dimension
|
28mm x 20mm x 10.5mm(L*W*H)
|
|
Weight
|
5g
|
|
Configurations
|
Decode
|
|
Environmental Characteristics
|
|
Temp
|
-20° - 50°
|
|
Humidity
|
5 - 95% (operation) ) 5 - 95% (storage)
|
|
Ambient light
|
fluorescent light 1600 Lux max, direct sun light 80,000 lx max
|
|
Shock drop test
|
1.2m drop onto concrete surface
|
|
Regulatory
|
|
Electrical safety
|
UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed.
|
|
MI/RFI
|
FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN55024
|
|
Environmental
|
RoHS
|
