CCD Imaging 1D Barcode Scanner Motor

$211-49 Others

$1950-199 Others

$17≥200Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

WDC-1002

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WDC-1002

merk: Winson

Certificatie: ce, andere

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD, CMOS

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Private Mold: Yes

Products Status: Stock

Type: OEM CCD Barcode Scanner Module

Scan Element Type: Ccd

Colour Depth: 32 Bit

Interface Type: usb, TTL/RS232

Max Paper Size: N/A

Optical Resolution: 2500pix

Scan Speed: 350±50 (scans/second)

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Product Type: 1D Scanner Engine

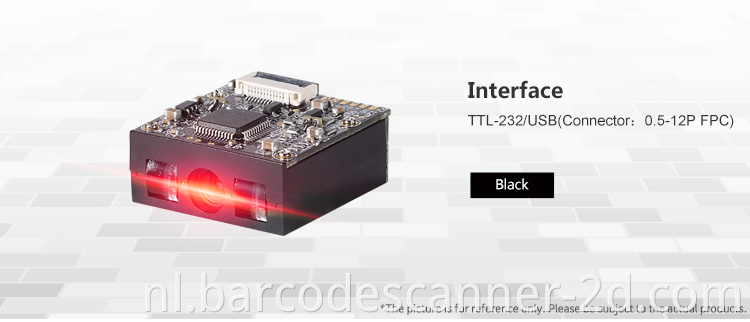

Interface: TTL-232/USB

Photo Sensor: CCD linear sensor

Light Source: 632nm red LED

Current Consumption: Max:120mA

Min.Resolution: 0.101mm/4mil(PCS 0.9)

Min.PCS Value: >15%UPC/EAN 13(13mil)

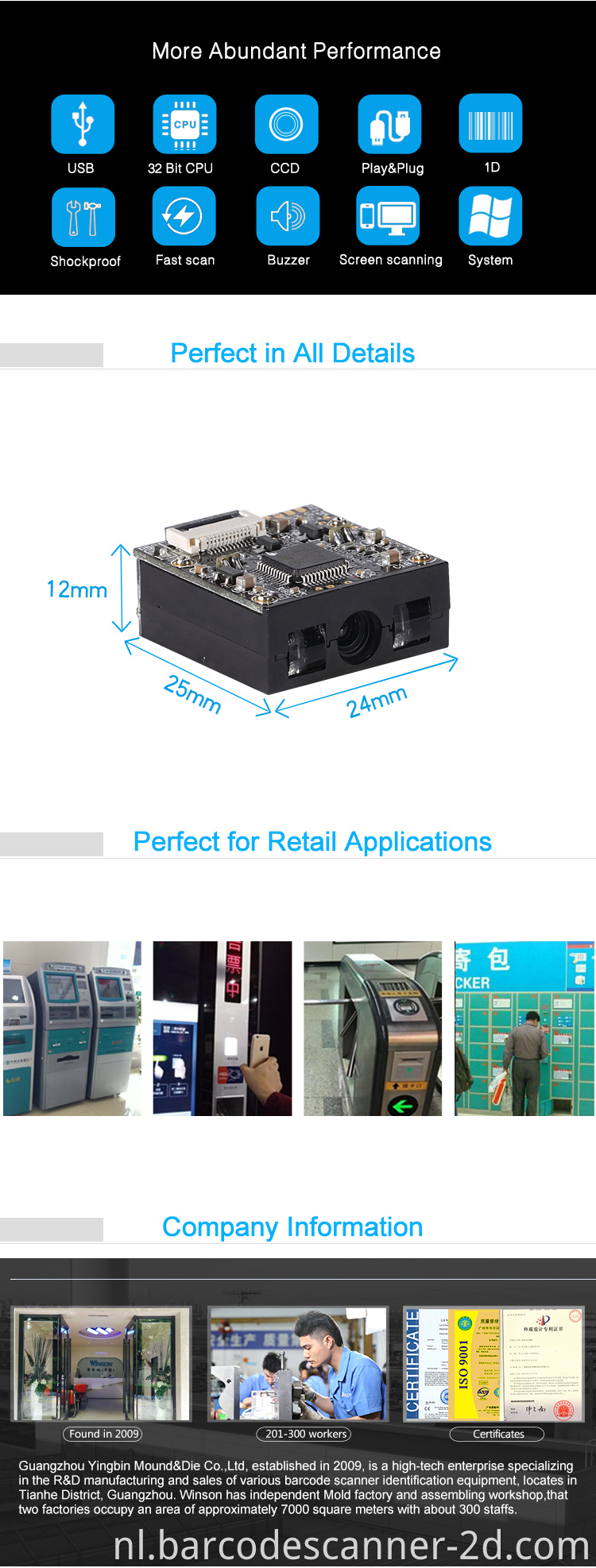

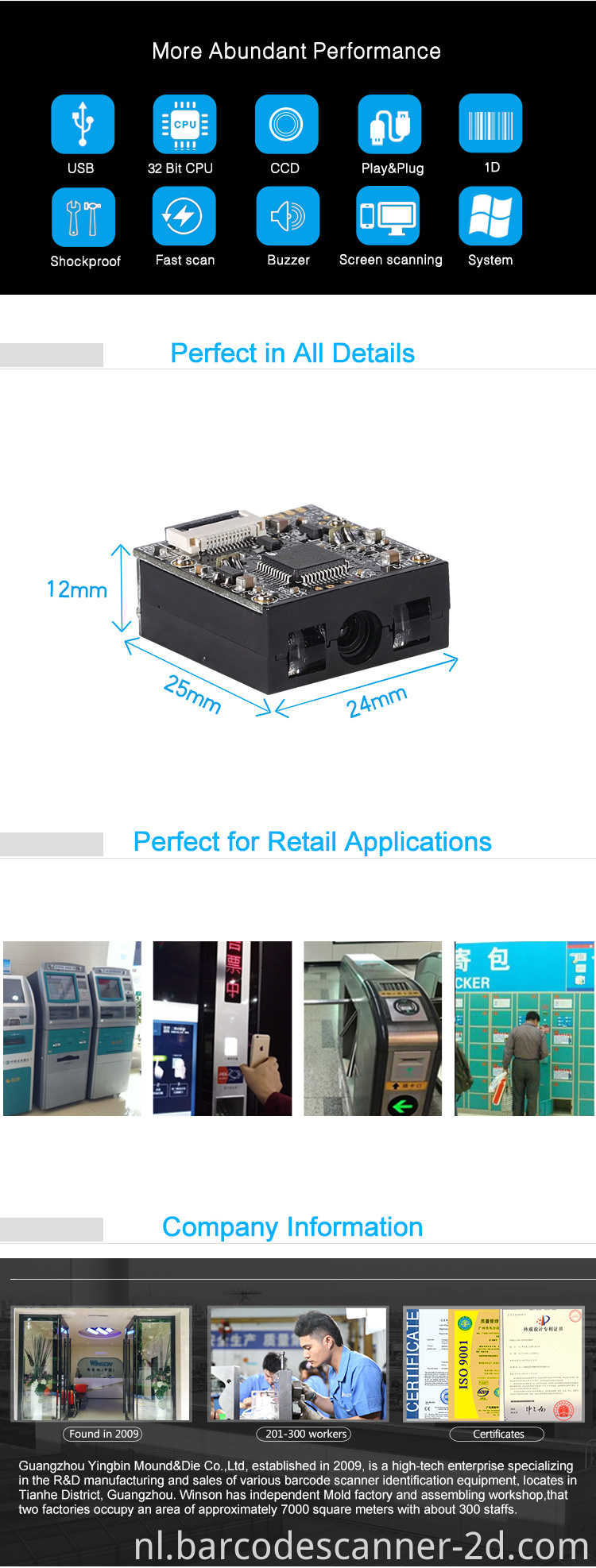

Dimension(L*W*H): 24mm*25mm*12mm

Weight: 6g

certificaat: Ce, Rohs

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Aangepaste verpakking (onderhandeld)

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

Uitstekende kwaliteit goedkope prijs ccd streepjes code lezer draagbaar 1D 2D scanner barcode

Klein formaat, eenvoudig te integreren in elk apparaat, vooral voor limietruimtetoepassingsscannermodule .

Krachtige decoderingscapaciteit voor de meeste 1D- en 2D -codes kan onvolledige en fuzzy codes barcode -engine lezen.

Functies

1.OEM CCD Barcode Scanner Module 1D Scanner Engine For Vending Machine.

2.CCD Linear Sensor,support read 1d paper and screen barcodes.

3.Support multiple keyboard language: USA, Germany, Italy, Spanish,Turkey and so on.

4.Support add a prefix/suffix, delete the last four characters, interlaced upload data...

product beschrijving

Barcode Scanner Engine

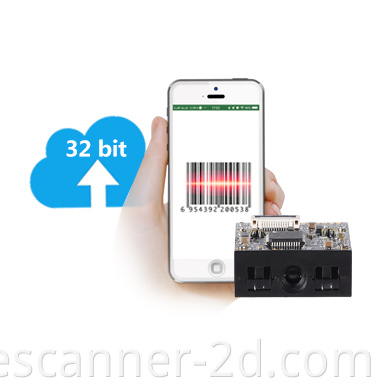

Better scanning performance 32-bit CPU, scanning code speed up to 350 scans per second. Support bidirectional scanning Accurate scanning, the error rate is 1 / 5,000,000.

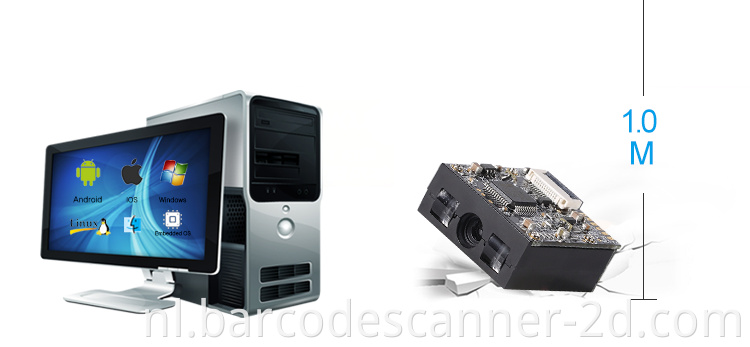

Compatibility Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.	Mechanical Shock After 1.0m drop onto concrete surface, still work as usual,shockproof and Anti-broken.
