Wireless QR -code -lezer Android Handheld

Wireless QR -code -lezer Android Handheld

$25.51-49 Others

$22.550-199 Others

$19.5≥200Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

WNL-6000g

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WNL-6000g

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD, CMOS

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Products Status: Stock

Type: Laser Handheld Barcode Scanner

Scan Element Type: Laser

Colour Depth: 32 Bit

Interface Type: usb, PS/2, RS232

Max Paper Size: N/A

Optical Resolution: 5mil

Scan Speed: 100±20 scans/second

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

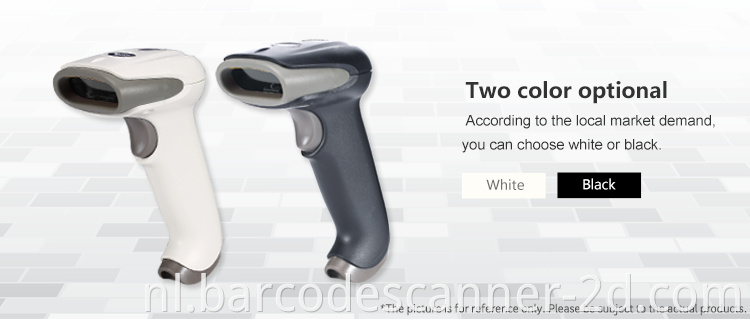

Color: Black

Naam van product: Portable Barcode Scanner

Product Type: Portable Laser Scanner

Interface: RS-232/RS-485/USB HID KEYBOARD/PS2/USB VCP

Light Source: 650nm Visible Laser Diode

Scan Method: Bi-directional

Scan Rate: 100+-20 scans/second

Curvature: R≥15 mm (EAN8),R≥20 mm (EAN13)

Min .PCS Value: >30%UPC/EAN 13(13mil)

Voltage: DC5V+-10%

Current: Max 135ma

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Brown Box Packing of aangepaste verpakking (onderhandeld) 1 stcs/doos, 20/50 stcs/doos

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

Uitstekende decoderingsprestaties Laser Bar Code Reader Portable

1D Embed Scan Module

Factory Direct Sale, Low Prijs High Performance Barcode Scanner voor magazijn .

Met MINI USB-ontvanger, plug and play ccd fix-gemonteerde scanner .

2d Scanner Barcode

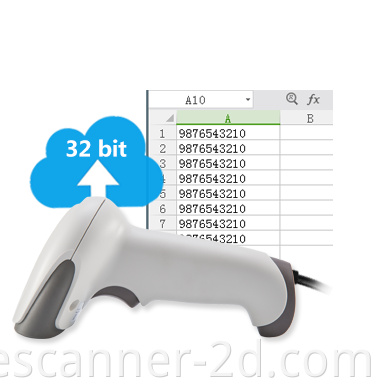

Better scanning performance 32-bit CPU, scanning code speed up to 120 scans per second. Support bidirectional scanning Accurate scanning, the error rate is 1 / 5,000,000.

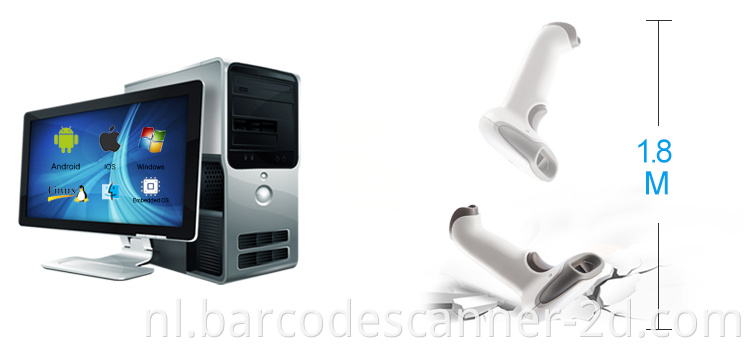

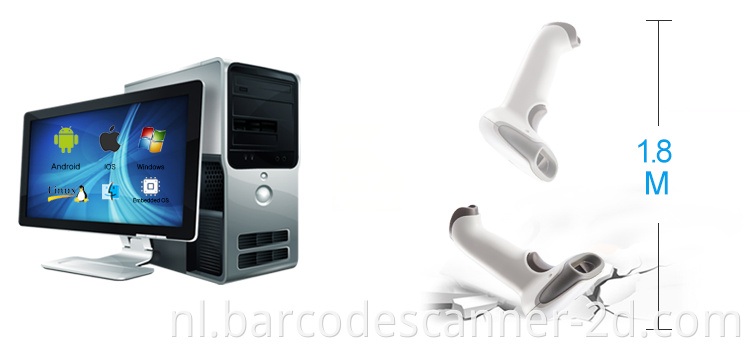

Compatibility Compatible with the current system used by the general public, such as Windows, Android, Mac OS, IOS, Linux, and so on.	Mechanical Shock After 1.8m drop onto concrete surface, still work as usual,shockproof and Anti-broken.

1. Support 1d lange barcodes:
Winson WNL-6000 Laser Barcode-scanner kan 1D Long Barcode lezen welke lengte meer dan 10 cm is, en het kan ook de 1D-streepjescode onder het directe zonlicht lezen.
2. Installeer handig, werk eenvoudig:
Plug and Play: Geen enkele stuurprogramma of app nodig, USB 2.0 kabelbedraaidaansluiting, voeg de gegevenskabel in POS, computer of kassa, u kunt beginnen met scannen.

technical parameters
Electrical Characteristics
Interface	RS-232/USB HID KEYBOARD/USB VCP/RS-485/PS2
Voltage requirement	DC 5V±10%
Current consumption	Max:135mA
Optical Characteristics
light source	650nm visible laser diode
Performance Characteristics
Operating mode	single read multiple read Continuous read
Scan Rate:	100 scans/second± 20 scans/second
Decode angle	Pitch angle:±35° Skew angle:±75° Tilt angle:±40°
curvature	R≥15 mm (EAN8),R≥20 mm (EAN13)(resolution=0.26mm,PCS=0.9)
Min resolution	SR:0.127/5mil(PCS 0.9) HD:0.08/3.2mil(PCS 0.9)
Min .PCS value	>25%UPC/EAN 13(13mil)
error rate	1/500W
Language	multiple languages

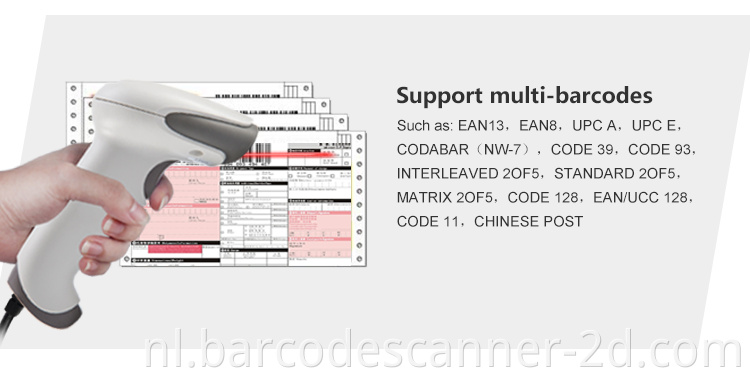

Identification	EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST
Physical Characteristics
Dimensions	70mm95mm168mm(LWH)
Weight	132.4g
Environmental Characteristics
Temp	-20°-65°C / -4°- 149°F((operation) ) -30°- 70°C /-22°- 158°F(storage)
Humidity	5 - 90% (operation) ) 5 - 90% (storage)
Ambient Light:	fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Shock drop test	1.5m drop onto concrete surface
MBTF	30,000 hours except laser diode (10.000 hours) and except mirror scan unit (10,000 hours)
Regulatory
Laser Safety	JIS-C-6802 Class 2
Electrical Safety	UL 60950,EN/IEC 60950
EMI/RFI	FCC Part 15 Class B,EN 55024/CISPR 22
Environmental	RoHS
