CMOS 2D Wireless 2.4G -lezer

$351-49 Others

$2950-199 Others

$25≥200Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

WNI-6712/V

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WNI-6712/V

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CMOS

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 16 Bit

Interface Type: Usb

Max Paper Size: N/A

Optical Resolution: 648 X 488 Pixels

Scan Speed: 30 fps

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Interface: USB HID KEYBOARD(Wireless receiver)

Photo Sensor: CMOS array sensor

Voltage Requirement: DC5V±10%

Battery Capacity: 1500mah

Charging Time: 4.5H

Min Resolution: 1D≥4mil,2D≥10mil

Min.PCS Value: >15%UPC/EAN 13(13mil)

Dimension (L*W*H): 95mm*67mm*168mm(L*W*H)

Weight: 186

certificaat: Ce, Rohs

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Brown Box Packing of aangepaste verpakking (onderhandeld) 1 stcs/doos, 20/50 stcs/doos
Afbeeldingsvoorbeeld	:

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

Ondersteuning van de RS232, USB, TTL, Micro USB -interface CCD Barcode -scanner .

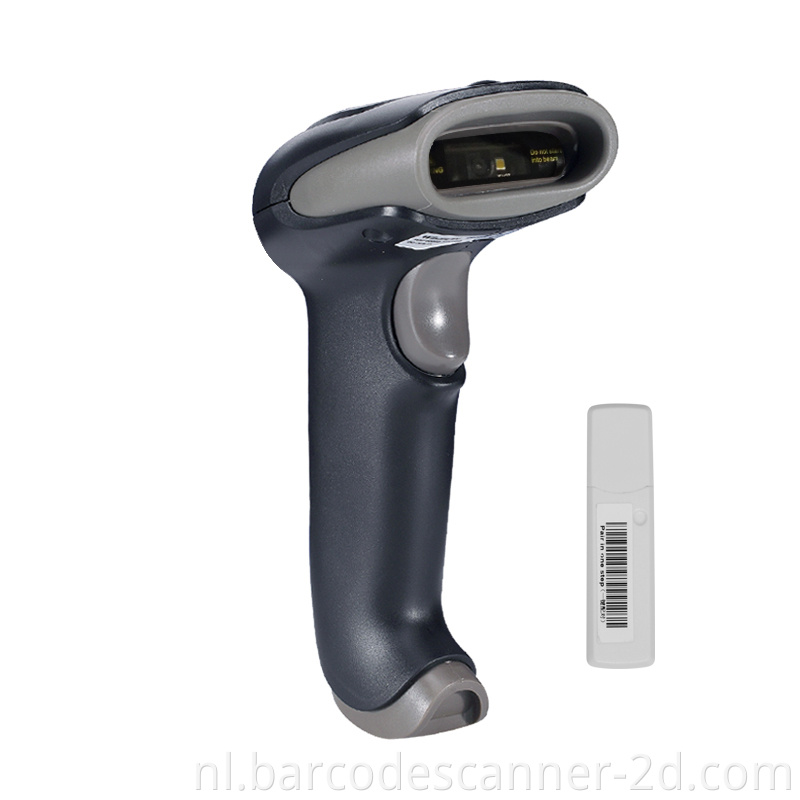

Met Mini USB -ontvanger, plug and play, ergonomisch ontwerp, comfortabel om een kleine barcodescannermodule vast te houden.

Winson WNI-6712/V Handheld Barcode Scanner CMOS 2D Wireless 2.4G Reader brede bereik Bar Code Reader

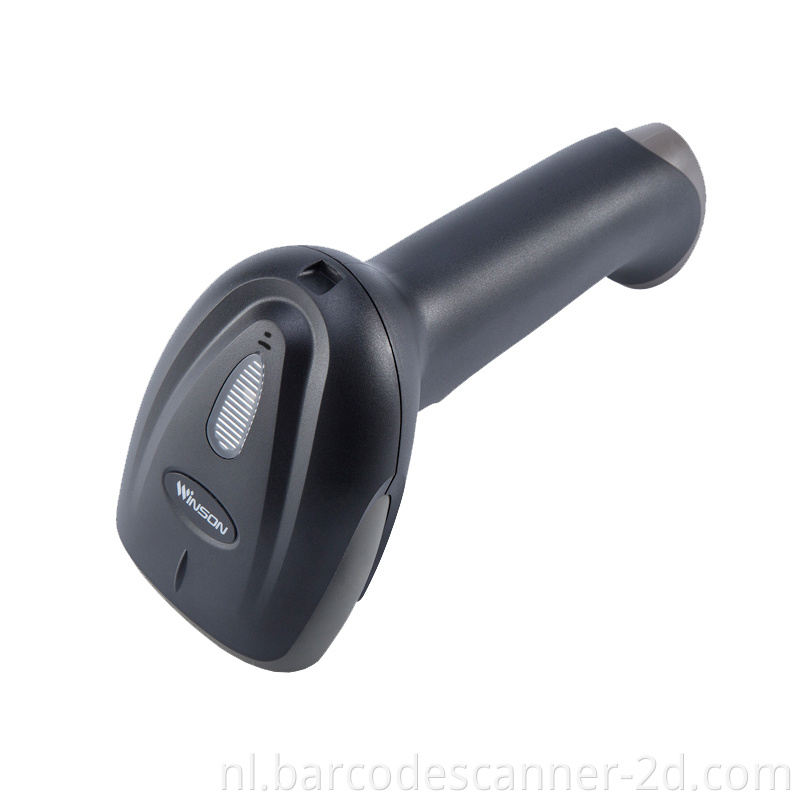

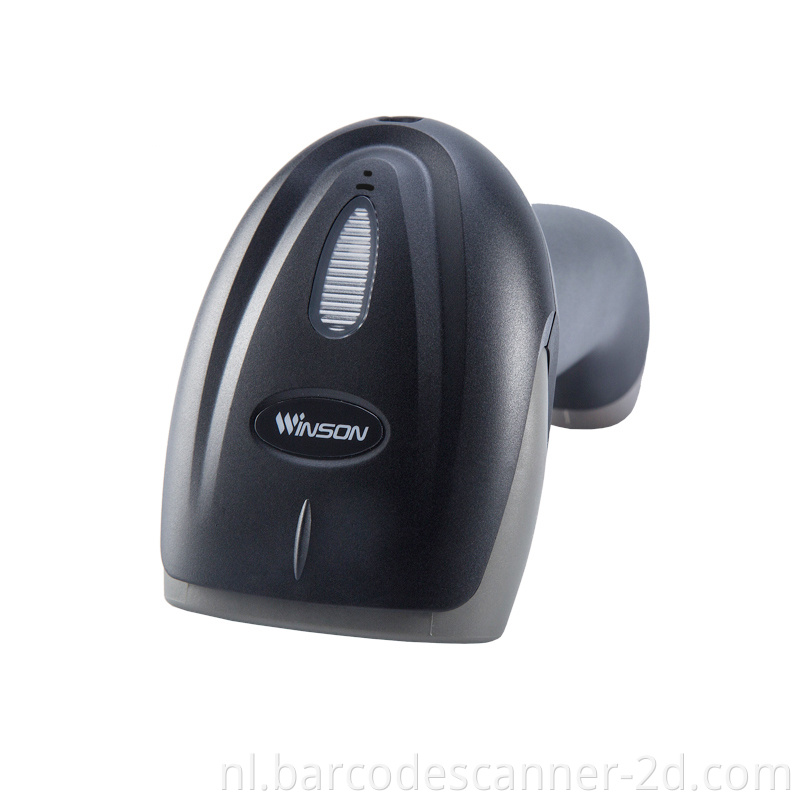

Wireless 2.4G Reader

winson company

Product detail

Technical Parameters
Electrical Characteristics
Interface	USB HID KEYBOARD(Wireless receiver)
Current consumption	Max:120mA,Min:50mA
Optical Characteristics

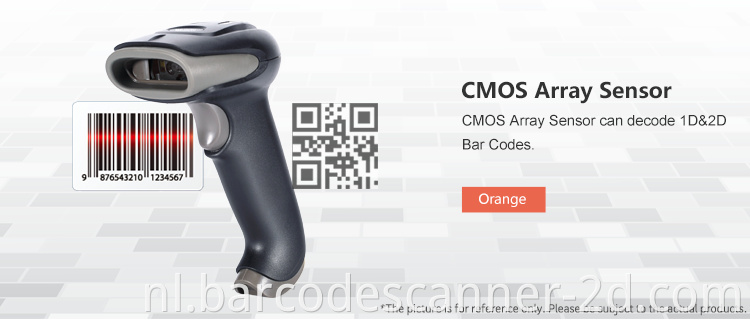

Photo sensor	CMOS array sensor
Sensor Resolution	648x488 Pix
Light source	White LED*1
Aim light source	Red Bar led
Performance Characteristics
Decode angle	Pitch angle:±60° Skew angle:±60° Tilt angle:±180°
Field of View	46°(H),35°(V)
Min resolution	1D≥4mil 2D≥10mil
Min.PCS value	>15%UPC/EAN 13(13mil)
Language	Multiple languages
Identification	1D: Codabar,Code128,Code11,Code32,Code39,Code93,Composite,EAN/UPC,EAN-8,EAN-13,GS1 DataBar Expanded,GS1 DataBar Limited,GS1 DataBar Omnidirectional,Hong Kong 2 of 5(China Post),Interleaved 2 of 5,Matrix 2 of 5,Pharmacode.RSS-14,RSS-LIMITED,RSS-EXPANDED,Industrial 2 of 5,Telepen,Trioptic Code, UPC-A,UPC-E 2D:Aztec Code,Codablock F,DOT_CODE, HANXIN, Maxicode,MicroPDF417,Micro QR Code,MSI,PDF417,QR Code, DataMatrix
Physical Characteristics
Dimensions	95mm×70mm×168mm(L x W x H) Receiver:83mm18mm13mm(LWH)

Weight	Scanner:186g Receiver:16g
Environmental Characteristics
Temp	0° to 50°C / 32° to 122°F(operation) /-10° to 60°C /14° to 140°F(storage)
Humidity	20 - 85% (operation) ) 20 - 95% (storage)
Ambient Light	fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max

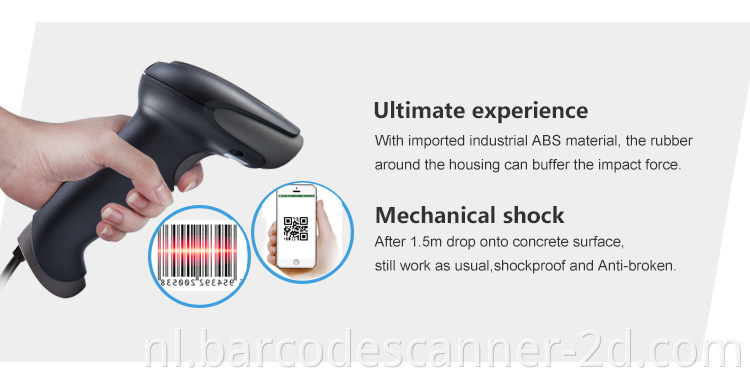

Shock drop test	1.5m drop onto concrete surface
