Winson Supermarket Betaling Barcode Scanner

Winson Supermarket Betaling Barcode Scanner

$481-49 Others

$40.550-199 Others

$35.5≥200Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

WNC-6083B/V

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WNC-6083B/V

merk: Winson

Certificatie: ce

Product Status: Voorraad

Type Scanelement: CCD, CMOS

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Private Mold: Yes

Products Status: Stock

Type: Wireless 1D Scanner

Scan Element Type: CCD Barcode Scanner

Colour Depth: 32 Bit

Interface Type: usb, COM, PS/2

Max Paper Size: N/A

Optical Resolution: 2500 Pix

Scan Speed: 350+50(scans/second)

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Naam van product: Wireless 1D Scanner

Product Type: 1D CCD Barcode Scanner

Interface: RS-232/USB HID KEYBOARD/USB VCP

Photo Sensor: CCD linear sensor

Communications: RF433

Voltage Requirement: 5VDC±10%

Print Contrast: 20%UPC/EAN 13(13mil)

Min.Resolution: 0.101mm/4mil(PCS 0.9)

Operation Mode: Read-time mode/ Inventory mode/Cache mode

Shock Drop Test: 1.5m drop onto concrete surface

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Aangepaste verpakking (onderhandeld)

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

Barcode Scanner

Barcode -scanner voor magazijn De leesafstand kan omhoog zijn tot 20 cm Highand De informatie in de streepjescode kan snel worden gelezen.

Wide bereik barcode -lezer compact, lichtgewicht, ergonomisch ontworpen en comfortabel om te voelen.

Barcode -scanner 360 Uitstekende duurzaamheid: stofbestendige en waterbestendige IP54, terwijl ik 1,5-meter druppels naar de cementvloer weerstaan, waardoor betrouwbare operationele prestaties worden gewaarborgd in het geval van vloeibare spatten, druppels en botsingen bij dagelijks gebruik.

Winson Wireless 2D Stationaire Barcode Scanner Supermarkt Betaling Barcode Scanner

Barcode Scanner

RF433 wireless transmission The transmission range up to 100 meters (In empty area). Superior reading performance 32-bit CPU, scanning code speed up to 360 scans per second.


2000 mAh lithium battery Supports 12 hours continuous normal manual trigger working,compatible with wire and wireless working mode.	Mechanical Shock After 1.8m drop onto concrete surface, still work as usual,shockproof and Anti-broken.

433 draadloze technologie;
Het prachtige ontwerp, goede toepasbaarheid;
Scherm en papieren barcode om papierloos kantoor te bereiken.

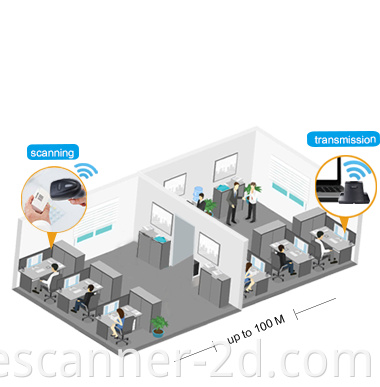

1.RF433 draadloze transmissietechnologie
Winson WNC-6083B/V Barcode-scanner kan 100 meter draadloze transmissie bereiken in een open gebied, heeft een groot geheugen van 100.000 pcs 13 bytes barcodes en realtime-modus, voorraadmodus en cachemodus.

technical parameters
Wireless specifications
Communications		433
Communication frequency		430-440MHz
Transmission range		≤100M(In empty area 100M )
Data rate		10kbps
Memory		100,000@13Byte barcode
Battery capacity		2000mAh (Lithium battery)
Charging time		6H
The life time of the full charge		6h(continuous reading situation) 12h(Manual reading situation) More than 15 days(Stand-by time)

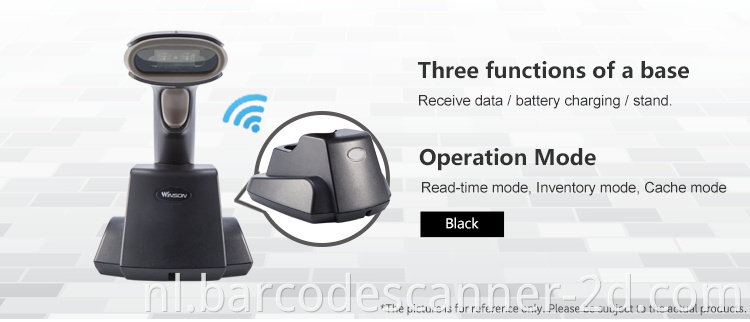

Communication mode		Read-time mode/Inventory mode/Cache mode
Electrical Characteristics
Interface	RS-232/USB HID KEYBOARD/USB VCP/RS-485
Voltage requirement	DC 5V±10%
Current consumption	Max:138mA
Optical Characteristics
Photo sensor	CCD linear sensor
Sensor Resolution	2500pix
light source	632nm red led
Performance Characteristics
Scan Rate:	350±50 (scans/second)
Decode angle	Pitch angle:±30° Skew angle:±75° Tilt angle:±45°
Min resolution	0.115mm/4.5mil(PCS 0.9)
Min.PCS value	>20%UPC/EAN 13(13mil)
Language	multiple languages
Identification	EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST
curvature	R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9)
Physical Characteristics
Dimensions	70mm95mm168mm(LWH)
Weight	172g Scanner:172g 188g Receiver:188g
Environmental Characteristics
Temp	-20°-65°C / -4°-149°F((operation) ) -30°- 70°C /-22°-158°F(storage)
Humidity	5 - 90% (operation) ) 5 - 90% (storage)
Ambient Light	fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Shock drop test	1.5m drop onto concrete surface
Regulatory
Electrical Safety	UL 60950,EN/IEC 60950
EMI/RFI	FCC Part 15 Class B,EN 55024/CISPR 22
Environmenta	RoHS
