Auto scanning 2d CMOS motor paspoort

$246.51-49 Others

$215.550-99 Others

$185.5≥100Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express
Haven:	guangzhou

Option:

WGI-2040HD

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WGI-2040HD

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD, CMOS

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Retourneren en vervangen

Products Status: Stock

Type: Mini Scan Engine

Scan Element Type: Cmos

Colour Depth: 32 Bit

Interface Type: usb, SCSI, IEEE 1394, COM, PS/2, Other

Max Paper Size: N/A

Optical Resolution: 640X480 pixels

Scan Speed: 60fps

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Naam van product: Mini Scan Engine

Interface: USB HID KEYBOARD/USB VCP or RS-232

Voltage Requirement: DC 5V±10%

Current Consumption: Max:320mA

Photo Sensor: CMOS array sensor

Operating Temperature: 0°to 50°C / 32° to 122°F

Storage Temperature: -10°to 60°C /14°to 140°F

certificaat: Ce, Rohs

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Aangepaste verpakking (onderhandeld)

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

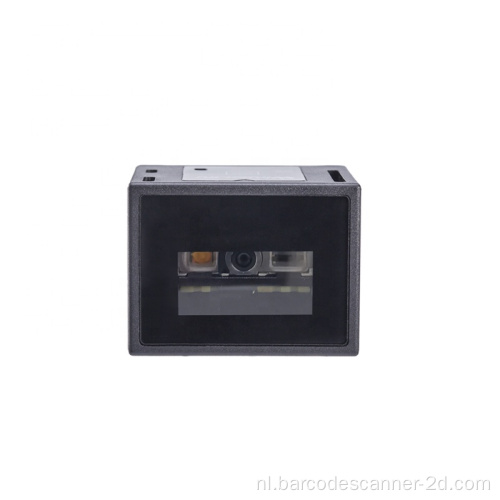

Winson WGI-2040HD Auto Scanning 2d CMOS Engine Paspoort Barcode Scanner voor magazijn

Barcode -scanner 360 -ondersteuning om het voorvoegsel of het achtervoegsel voor of na gescande gegevens te plaatsen, de zoemer, identiteitsstreepjescode Type in-/ uitschakelen, toetsenbordtoetsen toevoegen (tab, CR & LF, enz.)

Toepassingsvelden: supermarkt, detailhandel, magazijn, logistiek, bibliotheek, medische enz. 1D Code Reader Engine .

Functies

barcode scanner

winson company

Product detail

Technical parameter
Electrical Characteristics
Interface	RS-232/USB HID KEYBOARD/USB VCP
Voltage requirement	DC5V±10%
Current consumption	Max :320mA
Optical Characteristics
Photo sensor	CMOS array sensor
SENSOR RESOLUTION	640x480 pixels
light source	White LED x1
Aim light source	Green bar LED
Performance Characteristics
Decode angle	Pitch angle:±50°;Skew angle:±50°;Tilt angle:±180°
Field of View	Level:38°,vertical:28.9°
Min resolution	1D:0.050mm/2mil(PCS 0.9) 2D:0.076mm/3mil(PCS 0.9)
Min.PCS value	>20%UPC/EAN 13(13mil)
Keyboard language	Multi keyboard language
Data editing	Support for custom data output
Decode Capability	1D:JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET 2D: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code

Physical Characteristics
Dimensions	42mm×40mm×32mm(L×D×H)
Weight	85g
Prompt mode	LED indicator and buzzer
Environmental Characteristics
Temp	-20°- 65°C (operation) , -30°- 70°C (storage)
Humidity	20- 80% (operation) ;20 - 90% (storage)
Ambient Light	0-80,000 LUX
Seismic capacity	1.5 meters crop down to the concrete floor
