Fixed Barcode Scanner Mini Barcode Scanner

Fixed Barcode Scanner Mini Barcode Scanner

$502-49 Others

$4650-199 Others

$40≥200Others

betaling Type:	L/C,T/T,Paypal,D/P
Incoterm:	FOB,CIF,EXW,DDP
vervoer:	Land,Air,Express,Ocean,Others
Haven:	guangzhou

Option:

WGI-3220

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Private Mold: Yes

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 32 Bit

Interface Type: Usb, Rs232

Max Paper Size: N/A

Optical Resolution: 648*488 pix

Scan Speed: 350+-50 Scans/second

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Interface: RS-232/USB HID KEYBOARD/USB VCP

Compatibility: Win OS/Max OS/Linux/Android/IOS/Embedded OS

Photo Sensor: CMOS array sensor

Voltage Requirement: DC5V±10% ; Max 280ma

Decode Capabilities: both 1D and 2D

Scan Angle: Pitch angle:±65° Skew angle:±60° Tilt angle:±180°

Min Resolution: SR:0.127/5mil(PCS 0.9) HD 3mil(0.076mm)

Min PCS Value: >25%UPC/EAN 13(13mil)

Dimensions: 68mm x 48mm x 23.5mm

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Brown Box Packing of aangepaste verpakking (onderhandeld) 1 stcs/doos, 20/50 stcs/doos
Afbeeldingsvoorbeeld	:

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

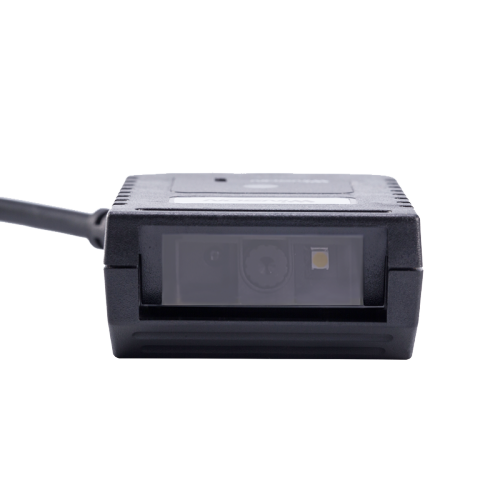

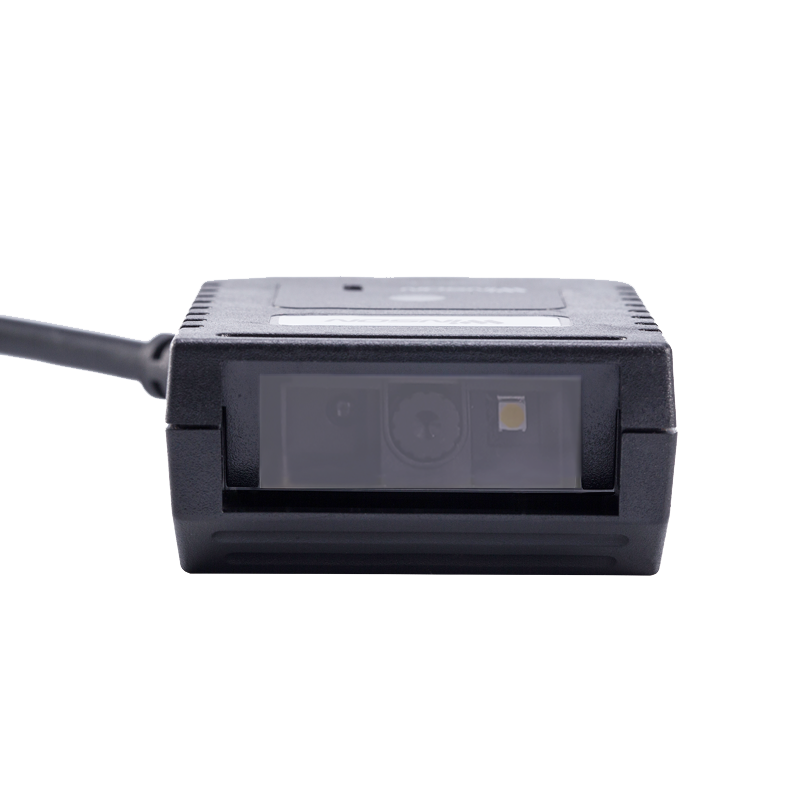

WGI-311 1D 2D Fix Mounted Barcode Scanner CMOS Auto gedetecteerd High Visible Scanning Reader voor industriële transportband

Functies

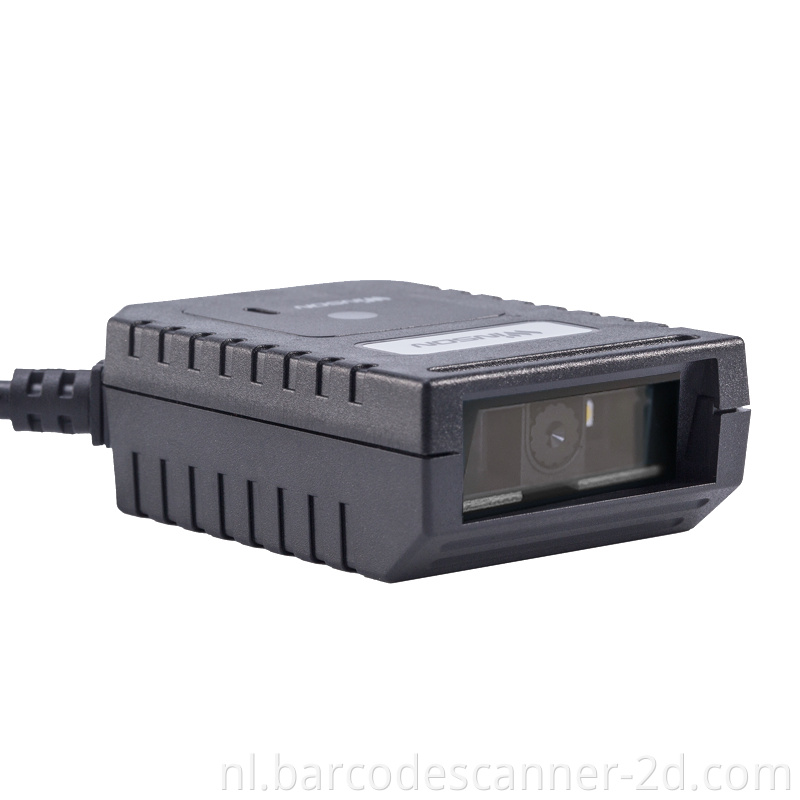

mini barcode Scanner

winson company

Technical Parameters
Electrical Characteristics
Interface	RS-232/USB HID KEYBOARD/USB VCP
Voltage requirement	5VDC±10%
Current consumption	Max: 135mA
Optical Characteristics
Photo sensor	CMOS array sensor
Sensor resolution	648X480 pixels
Light source	625nm white LED
Aim light source	617nm red LED bar
Performance Characteristics
Scan rate	Up to 30fps
Decode angle	Pitch angle: ±65° Skew angle: ±60° Tilt angle: ±180°
Min resolution	5mil(0.127mm)
Min.PCS value	>30%UPC/EAN 13(13mil)
Field of view	34°(H),26°(V)
Identification	1D:UPC/EAN,Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI, GS1 Databar 2D:QR,PDF417,Data Matrix


Physical Characteristics
Dimensions	68 mm x 48 mm x 23.5mm(2.68in * 1.89in * 0.93in)
Weight	106g(3.74oz)
Case material	PC Black
Environmental Characteristics
Temp	-30 to 60 °C / -22 to 140 °F (operation) -40 to 70 °C / -40 to 158 °F (storage)
Humidity	5%-90%
Ambient light:	fluorescent light 10,000 lx max , direct sun light 100,000 lx max ,white light 10,000 lx max
Regulatory
Electrical safety	IEC62471:2006 Exempt Group
Environmental	RoHS Compliant
