Winson WNC-5060G Handheld Barcode Scanner

Winson WNC-5060G Handheld Barcode Scanner

$181-49 Others

$1650-199 Others

$12≥200Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

WNC-5060g

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WNC-5060g

merk: Winson

Certificatie: ce, andere

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Products Status: Stock

Type: CCD Barcode Scanner

Scan Element Type: Ccd

Colour Depth: 32 Bit

Interface Type: usb, COM, PS/2

Max Paper Size: N/A

Optical Resolution: 13mil

Scan Speed: 350 scans/second

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Naam van product: WNC-5060g CCD Barcode Scanner

Interface: USB HID KEYBOARD/USB VCP/RS-232

Light Source: 632nm red LED

Photo Sensor: CCD linear sensor

Sensor Resolution: 1500pix

Voltage Requirement: DC 5V+-10%

Min .PCS Value: >30%UPC/EAN 13(13mil)

Mechanical Shock: 1.5m drop onto concrete surface

Scan Rate: 350+-50 (scans/second)

certificaat: Ce, Rohs

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Brown Box Packing of aangepaste verpakking (onderhandeld) 1 stcs/doos, 20/50 stcs/doos

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

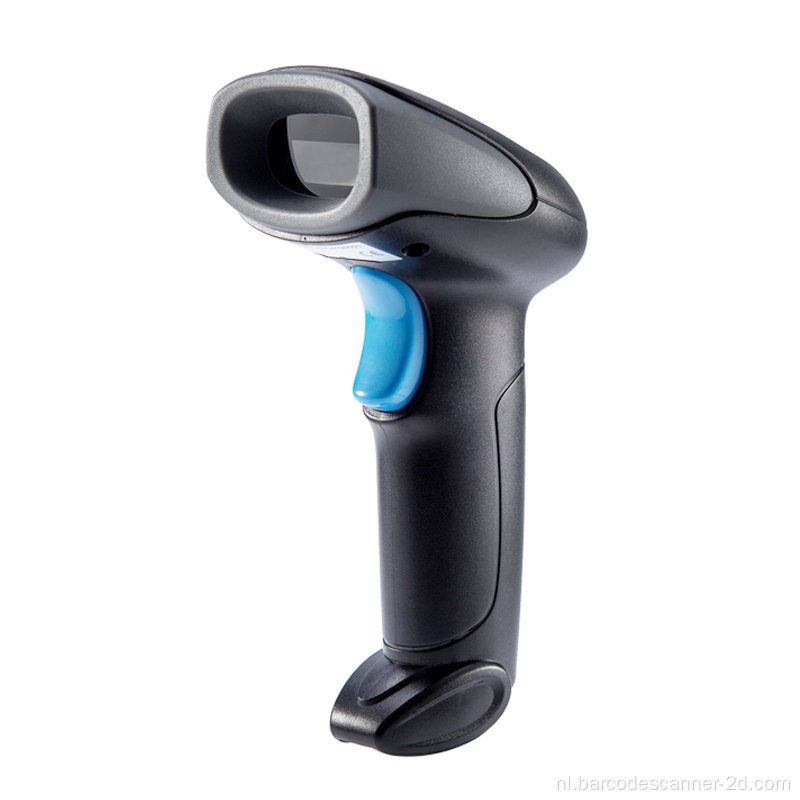

WNC-5060G Wired Handheld CCD Linear CCD Barcode Scanner

Met Mini USB -ontvanger, plug and play, ergonomisch ontwerp, comfortabel om de QR -codescannermodule te houden.

Barcode -scanner -snoerondersteuning om het voorvoegsel of het achtervoegsel voor of na gescande gegevens te plaatsen, de zoemer, het identiteitsstaafcode Type in-/ uitschakelen, toetsenbordtoetsen toevoegen (tab, CR & LF, enz.)

2 kleuren optioneel: zwart+blauw of zwart+oranje

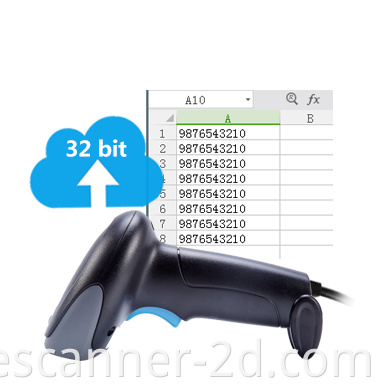

Better scanning performance 32-bit CPU, scanning code speed up to 350 scans per second. Support customized functions Add prefix, delete the last four, interlaced upload

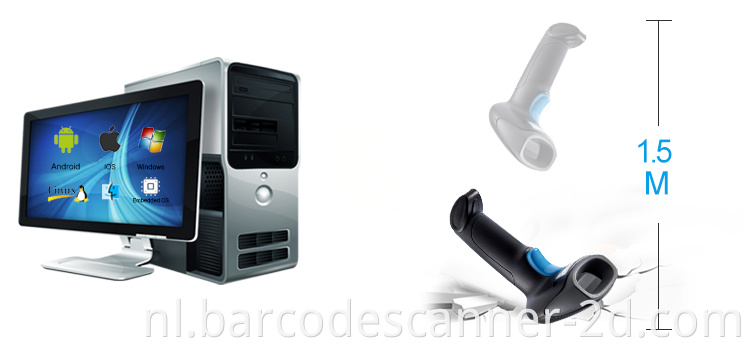

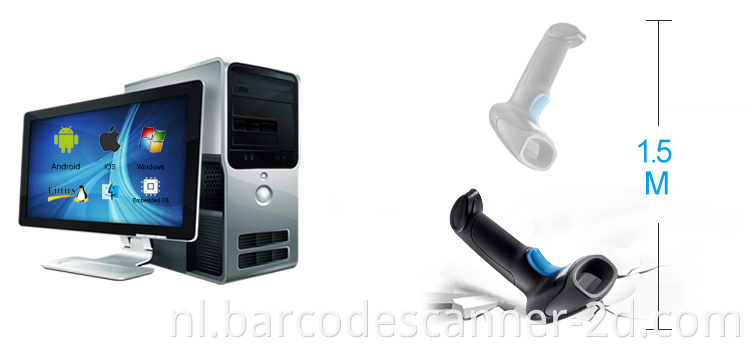

Plug and play Plug and play, no need to manually install the driver (for USB HID KEYBOARD, USB VCP,RS-232).	Mechanical shock After 1.5m drop onto concrete surface, still work as usual,shockproof and Anti-broken.

Handheld Barcode Scanner winson company

Product detail

Technical Parameters
Electrical Characteristics
Interface	RS-232/USB HID KEYBOARD/USB VCP
Voltage requirement	DC5V±10%
Current consumption	Max :115mA
Optical Characteristics
Photo sensor	CCD linear sensor
Sensor resolution	1500Pix
Light source	632nm Red LED
Performance Characteristics
Scan rate:	350±50 (scans/second)
Decode angle	Pitch angle:±30° Skew angle:±60° Tilt angle:±30°
Min resolution	0.127mm/5mil(PCS 0.9)
Min.PCS value	>30%UPC/EAN 13(13mil)
Curvature	R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm, PCS=0.9)
Language	Multiple languages
Error rate	1/500W
Identification	EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39, CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,

	CODE 128,EAN/UCC 128,CODE 11,CHINESE POST
Physical Characteristics
Dimensions	97mm×67mm×165mm(L x W x H)
Weight	170g
Environmental Characteristics
Temp	-20°to 65°C ( -4°F to 149°F )(operation) -30°to 70°C (-22°F to 158°F)(storage)
Humidity	5 - 90% (operation) ) 5 - 90% (storage)
Ambient light:	Fluorescent light 4000 lx max
Shock drop test	1.5m drop onto concrete surface
Regulatory
Electrical safety	UL 60950,EN/IEC 60950
EMI/RFI	FCC Part 15 Class B ,EN 55024/CISPR 22
Environment	RoHS
