Winson 2d CMOS Codabar Barcode -lezer

$39.92-49 Others

$34.950-199 Others

$27.9≥200Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

WNI-6610g

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WNI-6610g

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 32 Bit

Interface Type: usb, COM, RS-232

Max Paper Size: N/A

Optical Resolution: 640X480 pixels

Scan Speed: 3mil

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Product Type: QR Code Scanner

Interface: USB HID KEYBOARD/USB VCP or RS-232

Photo Sensor: CMOS array sensor

Voltage Requirement: DC5V±10%

Light Source: White Led

Aim Light Source: 625nm Red Bar LED

Dimensions: 90mm*67mm*168mm

Weight: 120g

Indicator: Beeper, LED

certificaat: Ce, Rohs

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Aangepaste verpakking (onderhandeld) 1 stcs/doos, 20/50 stcs/doos
Afbeeldingsvoorbeeld	:

The file is encrypted. Please fill in the following information to continue accessing it

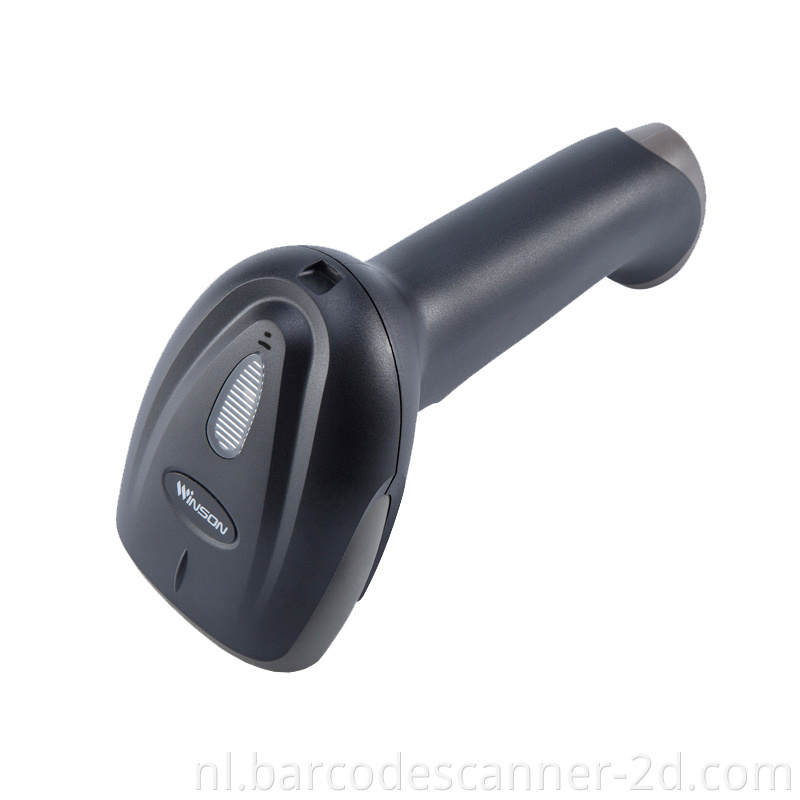

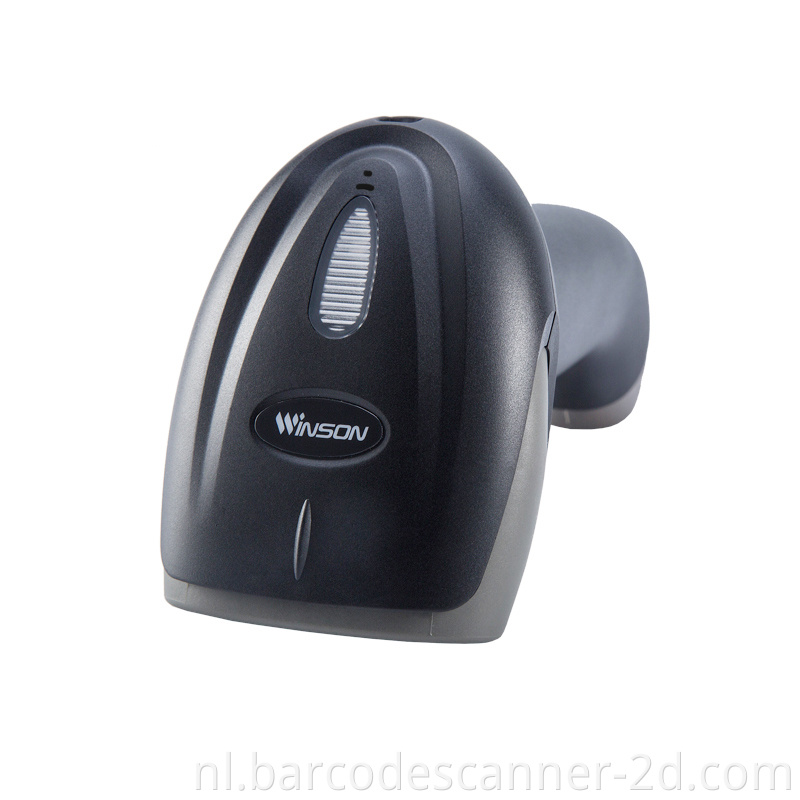

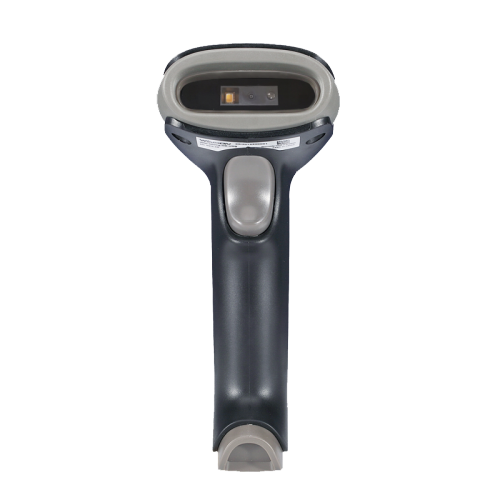

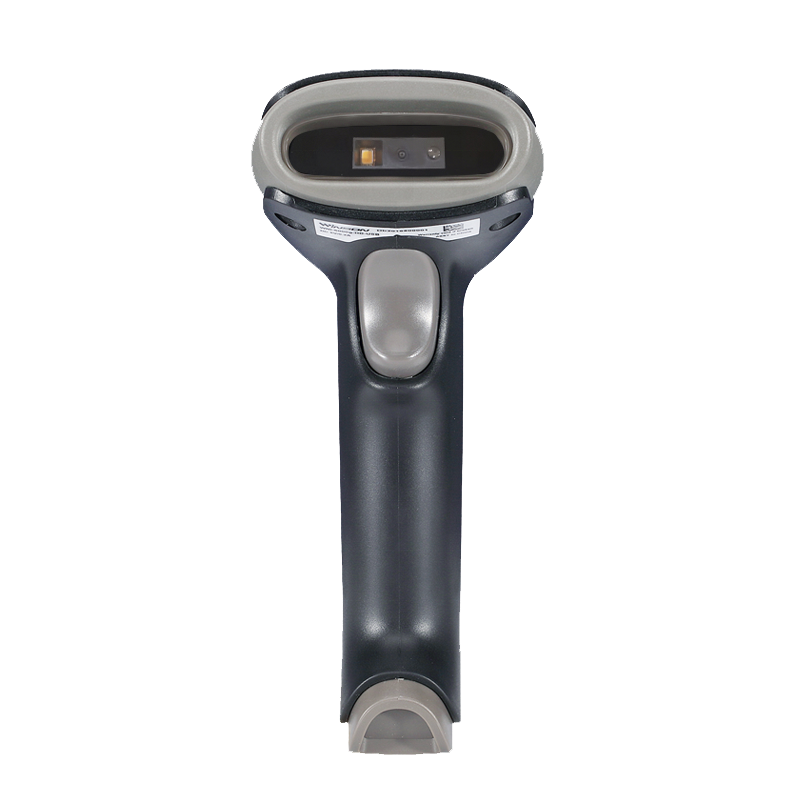

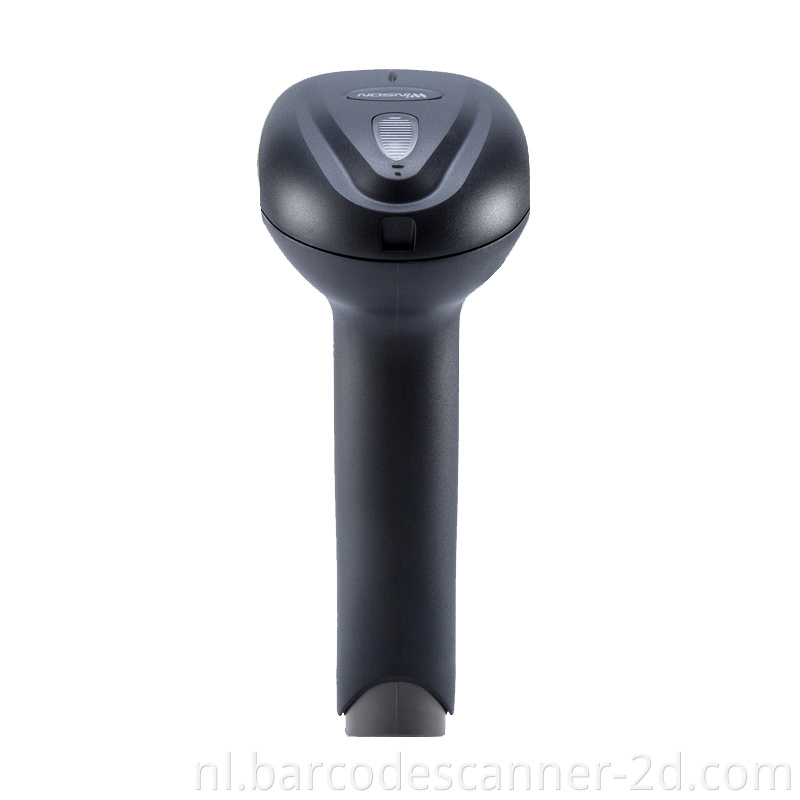

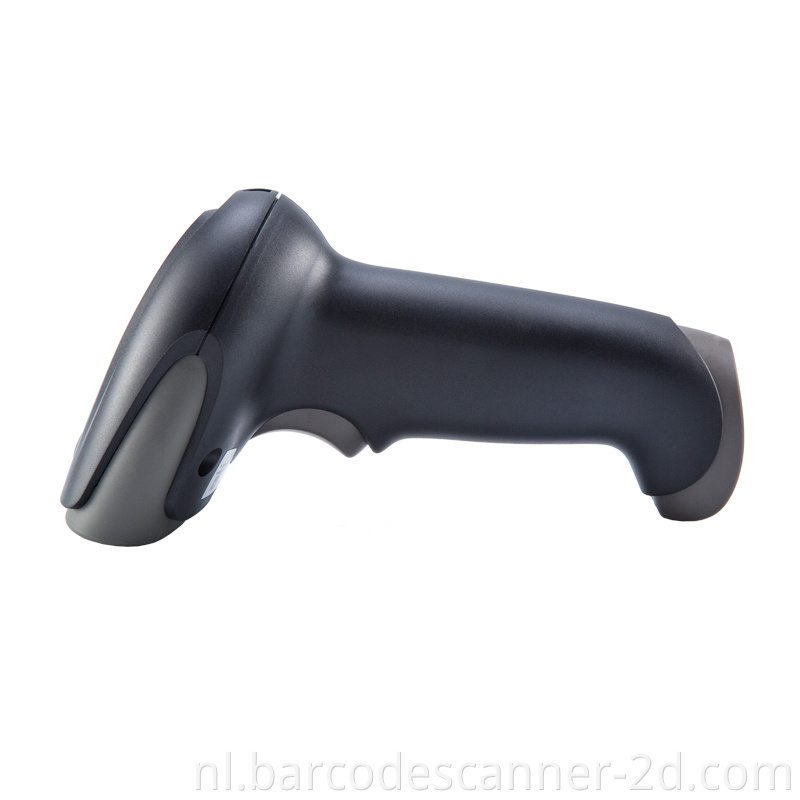

Winson WNI-6610G 2D CMOS Codabar Barcode Reader Wired Handheld Barcode Scanner1



Beschrijving

Winson WNI-6610G hoogwaardige 2D CMOS Wired Handheld Barcode Scanner QR Code Scanner

Handheld computerondersteuning van de toetsenbordindeling van twintig verschillende landen.

Mobiele computer met mini USB -ontvanger, plug and play, ergonomisch ontwerp, comfortabel om vast te houden.

Mobiele terminalondersteuning om het voorvoegsel of het achtervoegsel voor of na gescande gegevens te plaatsen, de zoemer, het identiteitsbarcodetype in-/ uitschakelen, toetsenbordtoetsen toevoegen (tab, CR & LF, enz.)

Productomschrijving

barcode scanner Winson WNI-6610G 2D CMOS Codabar Barcode Reader Wired Handheld Barcode Scanner

Winson WNI-6610G 2D CMOS Codabar Barcode Reader Wired Handheld Barcode Scanner

winson company

Product detail

Technical Specifications
Electrical Characteristics
Interface Supported		USB HID KEYBOARD/USB VCP or RS-232
Input Voltage		DC 5V±10%
Current		<500mA
Optical Characteristics
Image Sensor		CMOS Array Sensor
Sensor Resolution		640X480 Pixels
Light Source		White LED
Aim Light Source		625nm Red Bar LED
Performance Characteristics
Scanning Angle		Pitch angle:±50°; Skew angle:±50°; Tilt angle:±180°
Field of View		45°(H),34°(V)
Min Resolution		≥3mil
Min .PCS value		30% UPC/EAN 13(13mil)
Language		Multiple Languages
Data Edition		Support for custom data output
Decode Capability		1D : Code128,UCC/EAN-128,AIM128,EAN-8,EAN-13,ISBN/ISSN,UPC-E,UPC-A,Interleaved 2 of 5,ITF-6,ITF-4,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5,Code39,Codabar,Code93,Code11,Plessey,MSI-Plessey,RSS-14,RSS-Limited,RSS-Expand so on. 2D: QR ,PDF417 ,Data Matrix
Physical Characteristics
Dimensions		90mm67mm168mm(LWH)
Weight		120g
Indicator		Beeper, LED
Environmental Characteristics
Temperature		-0°-40°C (operation) -10°-50°C (storage)
Humidity		5 - 90% (operation) ) 5 - 90% (storage)
Ambient Light:		Up to 80,000 lx
Shock Drop Test		1.2m drop onto concrete surface
Decoding Depth of Field
Symbology	Resolution		Nearest	Farthest
EAN13	13mil		55mm	300mm
QR CODE	15mil		35mm	190mm
