Ingebed in kiosk CMOS Scan Engine 1D 2D

$40.91-49 Others

$35.550-199 Others

$29.9≥200Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CFR,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

Z4S-320

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: Z4S-320

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD, CMOS, CIS

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 32 Bit

Interface Type: usb, TTL-232

Max Paper Size: N/A

Optical Resolution: 640*480 pix

Scan Speed: 350±50 (scans/second)

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Naam van product: embedded in Barcode scan Module

Connector: 0.5-12P FPC

Interface: TTL-232/USB

Photo Sensor: CMOS array sensor

Voltage / Current: DC 5V ±5%; Max 135ma

Sensor Resolution: 640*480 pixels

Min PCS Value: >25%UPC/EAN 13(13mil)

Compatibility: Win OS/Mac OS/Linux/Android/IOS/Embedded OS

Dimensions (W X D X H): 65mm x 61.2mm x 35.5mm

Weight: 28.7g

certificaat: Fcc, Ce, Rech

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Brown Box Packing of aangepaste verpakking (onderhandeld)
Afbeeldingsvoorbeeld	:

The file is encrypted. Please fill in the following information to continue accessing it

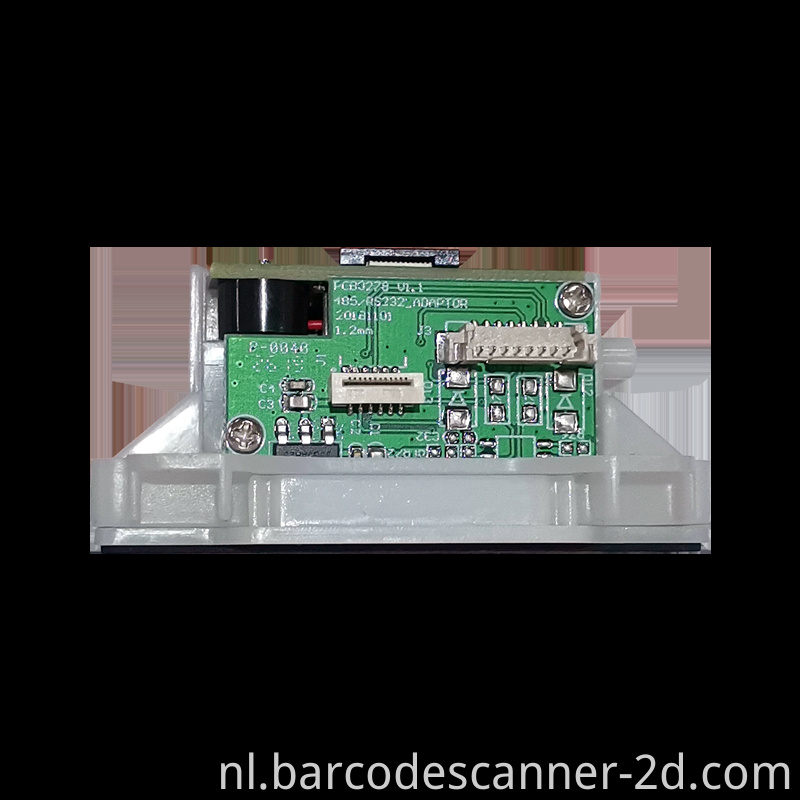

Ingebed in kiosk- of verkoopmachine CMOS -codescanner Module Scan Engine 1D 2D Bar Code voor mobiele betaling1



Beschrijving

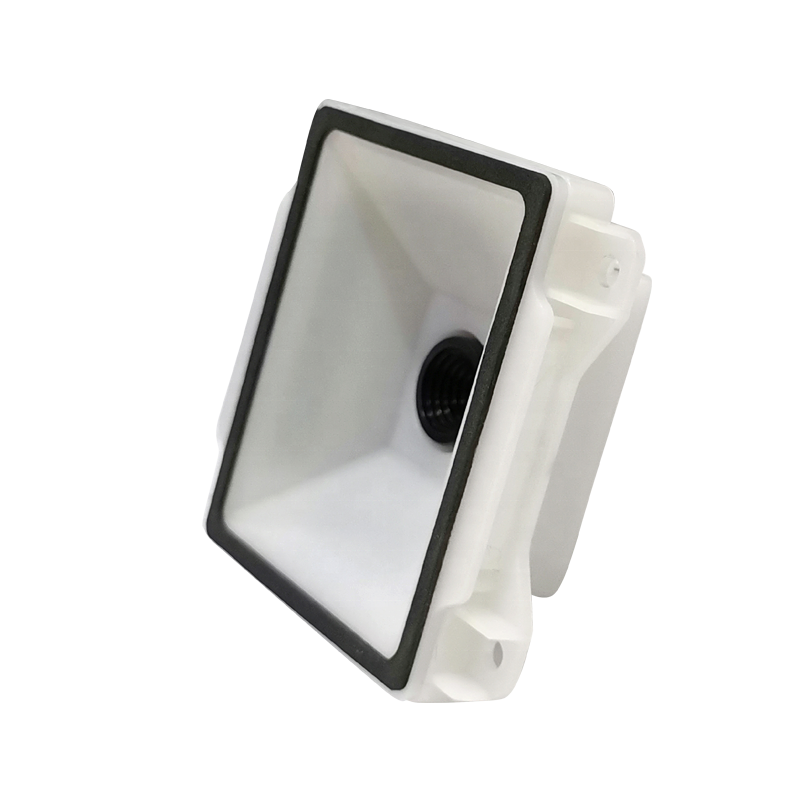

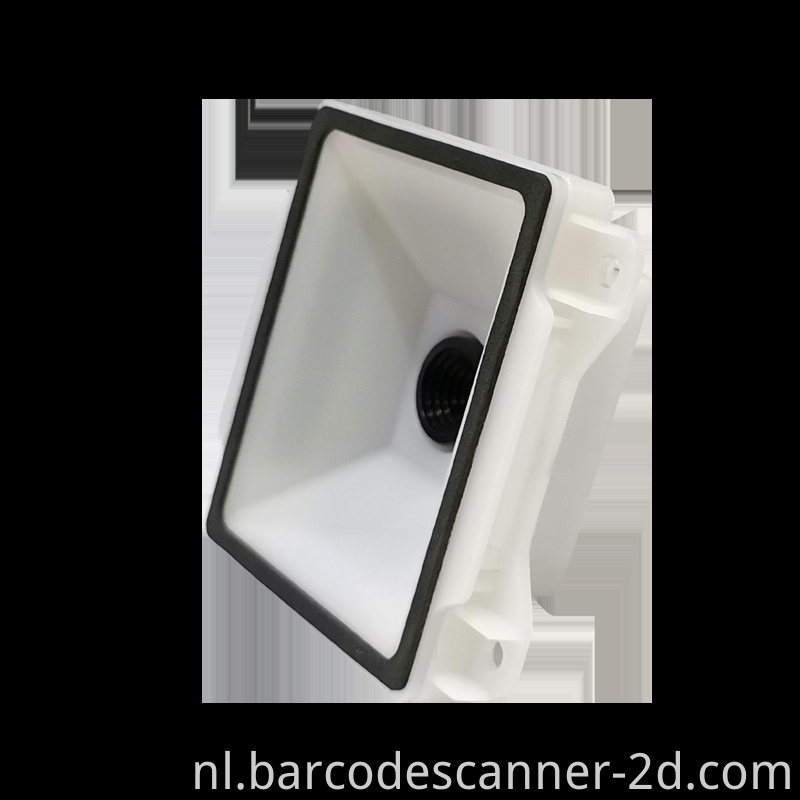

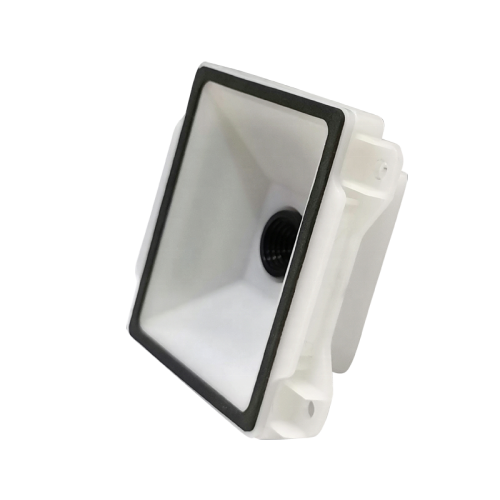

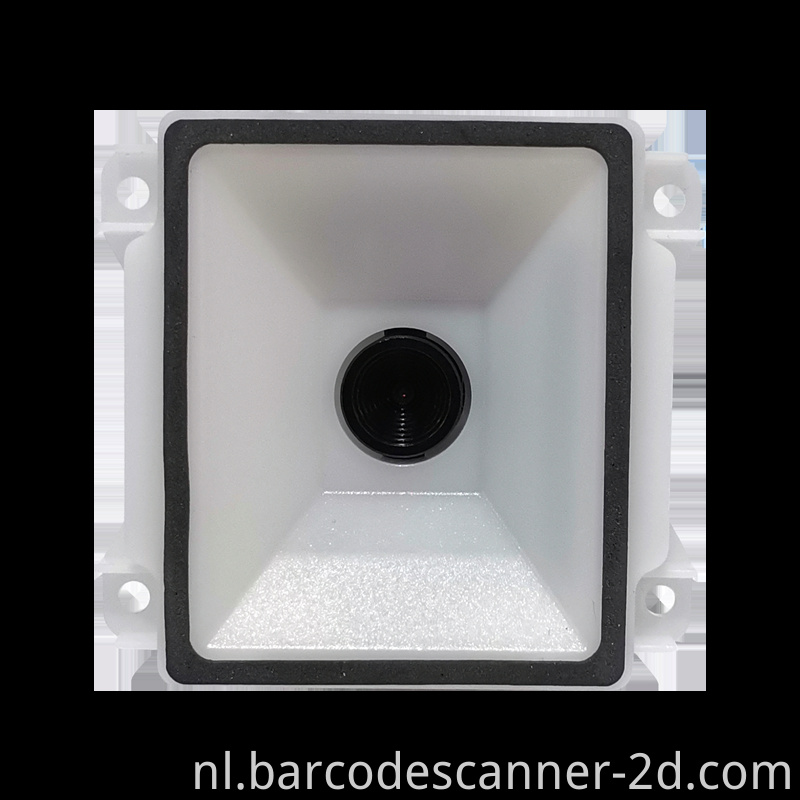

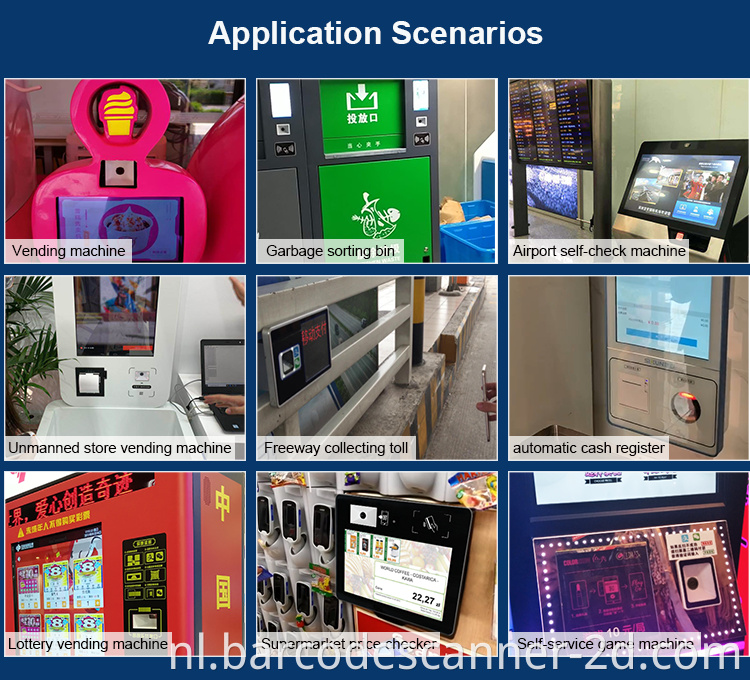

Z4S-320 ingebed in kiosk- of automaat CMOS-codescanner

Mini Auto-Scanning Module Plug and Play, driver-vrij, handig voor gebruik.

OEM Barcode Scanner-module ondersteunt continue/auto-inductie, 2Modes voor optie.

Barcode OEM -module kan de telefoon, computer en ander elektronisch scherm scannen.

barcode scanner Ingebed in kiosk- of verkoopmachine CMOS -codescanner Module Scan Engine 1D 2D Bar Code voor mobiele betaling

barcode scanner

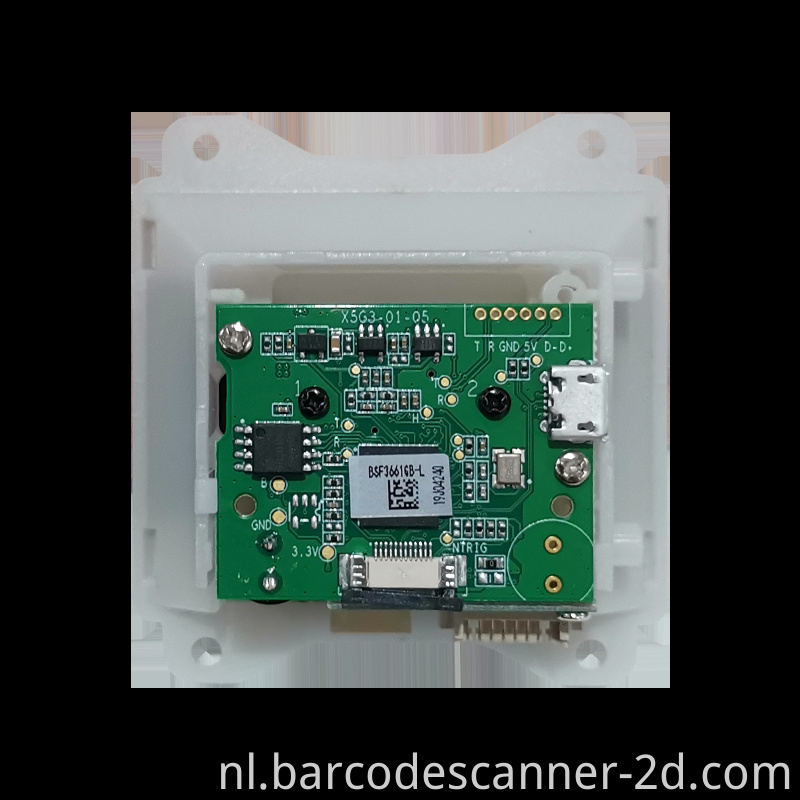

Product detail

Technical Parameters
Electrical Characteristics
Interface	USB,TTL-232(standard) USB , RS-232(optional) USB,RS485(optional) USB,Wiegand(optional)
Voltage requirement	DC 5V±5%(USB,RS232,RS485) DC 3.3V±5%(TTL-232)
Current consumption	135mA(Max) 74mA(Min)
Light source	Green LED*4
Photo sensor	CMOS array sensor
Resolution	640×480 pixels(300,000 pixel)
Decode angle	Pitch angle:±30° Skew angle:±40° Tilt angle:±180°
Field of View	80° (H) x 56° (V)
Reading accuracy	≥5mil
Operation Temp	0°C-50°C
Storage Temp	-5°C-55°C
Humidity	5%~95%
Dimensions	65mm x 61.2mm x 35.5mm(LWH)
Weight	28.7g
Secondary development	Support secondary development. Through serial port instructions
