CCD Barcode Scanner Module Snelle betaalkiosk

CCD Barcode Scanner Module Snelle betaalkiosk

$491-49 Others

$4550-199 Others

$42≥200Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CIF,EXW,CFR,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

Z2-670

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: Z2-670

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Private Mold: Yes

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 32 Bit

Interface Type: Usb, Rs232

Max Paper Size: N/A

Optical Resolution: 640X480 pixels

Scan Speed: 350+-50 Scans/second

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Color: Black

Light Source: White Led

Input Voltage: DC5V±10%

Decode Capabilities: both 1D and 2D

Scan Angle: Pitch angle:±30° Skew angle:±40° Tilt angle:±180°

Min PCS Value: >25%UPC/EAN 13(13mil)

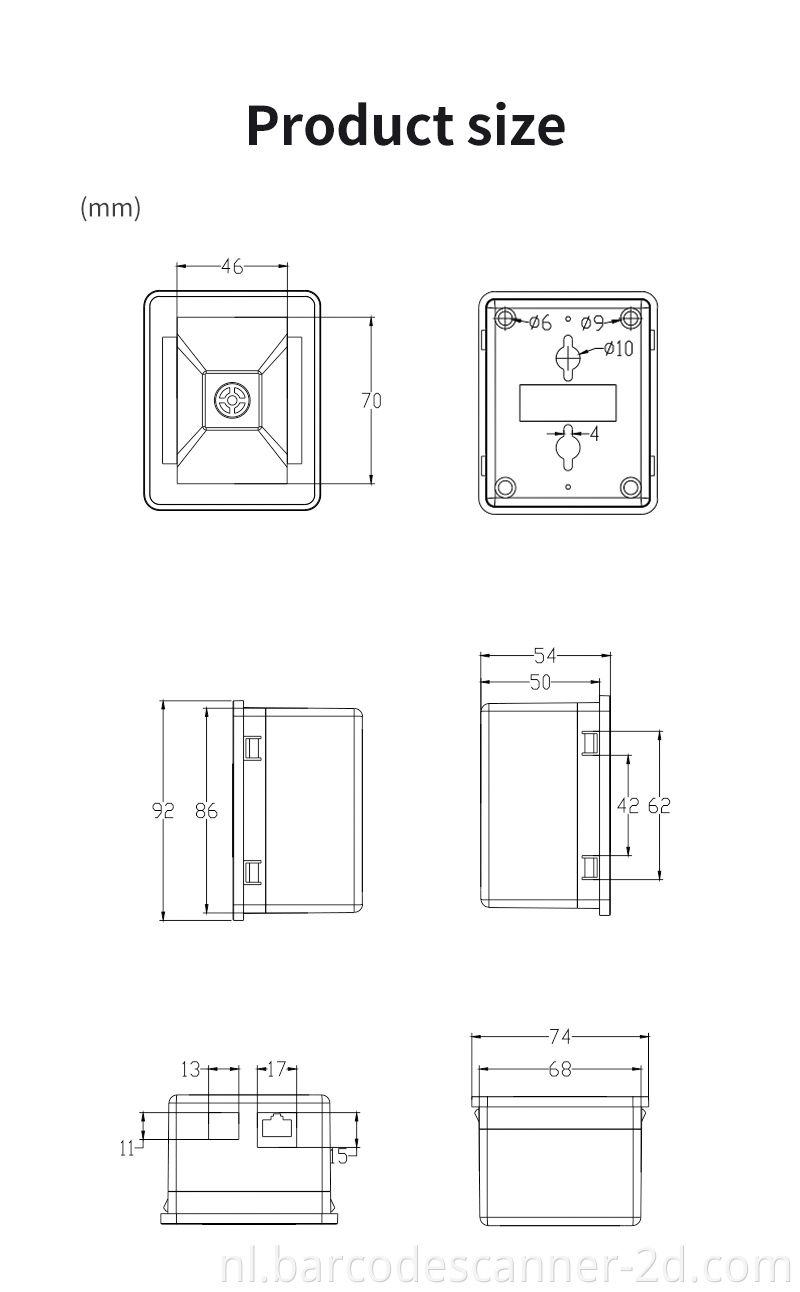

Dimensions: 65mm*61mm*31.5mm

Weight: 32g

certificaat: Ce

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Brown Box Packing of aangepaste verpakking (onderhandeld) 1 stcs/doos, 20/50 stcs/doos
Afbeeldingsvoorbeeld	:

The file is encrypted. Please fill in the following information to continue accessing it

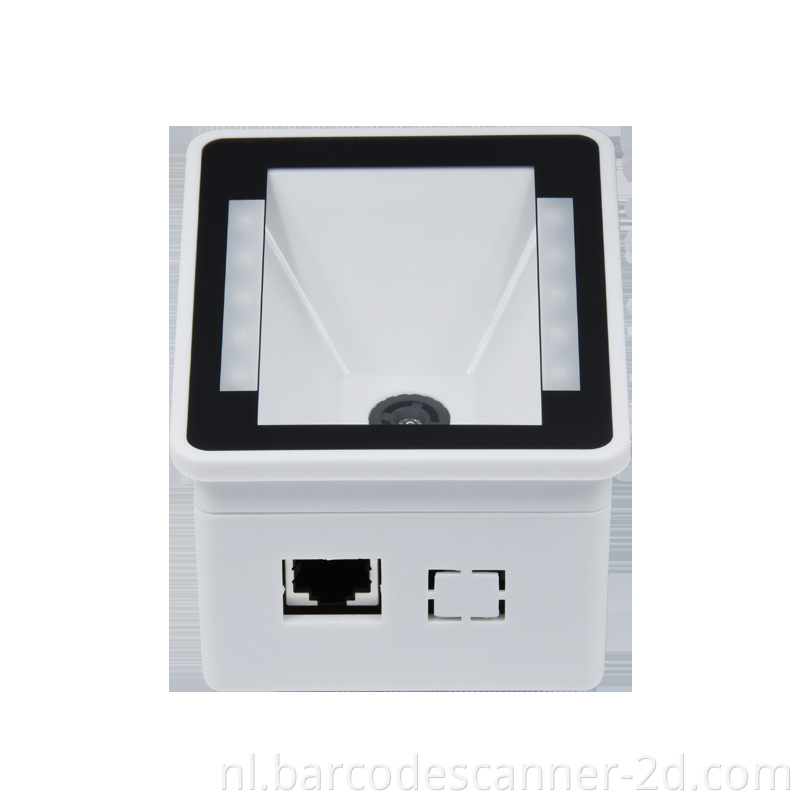

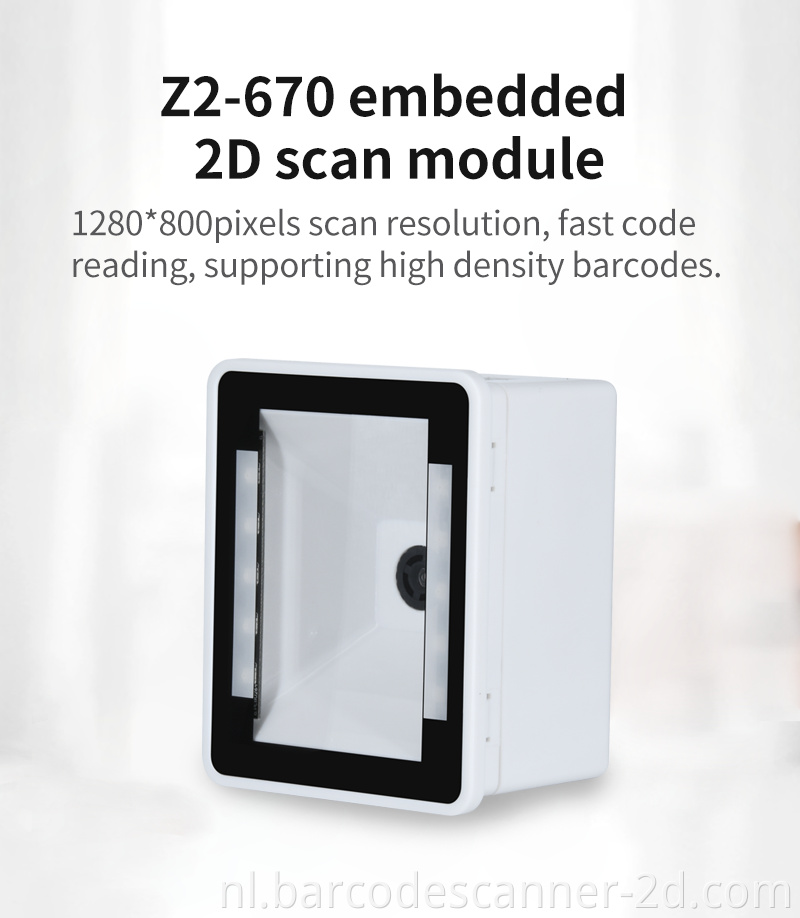

OEM Scan Engine CCD Barcode Scanner Module Quick Scan Payment Kiosk 2D Code Scanner1



Beschrijving

product beschrijving

Specificatie

Interface	USB(standard) USB , RS-232(optional) USB,RS485(optional)
Voltage requirement	DC 5V±5%(USB,RS232,RS485)
Current consumption	200mA(Max)

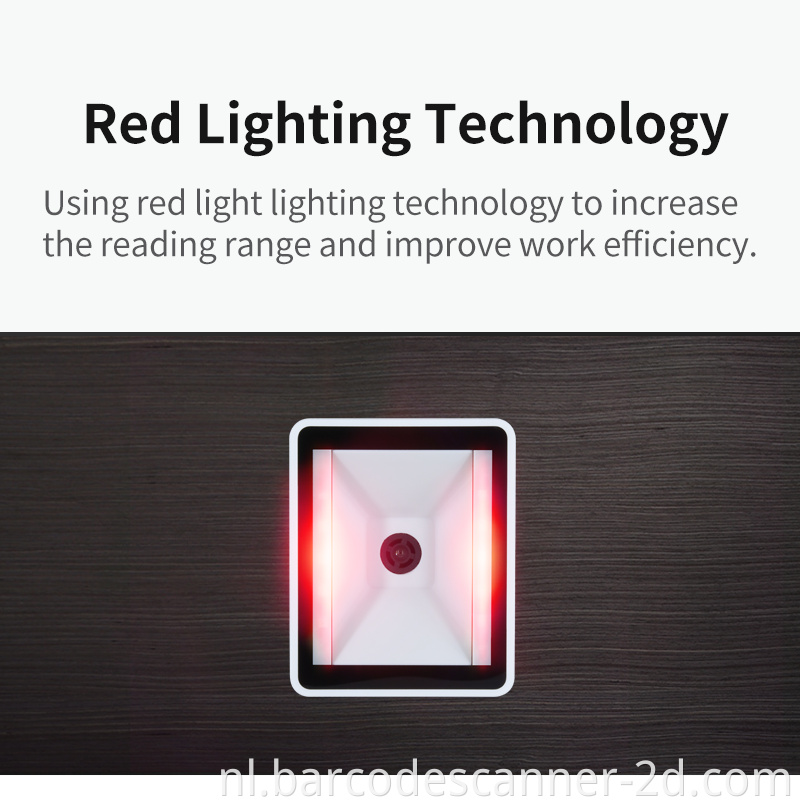

Light source	LED
Photo sensor	CMOS array sensor
Resolution	1280*800 pixels
Decode angle	Pitch angle:±60° Skew angle:±40° Tilt angle:±180°
