WNL-1052 Wireless Barcode Scanner 1D-laser

$251-49 Others

$2350-199 Others

$21≥200Others

betaling Type:	L/C,Western Union,MoneyGram,T/T,D/P,D/A,Paypal
Incoterm:	FOB,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	Guangzhou

Option:

contact opnemen

Beschrijving

Productkenmerken

Model: WNL-1052

merk: Winson

Private Mold: Yes

Products Status: Stock

Type: Laser Handheld Barcode Scanner

Scan Element Type: Laser Barcode Scanner

Colour Depth: 32 Bit

Interface Type: Usb, Rs232

Max Paper Size: N/A

Optical Resolution: 1D:4mil

Scan Speed: 250 Scans/sec

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Color: Black

Interface: USB HID KEYBOARD/USB VCP

Light Source: 650nm Visible Laser Diode

Operating Mode: Cache mode/Inventory mode

Min .PCS Value: >30%UPC/EAN 13(13mil)

Mechanical Shock: 1.5m drop onto concrete surface

Charging Time: 5h

Transmission Range: 30m (In empty area)

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Brown Box Packing of aangepaste verpakking (onderhandeld) 1 stcs/doos, 20/50 stcs/doos
Afbeeldingsvoorbeeld	:

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

Barcode Reader

Veelzijdig: interfaces zoals PS2, RS232, USB, USB-COM, enz. Zijn beschikbaar Barcode-scanner voor algemene doeleinden .

De leesafstand kan omhoog zijn tot 20 cm Highand De informatie in de streepjescode kan snel worden gelezen QR -codescannermodule .

Compact, lichtgewicht, ergonomisch ontworpen en comfortabel om barcode -lezer Arduino te voelen.

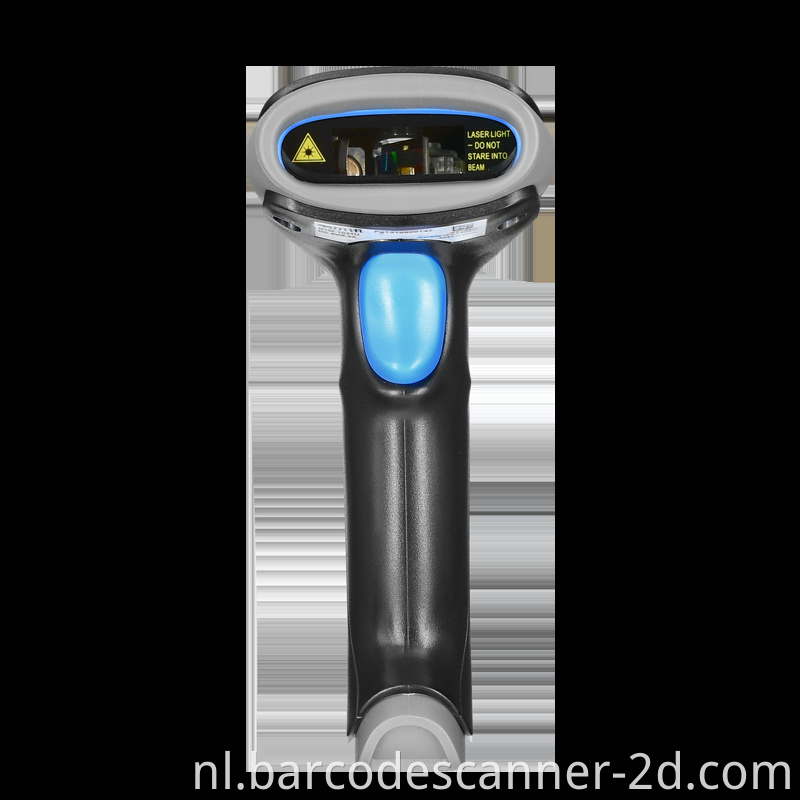

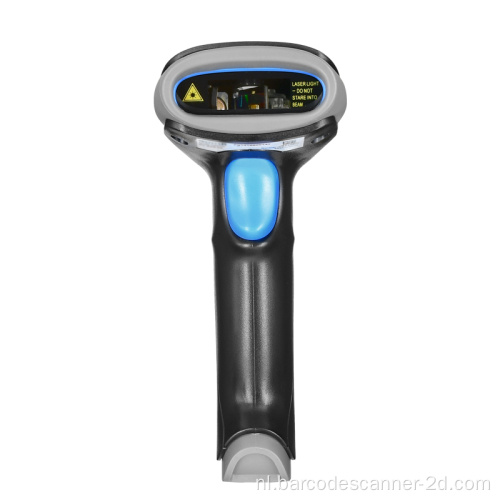

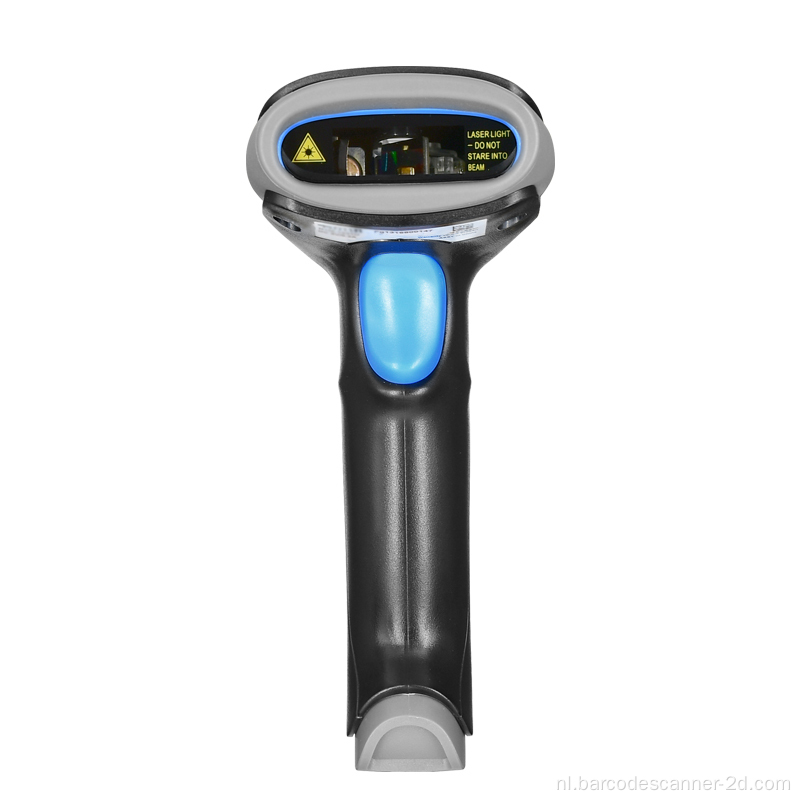

Barcode Reader Winson WNL-1052 Handheld Wireless Barcode Scanner 1D Laser Barcode Scanner

winson company

Product detail

Wireless Characteristics
Communication mode		Cache mode/Inventory mode
Communication mode		2.402 to 2.480GHz
Transmission range		30m(In empty area)
Battery capacity		2000mAh (Lithium battery)
Charge Time from Empty to Full Charge		5H
Duration of use		11H (wireless mode,real-time mode communication mode,60 scans/minute)
Electrical Characteristics
Interface Supported		USB HID KEYBOARD/USB VCP
Input Voltage		DC 5V±5%
Current		Max:185mA
Performance Characteristics
Light Source		650nm visible laser diode
Decoding speed		100±20/s
Scanning Angle		Pitch angle:-30° to 0°,0° to +30°
		Skew angle:-60° to 0°,0° to +60°
		Tilt angle:-30° to 0°,0° to +30°
Min Resolution		1D : 4mils
Min .PCS value		>30%UPC/EAN 13(13mil)
Decode Capability		1D:EAN13,EAN8,UPC A,UPC E,ISSN, ISBN, UPC-A , UPC-E , CODE39 , CODE32, CODE128, UCC-EAN128, CODE93, CODE11, CODABAR, MSI, CROSS 25 CODE, CHINA POST 25 CODE, MATRIX 25CODE,INDUSTRIAL 25 CODE, GS1 DataBar Omnidirectional, GS1 DataBar Limited
Environmental Characteristics
Temperature		operation:0°C-50°C
		storage:-10°C-60°C
Humidity		operation:20%~85% (no condensation)
		storage:20%~95%(no condensation)
Physical Characteristics
Dimensions			90mm x67mm x 168mm(LWH)
Weight			130g
Indicator			Beeper, LED
Decoding Depth of Field
Symbology	Resolution			Barcode number	Barcode width	Nearest	Farthest
Code128	5mil			20	4.3x1.5cm	5cm	10cm
Code128	15mil			7	4.3x1.5cm	2.5cm	26cm
Code39	6.67mil			16	4.4x1.5cm	3cm	19cm
Code39	20mil			4	4.3x1.5cm	3cm	32cm
EAN13	13.34mil			13	4.2x1.5cm	2cm	24cm
