Laser Reader Scanner USB 1D 2D BS-727

$37.51-99 Others

$32.5100-999 Others

$25.5≥1000Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

WNC-5083/V

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WNC-5083/V

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Private Mold: Yes

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 8 Bit

Interface Type: usb, RS-232

Max Paper Size: N/A

Optical Resolution: 1280X800 pixels

Scan Speed: 350+-50

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Interface: RS-232/USB HID KEYBOARD/USB VCP

Photo Sensor: CMOS array sensor

Voltage Requirement: DC5V±5%

Current: Max 180ma

Light Source: White Led

Min Resolution: 1D:0.101mm/4mil, 2D:0.178mm/7mil

Min.PCS Value: >15%UPC/EAN 13(13mil)

Weight: 180g

certificaat: Rohs

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Brown Box Packing of aangepaste verpakking (onderhandeld) 1 stcs/doos, 20/50 stcs/doos
Afbeeldingsvoorbeeld	:

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

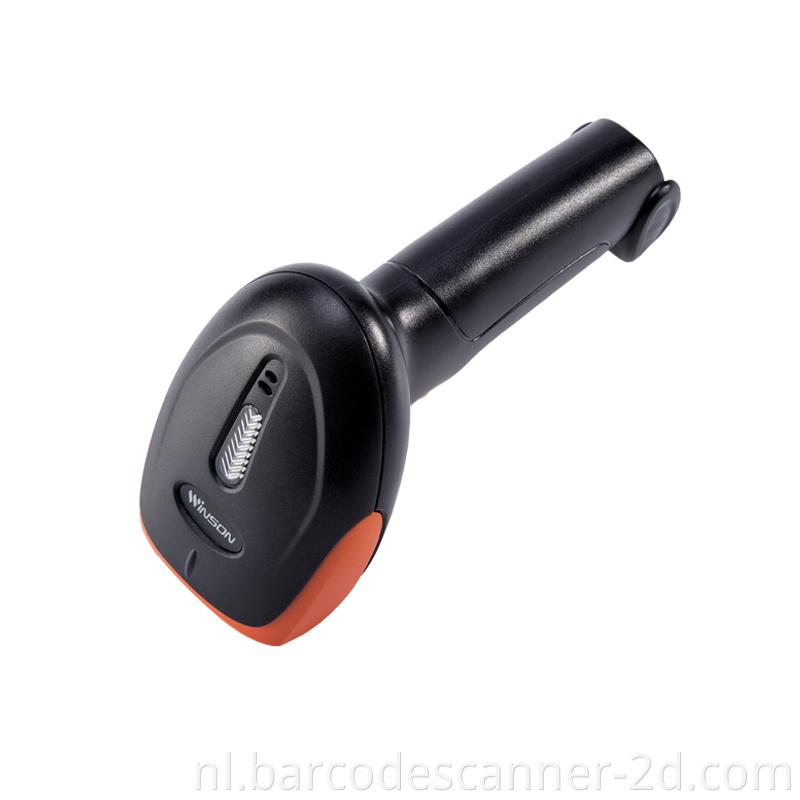

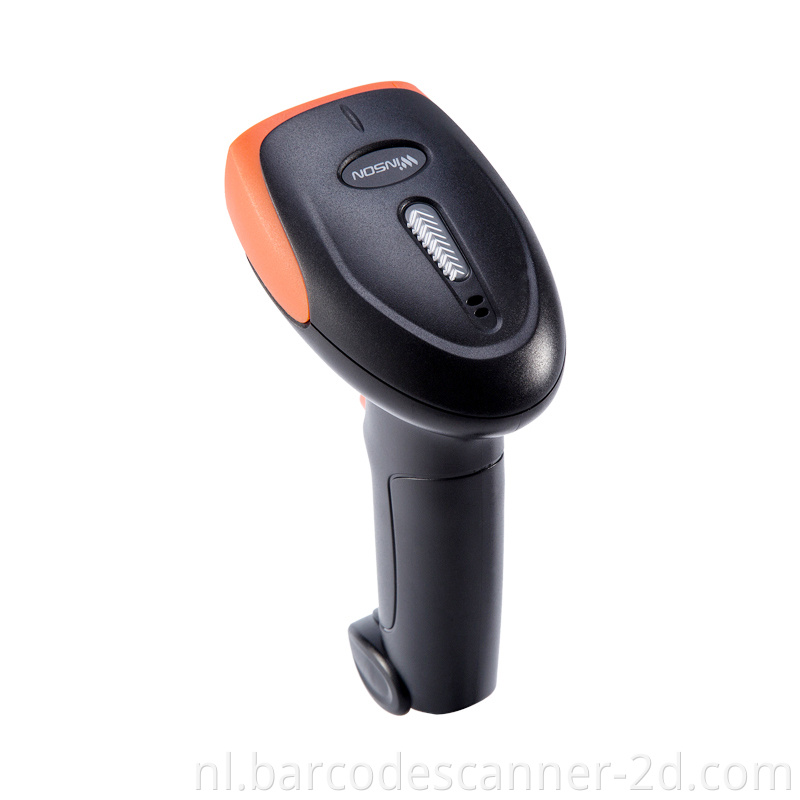

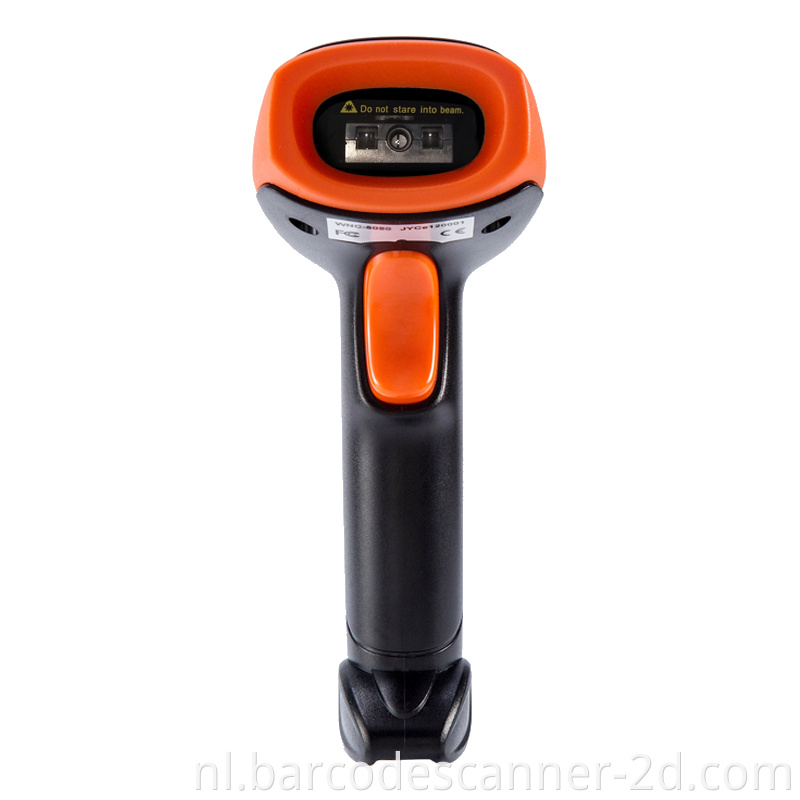

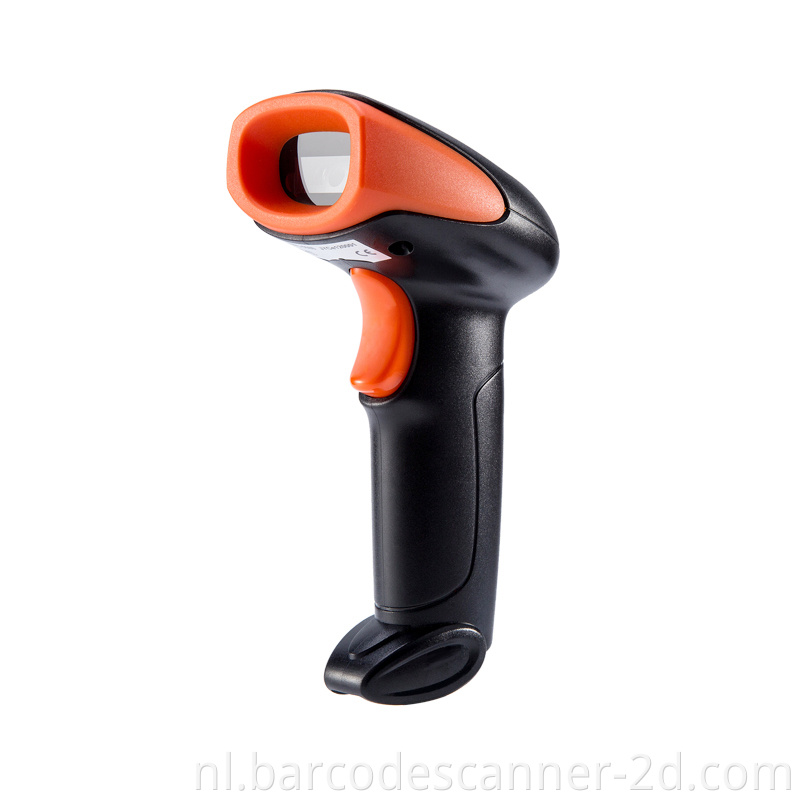

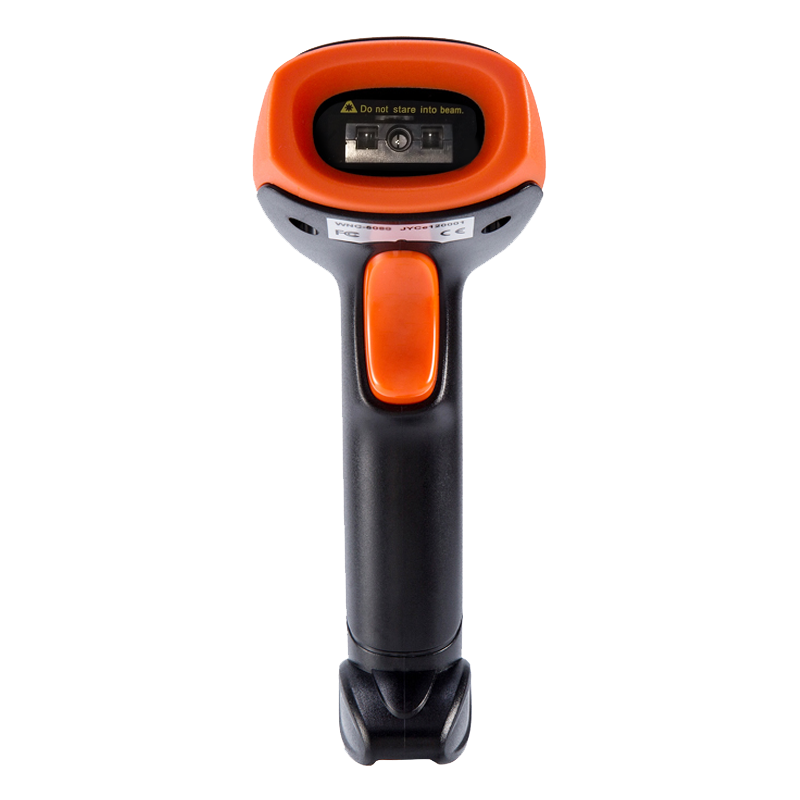

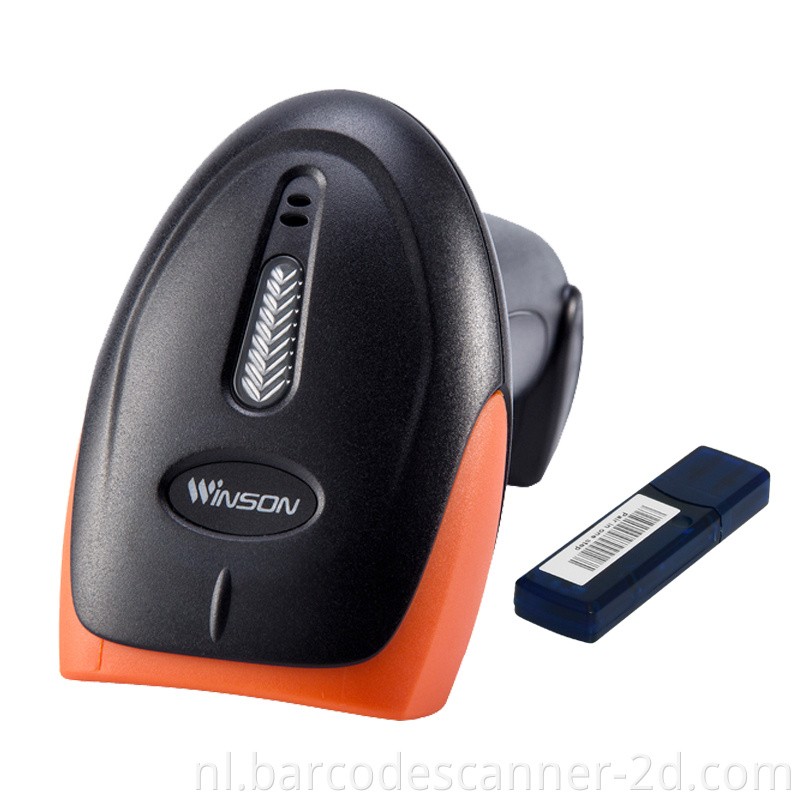

Auto Sense Laser Bar Code Reader Scanner USB 1D 2D QR Code Wired Barcode Scanner BS-727 Proteerbare barcodescanner

Toepassingsvelden: supermarkt, detailhandel, magazijn, logistiek, bibliotheek, medische enz . Mini Auto-scanning module.

Lees barcode zo klein als 3,3 mill algemene scanners .

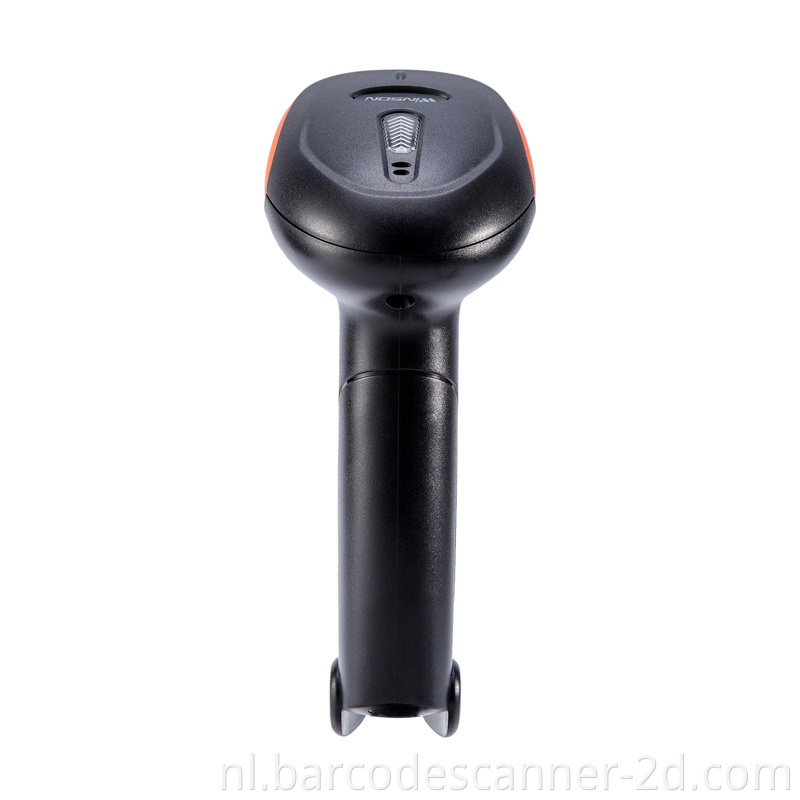

2d barcode scanner

Auto Sense Laser Bar Code Reader Scanner USB 1D 2D QR Code Wired Barcode Scanner BS-727 Proteerbare barcodescanner 2d barcode scanner

Auto Sense Laser Bar Code Reader Scanner USB 1D 2D QR Code Wired Barcode Scanner BS-727 Proteerbare barcodescanner

winson company

Product detail

Technical Specifications
Electrical Characteristics
Interface Supported	RS-232/USB HID KEYBOARD/USB VCP
Input Voltage	DC 5V±10%
Current	Max:180mA
Optical Characteristics
Image Sensor	CMOS Array Sensor
Sensor Resolution	640X480 Pixels
Light Source	White LED
Aim Light Source	Red Bar LED
Performance Characteristics
Scanning Angle	Pitch angle:±65°;Skew angle:±60°;Tilt angle:±180°
Field of View	40°(H),29°(V)
Min Resolution	1D:0.101mm/4mil(PCS 0.9) 2D:0.178mm/7mil(PCS 0.9)
Min .PCS value	>20% UPC/EAN 13(13mil)
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	1D : UPC/EAN, Code 128, Code 39,Code 93, Interleaved 2 of 5,Codabar, 2D : QR ,Mirco QR,PDF417 ,MircoPDF417,Data Matrix,Aztec
Physical Characteristics
Dimensions	90mm67mm168mm(LWH)
Weight	120g
Indicator	Beeper, LED
Environmental Characteristics
Temperature	-20° to 65°C / -4° to 149°F(operation) /-30° to 70°C /-22° to 158°F(storage)
Humidity	5 - 90% (operation) ) 5 - 90% (storage)
Ambient Light:	Up to 80,000 lx
Shock Drop Test	1.5m drop onto concrete surface
