Mini Barcode Scanner Module 2D COMS Scanner Motor

Mini Barcode Scanner Module 2D COMS Scanner Motor

$49.92-49 Others

$45.950-499 Others

$34.9≥500Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	FOB,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

WDI-2011

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WDI-2011

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD, CMOS

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Products Status: Stock

Type: 2D Barcode Reader Module

Scan Element Type: 2D

Colour Depth: 32 Bit

Interface Type: usb, TTL-232/USB

Max Paper Size: N/A

Optical Resolution: 1280X800 pixels

Scan Speed: 60fps

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Return and Replacement, Call Center and on-line Technical Support

Naam van product: 2D Barcode Reader Module

Product Type: QR Bar Code Scan Engine

Interface: TTL-232/USB

Photo Sensor: COMS array sensor

Connector: 0.5-12P FPC

Min Resolution: 1D:4mil(0.101mm) 2D:7mil(0.178mm)

Aim Light Source: Red LED

Field Of View: 54°(H),33°(V)

Taal: Multiple languages

certificaat: Ce, Rohs

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Aangepaste verpakking (onderhandeld)

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

Winson 2D Barcode Scanner Engine WDI-2011 CCD Barcode Scanner Barcode Reader voor verkoopmachine

Ondersteuning van de RS232, USB, TTL, Micro USB -interface QR -codescannermodule .

Ingebouwde 2600 mAh-batterij, superlange standby-tijd industriële barcodelezer .

product beschrijving

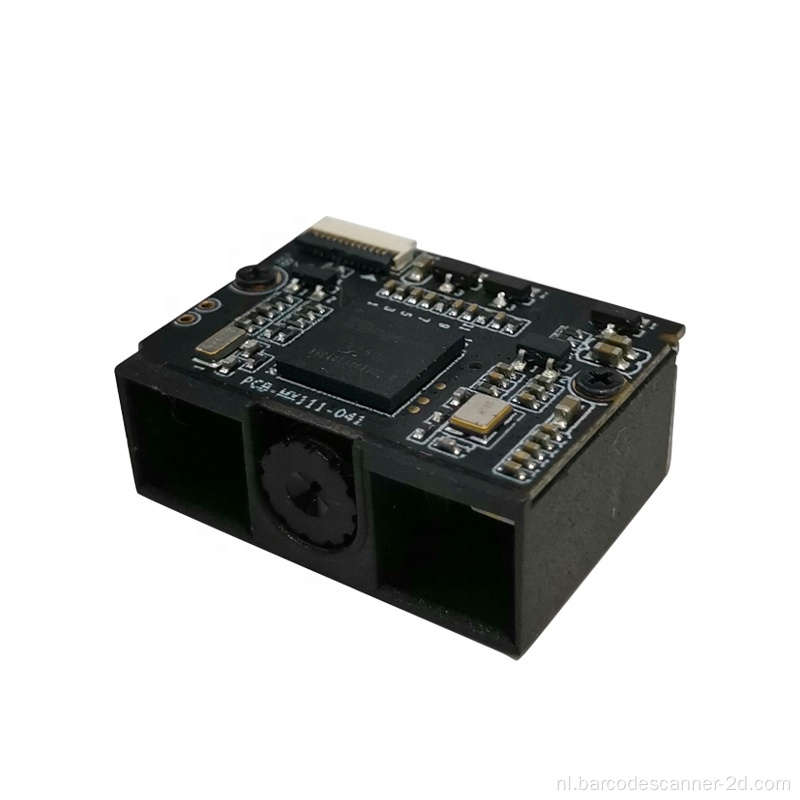

COMS Scanner Engine

Better scanning performance 32-bit CPU, scanning code speed up to 60FPS per second. Support bidirectional scanning Accurate scanning, the error rate is 1 / 5,000,000.


Compatibility Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.	Mechanical Shock After 1.0m drop onto concrete surface, still work as usual,shockproof and Anti-broken.

COMS Scanner Engine

winson company

Product detail

Technical parameters
Electrical Characteristics

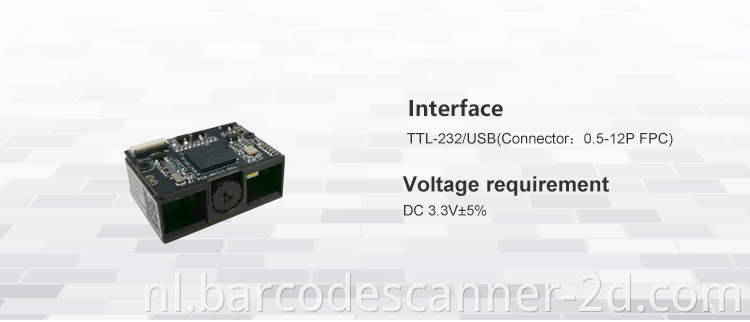

Interface	TTL-232/USB
Interface connector	0.5-12P FPC
Voltage requirement	DC 3.3V±5%
Current consumption	Max:250mA
Optical Characteristics
Photo sensor	CMOS array sensor
SENSOR RESOLUTION	1280X800pixels
light source	white LED*1
Aim light source	Red Bar LED
Performance Characteristics
Decode angle	Pitch angle:±65° Skew angle:±60° Tilt angle:±180°
Min resolution	1D:4mil(0.101mm) 2D:7mil(0.178mm)
Min.PCS value	>20%UPC/EAN 13(13mil)
Field of View	54°(H),33°(V)
Language	multipl languages
