Barcode Scanner Module 1D 2D Barcode Reader

Barcode Scanner Module 1D 2D Barcode Reader

$405-99 Others

$35100-999 Others

$25≥1000Others

betaling Type:	L/C,Western Union,D/A,T/T,Paypal,MoneyGram
Incoterm:	FOB,EXW,CIF,DDP
vervoer:	Ocean,Land,Air,Express
Haven:	guangzhou

Option:

WDC3000

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WDC3000

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD, CMOS

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Private Mold: Yes

Products Status: Stock

Type: CCD Bar Code Scanner Engine

Scan Element Type: Ccd

Colour Depth: 32 Bit

Interface Type: usb, SCSI, IEEE 1394, COM, PS/2, Other

Max Paper Size: N/A

Optical Resolution: 2500pix

Scan Speed: 350±50 (scans/second)

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Color: Black

Interface: TTL-232/USB

Photo Sensor: CCD linear sensor

Voltage Requirement: DC 3.3/5V±10%

Current Consumption: Max:120mA

Taal: Multiple languages

Dimensions: 21mm x 23mm x 11mm(W x D x H)

Weight: 6g

Verpakking & Levering

Verkoopeenheden	:	piece
Pakkettype	:	Aangepast/OEM

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

product beschrijving

Specificatie

Interface	TTL-232/USB
Interface connector	0.5-12P FPC
Voltage requirement	DC 3.3/5V±10%
Current consumption	Max:120mA
Photo sensor	CCD linear sensor
Sensor Resolution	2500pix
light source	LED 632nm red led
Scan Rate:	350±50 (scans/second)
Decode angle	Pitch angle:±30° Skew angle:±70° Tilt angle:±45°
Min resolution	0.127mm/5mil（PCS 0.9）
Min.PCS value	〉20%UPC/EAN 13（13mil）
curvature	R≥15 mm (EAN8)，R≥20 mm (EAN13) （resolution=0.26mm，PCS=0.9）

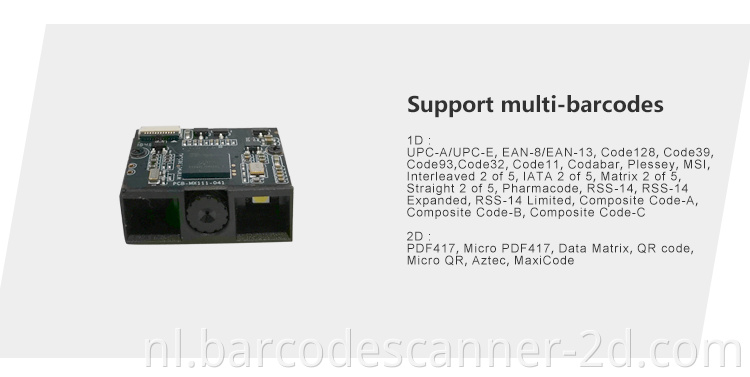

Identification	EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93， INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128， CODE 11，CHINESE POST

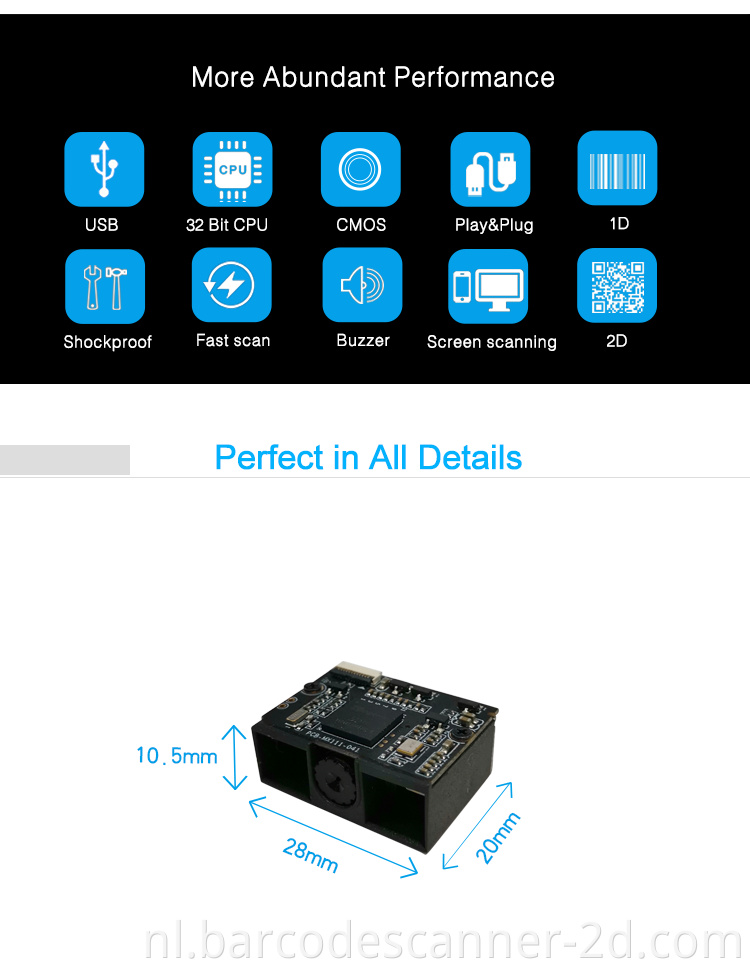

Dimensions	24 mm x 22 mm x12mm(LWH)
Configurations	Decode
Temp	-0°-65°C / 32°至 149°F((operation) ) -30°- 70°C /-22°至 158° F(storage)
