Winson CMOS QR Code Lassembly Line Scanner -module

Winson CMOS QR Code Lassembly Line Scanner -module

$501-49 Others

$4650-199 Others

$40≥200Others

betaling Type:	L/C,T/T,D/P,D/A,Paypal,Others
Incoterm:	CFR,CIF,FOB,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

WGI-3220

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WGI-3220

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD, CMOS

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Products Status: Stock

Type: Mini Scan Engine

Scan Element Type: Cmos

Colour Depth: 32 Bit

Interface Type: usb, SCSI, IEEE 1394, COM, PS/2, Other

Max Paper Size: N/A

Optical Resolution: 1280X800 pixels

Scan Speed: 60fps

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Naam van product: Mini Scan Engine

Interface: RS-232/USB HID KEYBOARD/USB VCP

Voltage Requirement: DC 5V±10%

Current Consumption: Max :250mA

Photo Sensor: CMOS array sensor

Operating Temperature: -20°to 65°C /5 to 90%

Storage Temperature: -30°to 70°C /5 to 90%

Seismic Capacity: 1.5 meters crop down to the concrete floor

certificaat: Ce, Rohs

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Aangepaste verpakking (onderhandeld)

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

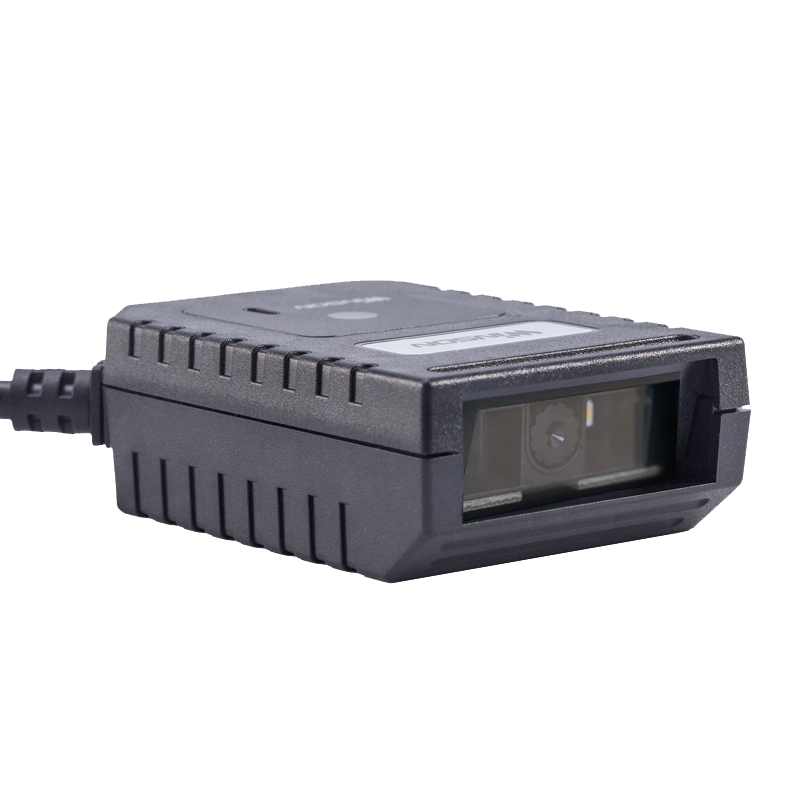

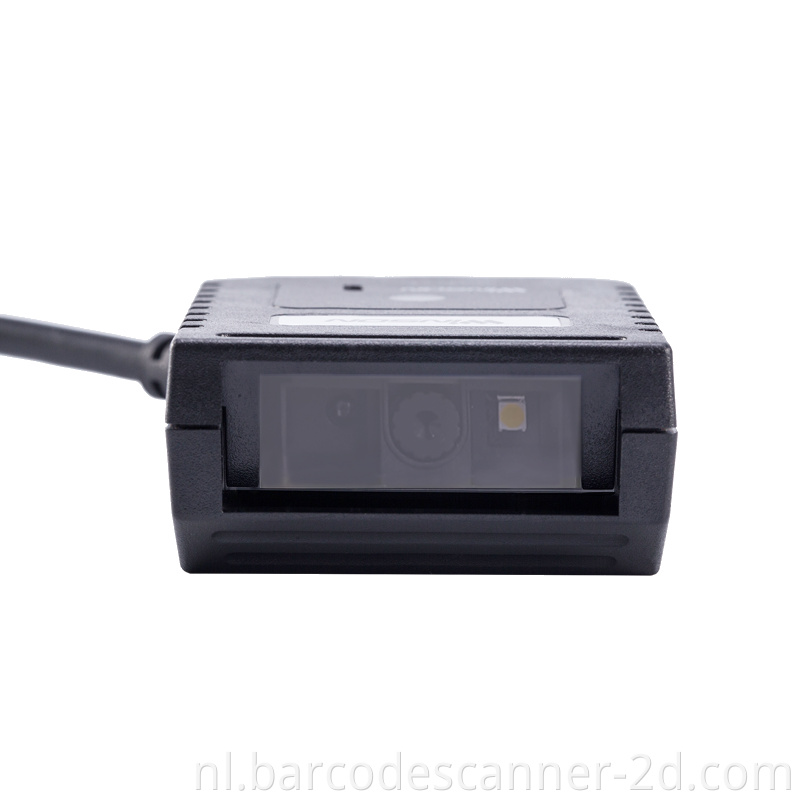

Winson WGI-3220 2D Fixed Barcode Scanner voor industriële assemblagelijn

Scanner Mount Support over de toetsenbordindeling van twintig verschillende landen.

Vaste mount scanner super scannen en decoderen, kunnen onvolledige en fuzzy codes lezen.

1D Barcodemodule Klein formaat, eenvoudig te integreren in elk apparaat, met name voor limietruimte -toepassing.

Functies

winson company

Product detail

Technical parameter
Electrical Characteristics
Interface	RS-232/USB HID KEYBOARD/USB VCP
Voltage requirement	DC5V±10%
Current consumption	Max :250mA
Optical Characteristics
Photo sensor	CMOS array sensor
SENSOR RESOLUTION	1280x800 pixels
light source	White LED x1
Aim light source	red LED bar
Performance Characteristics
Decode angle	Rotation angle:±70°;Skew angle:±70°;Tilt angle:±180°
Field of View	Level:53°,vertical:33°
Min resolution	1D:0.101mm/4mil(PCS 0.9) 2D:0.178mm/7mil(PCS 0.9)
Min.PCS value	>20%UPC/EAN 13(13mil)
Keyboard language	Multi keyboard language
Data editing	Support for custom data output

Physical Characteristics
Dimensions	68mm×48mm×24mm(L×D×H)
Weight	USB/USB VCP:118g RS-232:147g
Prompt mode	LED indicator and buzzer
Environmental Characteristics
Temp	-20°- 65°C (operation) , -30°- 70°C (storage)
Humidity	5 - 90% (operation) ;5 - 90% (storage)
Ambient Light	0-80,000 LUX
Seismic capacity	1.5 meters crop down to the concrete floor
