Winson Code Reader ingebed Mini Barcode Scanner

Winson Code Reader ingebed Mini Barcode Scanner

$120-155 /unit

betaling Type:	L/C,Western Union,T/T,Paypal,MoneyGram
Incoterm:	FOB,CIF,EXW,DDP
Min. orde:	1 unit
vervoer:	Ocean,Land,Air,Express,Others
Haven:	Guangzhou/Shenzhen

Option:

WDI-4000

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: WDI-4000

merk: Winson C

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Private Mold: Yes

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 32 Bit

Interface Type: usb, TTL-232

Max Paper Size: N/A

Optical Resolution: 640*480 pix

Scan Speed: 350±50 (scans/second)

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

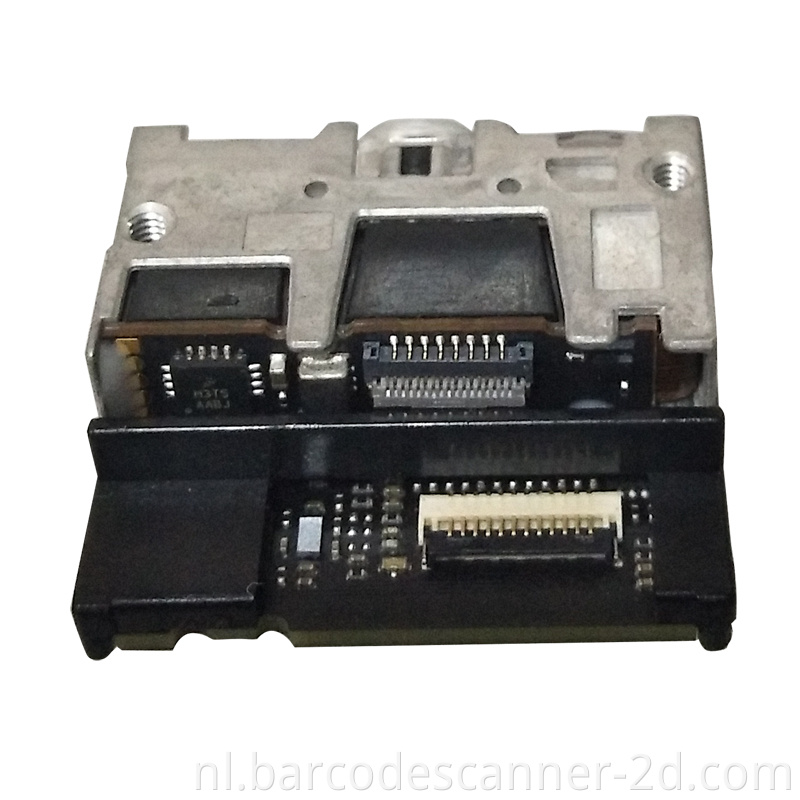

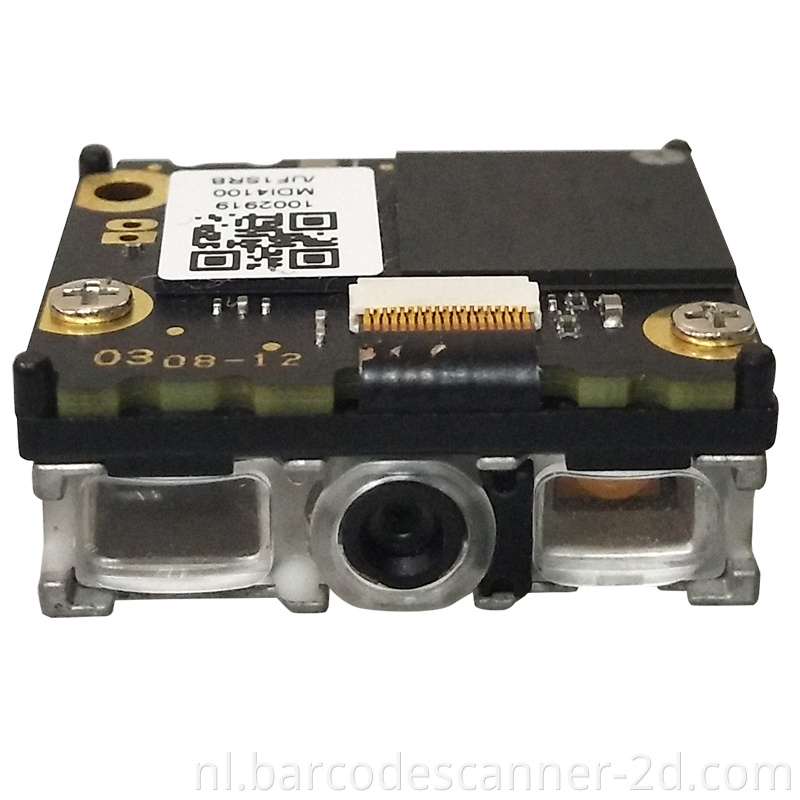

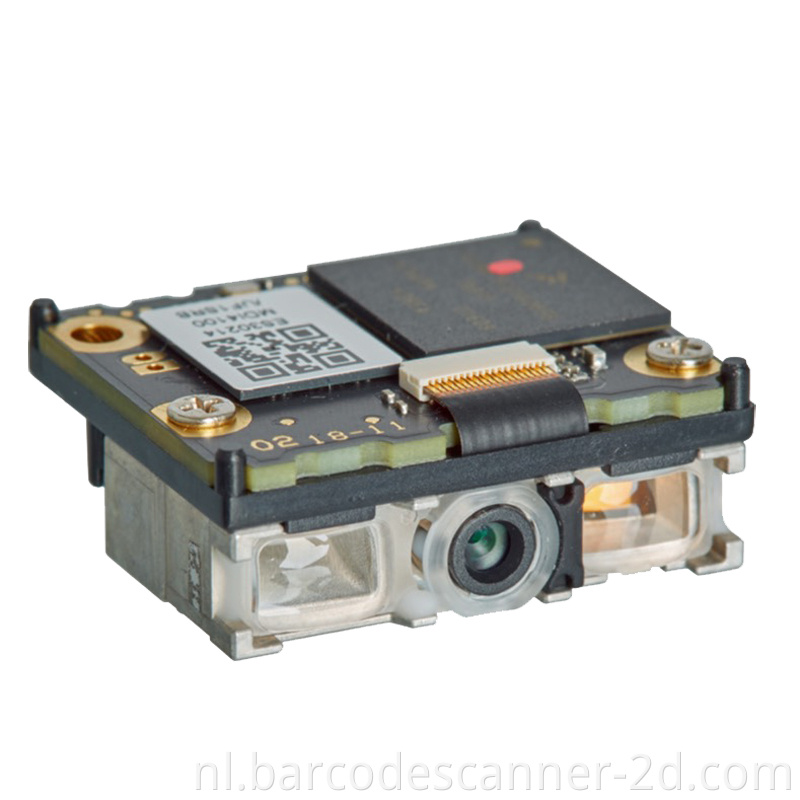

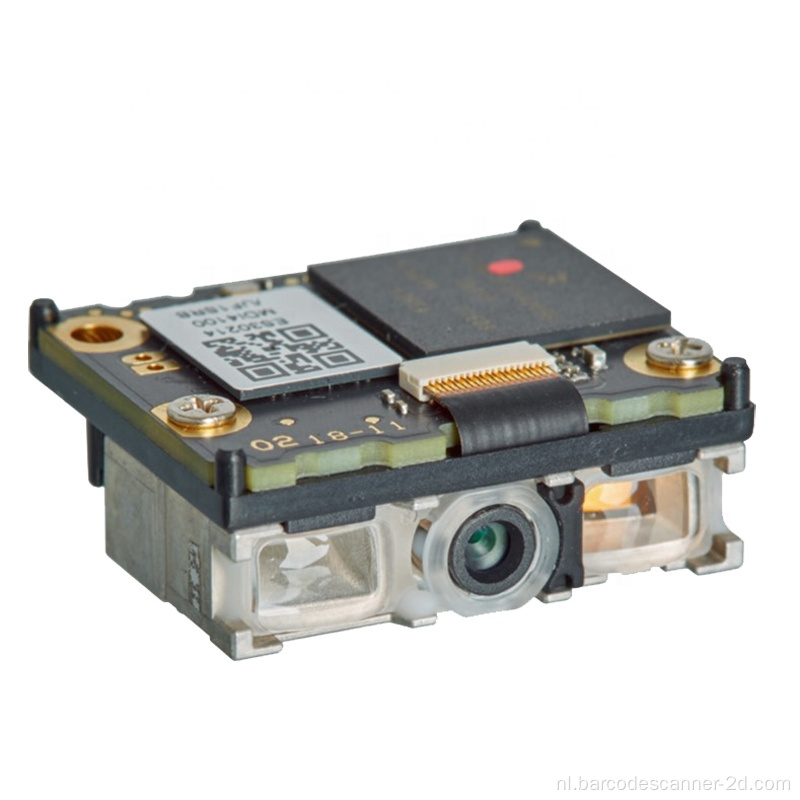

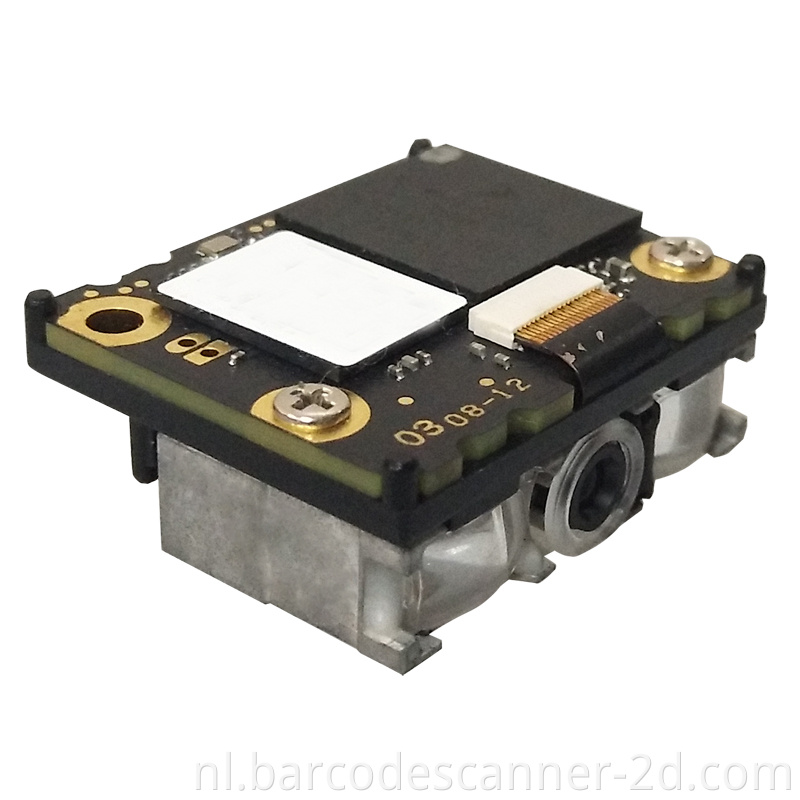

Naam van product: Barcode Reader Module

Connector: 0.5-12P FPC

Interface: TTL/USB HID keyboard

Photo Sensor: CMOS array sensor

Voltage / Current: DC 3.3V/5V ±10%; Max 450ma

Sensor Resolution: 640*480 pixels

Print Contrast: >25%UPC/EAN 13(13mil)

Compatibility: Win OS/Mac OS/Linux/Android/IOS/Embedded OS

Dimensions (W X D X H): 25.3x10x21mm

Weight: 5.5 g(0.19oz)

certificaat: Ce, Rohs

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Brown Box Packing of aangepaste verpakking (onderhandeld)
Afbeeldingsvoorbeeld	:

The file is encrypted. Please fill in the following information to continue accessing it

Winson Passport MRZ Code Reader ingebed Mini Barcode Scanners Module voor groothandel1



Beschrijving

Winson WDI-4000SR Mini CMOS Code Reader Module High Performance PDF417 CCD Fix-gemonteerde scanner

2D vaste mount barcode scanner ondersteuningsverbinding met computer, laptop. Compatibel besturingssysteem voor Linux, Windows XP, 7,8,10 fix-gemonteerde scanner .

Wide Range Bar Code Reader Application Fields: Supermarkt, Retail, Warehouse, Logistic, Library, Medical etc Barcode Scanner voor magazijn .

Embedded Scanner ondersteunen secundaire ontwikkeling - De instructie van de seriële poortontwikkeling is voltooid om aan elke soort interactieve vraag van de hostcomputerbeheersing te voldoen.

Barcode Scanner For Warehouse Winson Passport MRZ Code Reader ingebed Mini Barcode Scanners Module voor groothandel

winson company

Product detail

Technical Parameters
Electrical Characteristics
Interface	TTL/USB HID keyboard
Interface connector	0.5-12P FPC
Voltage requirement	DC 3.3V / 5V ±5%
Current consumption	Max: 450mA (3.3V) ; Max: 320mA (5.0V)
Optical Characteristics
Photo sensor	CMOS array sensor
Sensor resolution	640*480 pixels
Light source	white LED*1
Aim light source	Green Bar LED
Performance Characteristics
Scan rate	30fps
Decode angle	Pitch angle:±65° Skew angle ±65° Tiltangle±180°

Min resolution	1D:5mil(0.127mm) 2D:10mil(0.25mm)
Min.PCS value	>30%UPC/EAN 13(13mil)
Field of View	38°(H),29°(V)
Language	multiple languages
Identification	1D:JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET 2D:Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code
Physical Characteristics
Dimension	25.3 mm x 10 mm x 21mm(LWH)
Weight	5.5g
Configurations	Decode
Environmental Characteristics
Temp	0°to 50°C (operation) -10°-to 60°C (storage)
Humidity	20 - 85% (operation) ) 5 - 95% (storage)
