Goedkope barcodescanner ingebedde barcodescanner

Goedkope barcodescanner ingebedde barcodescanner

$92.52-49 Others

$75.550-199 Others

$69.5≥200Others

betaling Type:	L/C,T/T,D/P,Paypal
Incoterm:	FOB,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

Z11-611

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: Z11-611

merk: Winson

Certificatie: ce

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Private Mold: Yes

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 32 Bit

Interface Type: Usb, Rs232

Max Paper Size: N/A

Optical Resolution: 1280X800 Pix

Scan Speed: 350+-50 Scans/second

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Interface: RS-232/USB HID KEYBOARD/USB VCP

Light Source: 8 white LEDs

Voltage Requirement: DC5V±10% ; Max 135ma

Decode Capabilities: both 1D and 2D

Scan Angle: Pitch angle:±65° Skew angle:±60° Tilt angle:±180°

Reading Accuracy: DP:1D Linear:≥3 mils 2D:≥5 mils

Dimensions: 78mm x 67mm x 54mm

certificaat: Ce

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Brown Box Packing of aangepaste verpakking (onderhandeld) 1 stcs/doos, 20/50 stcs/doos
Afbeeldingsvoorbeeld	:

The file is encrypted. Please fill in the following information to continue accessing it

OEM goedkope barcode scanner streepjescode lezer QR -codescanner ingebed barcode scanner 2D code scan engine1



Beschrijving

Plug and Play, Driver-vrij, handig voor gebruik.
Ondersteuning van de RS232, USB, TTL, Micro USB -interface.

OEM goedkope barcode scanner streepjescode lezer QR -codescanner ingebed Barcode Scanner 2D Code Scan Engine

Kabelbarcode -scanner Super scanning en decoderingsmogelijkheden kunnen onvolledige en fuzzy codes lezen.

Zebra DS2278 QR -code klein formaat, eenvoudig te integreren in elk apparaat, met name voor limietruimte -toepassing.

Embedded scanners Auto-sensing scanning bespaart stroom en tijd-wanneer de productstreepjescode door het scanvenster passeert, wordt de module wakker om de barcode onmiddellijk te lezen.

Embedded Barcode Reader Support Secondary Development - De instructie van de seriële poortontwikkeling is voltooid om te voldoen aan elke soort interactieve vraag van de hostcomputerbeheersing.

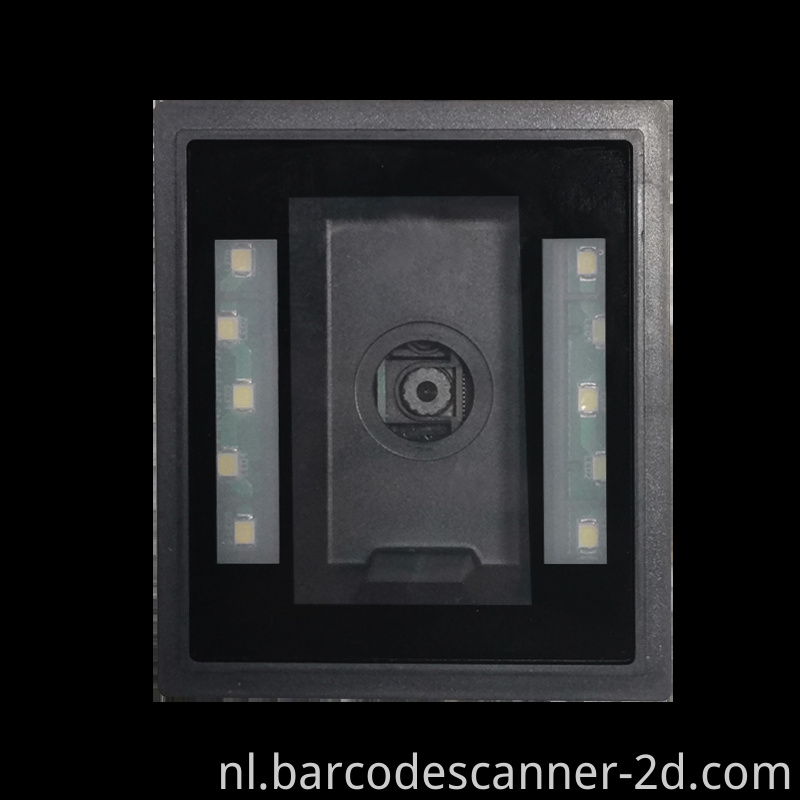

Embedded Barcode Scanner

winson company

Product detail

Technical parameter
Electrical Characteristics
Interface	USB/ RS-232/TTL
Voltage requirement	DC 5V±5%(USB,RS232,RS485) DC 3.3V±5%(TTL-232)
Current consumption	Max:135mA,Min:74mA
Optical Characteristics
photo sensor	CMOS array sensor
SENSOR RESOLUTION	1280X800 pixels
light source	8 White LED
Performance Characteristics

Decode angle	Pitch angle:±65°;Skew angle:±40°;Tilt angle:±180°
Min.PCS value	>20%UPC/EAN 13(13mil)
Field of View	54°(H),33°(V)
Language	multiple languages
Identification	1D : UPC-A/UPC-E;EAN-8/EAN-13;Code128;Code39;Code93;Code32; Code11;Codabar;Plessey;MSI;Interleaved 2 of 5;IATA 2 of 5;Matrix 2 of 5; Straight 2 of 5;Pharmacode;RSS-14;RSS-14 Expanded;RSS-14 Limited; Composite Code-A;Composite Code-B;Composite Code-C;
Identification	2D:PDF417;Micro PDF417;Data Matrix;QRcode;Micro QR;Aztec; MaxiCode
Physical Characteristics
Dimensions	78mm67mm54mm
Weight	180g
Shock drop test	1.2m drop onto concrete surface
Environmental Characteristics
Operating temperature	-10°C to 60°C
Storage temperature	-10°C to 70°C
Humidity	5 - 90% (No condensation)
