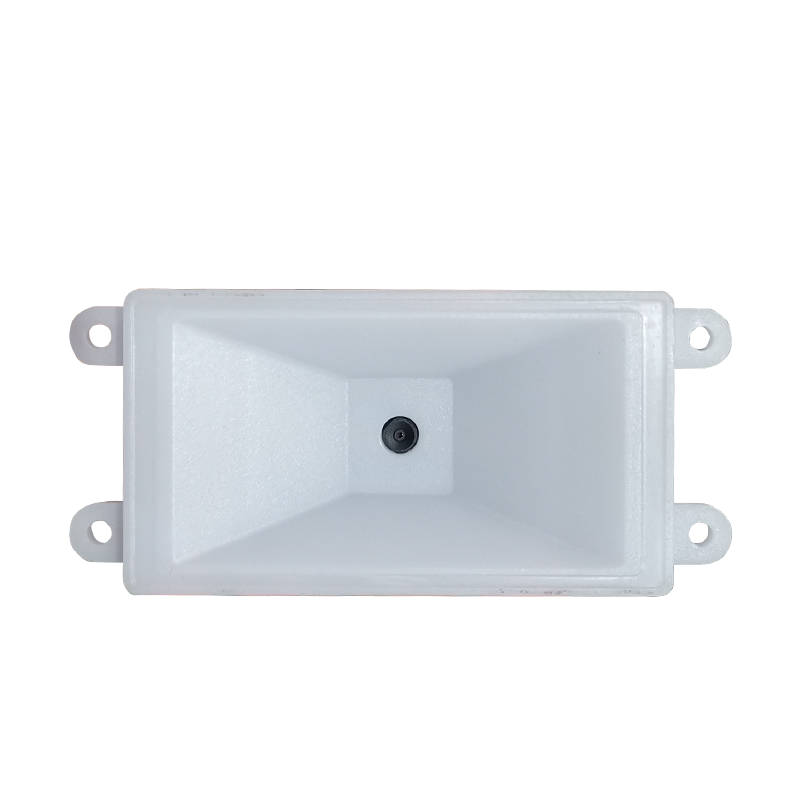

Ingebed 2D -afbeelding OEM Barcode Scanner -module

Ingebed 2D -afbeelding OEM Barcode Scanner -module

$40.91-49 Others

$35.550-199 Others

$29.9≥200Others

betaling Type:	L/C,T/T,D/P,Paypal
Incoterm:	FOB,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express
Haven:	guangzhou

Option:

Z4S-320

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: Z4S-320

merk: Winson

Certificatie: ce, andere

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Private Mold: Yes

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 32 Bit

Interface Type: usb, TTL-232

Max Paper Size: N/A

Optical Resolution: 640*480 pix

Scan Speed: 350±50 (scans/second)

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Color: Black, White

Naam van product: embedded scan Module

Interface: USB/TTL/RS232

Photo Sensor: CMOS array sensor

Voltage / Current: DC 5V ±5%; Max 140ma

Dimensions (W X D X H): 53.5mm x 36mm x 16mm

Weight: 15g

Field Of View: 74°(H),58°(V)

certificaat: Ce,Rohs

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Brown Box Packing of aangepaste verpakking (onderhandeld)
Afbeeldingsvoorbeeld	:

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

Decoderen bij lage en hoge helderheidomgeving

product beschrijving

Embedded 2D Image OEM Barcode Scanner Module

Specificatie

Interface	USB(standard) TTL(optional) RS232(optional) RS485(optional)
Voltage requirement	DC 5V±5%(USB,TTL,RS232,RS485)
Current consumption	135mA(Max) 74mA(Min)
Light source	4 white LEDs (green LED can be selected)
Photo sensor	CMOS array sensor
CMOS array sensor	640×480 pixels(300,000 pixel)
Field of View	55° (H) x 44° (V)
Support code	1D:Code128,EAN-13,EAN-8,Code39,Code93,UPC-A,UPC-E,Codabar,Interleaved 2 of 5,Industrial 2 of 5,ITF-6,ITF-14,ISBN,GS1-128,UCC/EAN-128,GS1 Databar,Matrix 2 of 5,Standard 2 of 5,Plessey,MSI-Plessey 2D: QR Code,PDF417,Micro QR,Micro PDF,DataMatrix,Aztec Maxicode , hanxin
Decode angle	Pitch angle:±30° Skew angle:±40° Tilt angle:±180°
