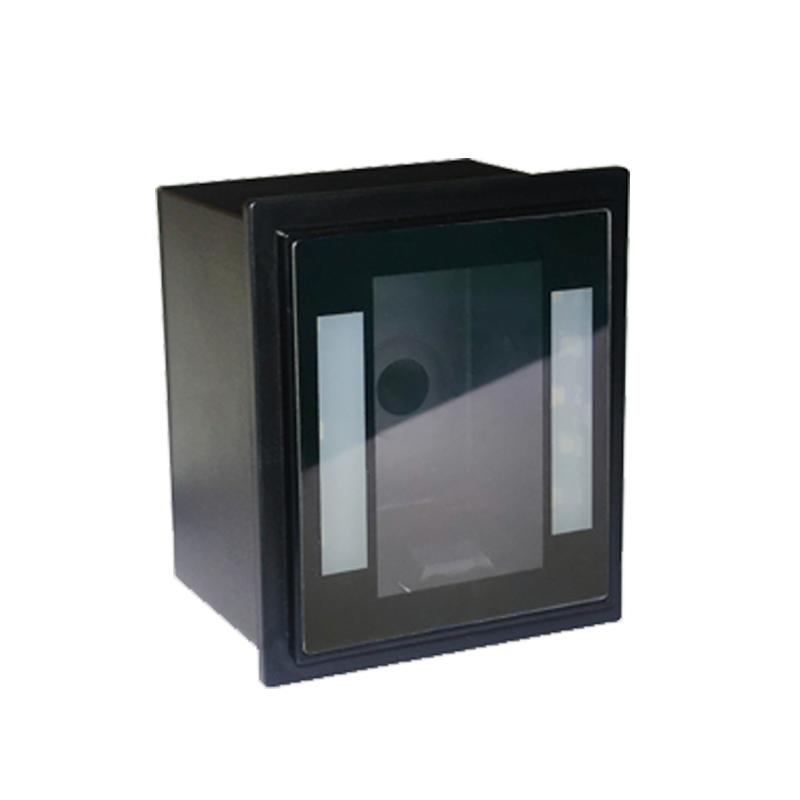

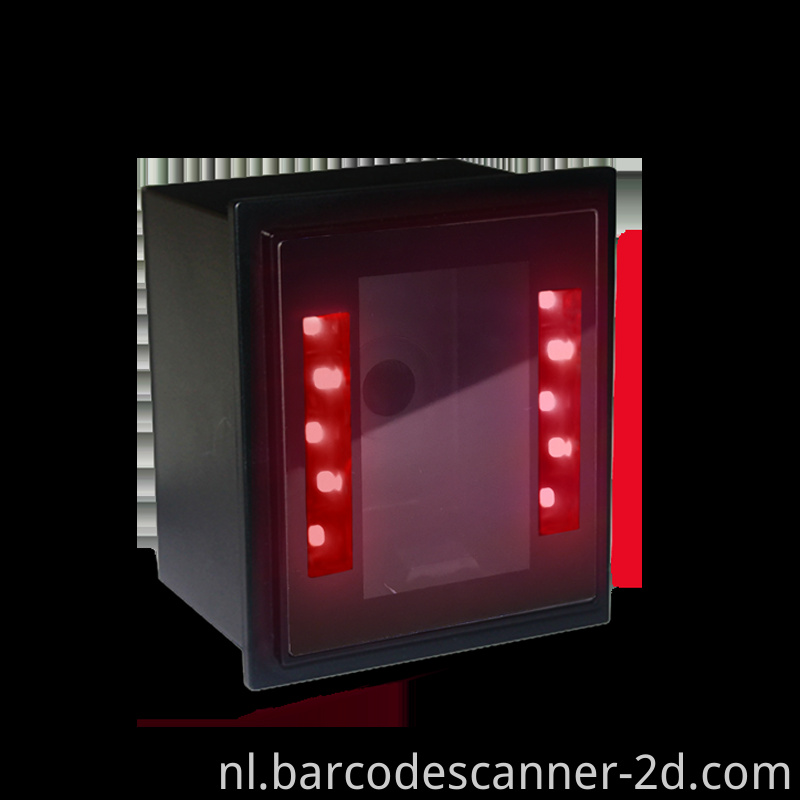

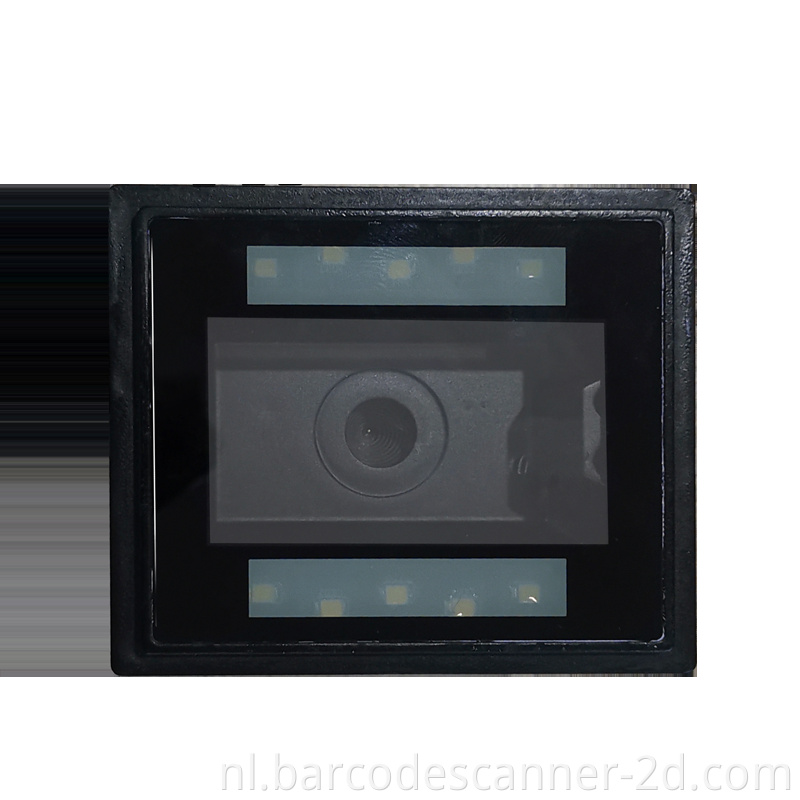

2D Barcode Scanner Module USB -scanner

$281-49 Others

$2450-199 Others

$18≥200Others

betaling Type:	L/C,T/T,D/P,Paypal
Incoterm:	FOB,CIF,EXW,DDP
vervoer:	Ocean,Land,Air,Express,Others
Haven:	guangzhou

Option:

Z11-671

contact opnemen

Beschrijving

Productkenmerken

Verpakking & Levering

Beschrijving

Productkenmerken

Model: Z11-671

merk: Winson

Certificatie: ce, andere

Product Status: Voorraad

Types Van: Streepjescodescanner

Type Scanelement: CCD, CMOS

Kleur Punt: 32 Beetje

Type Interface: USB

Plaats Van Herkomst: China

Garantieperiode (jaren): 1 jaar

Dienst Na Verkoop: Callcenter en online technische ondersteuning

Private Mold: Yes

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 32 Bit

Interface Type: usb, TTL-232

Max Paper Size: N/A

Optical Resolution: 640*480 pix

Scan Speed: 350±50 (scans/second)

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software Development Kit (SDK): NO

Color: White

Naam van product: embedded scan Module

Interface: USB/TTL/RS232

Photo Sensor: CMOS array sensor

Voltage / Current: DC 5V ±5%; Max 140ma

Dimensions (W X D X H): 53.5mm x 36mm x 16mm

Weight: 15g

Field Of View: 74°(H),58°(V)

certificaat: Ce,Rohs

Verpakking & Levering

Verkoopeenheden	:	unit
Pakkettype	:	Brown Box Packing of aangepaste verpakking (onderhandeld)
Afbeeldingsvoorbeeld	:

The file is encrypted. Please fill in the following information to continue accessing it

Beschrijving

product beschrijving

Specificatie

Interface Supported	RS-232/USB HID KEYBOARD/USB VCP
Input Voltage	DC 5V±10%
Current	Max:200mA
Image Sensor	CMOS Array Sensor
Sensor Resolution	1280X800 Pixels
Light Source	Red LED
Scanning Angle	Pitch angle:±60°;Skew angle:±40°;Tilt angle:±180°
Field of View	60°(H),40°(V)
Min Resolution	1D：0.101mm/4mil（PCS 0.9） 2D：0.254mm/10mil（PCS 0.9）
Min .PCS value	〉20% UPC/EAN 13（13mil）
